Description

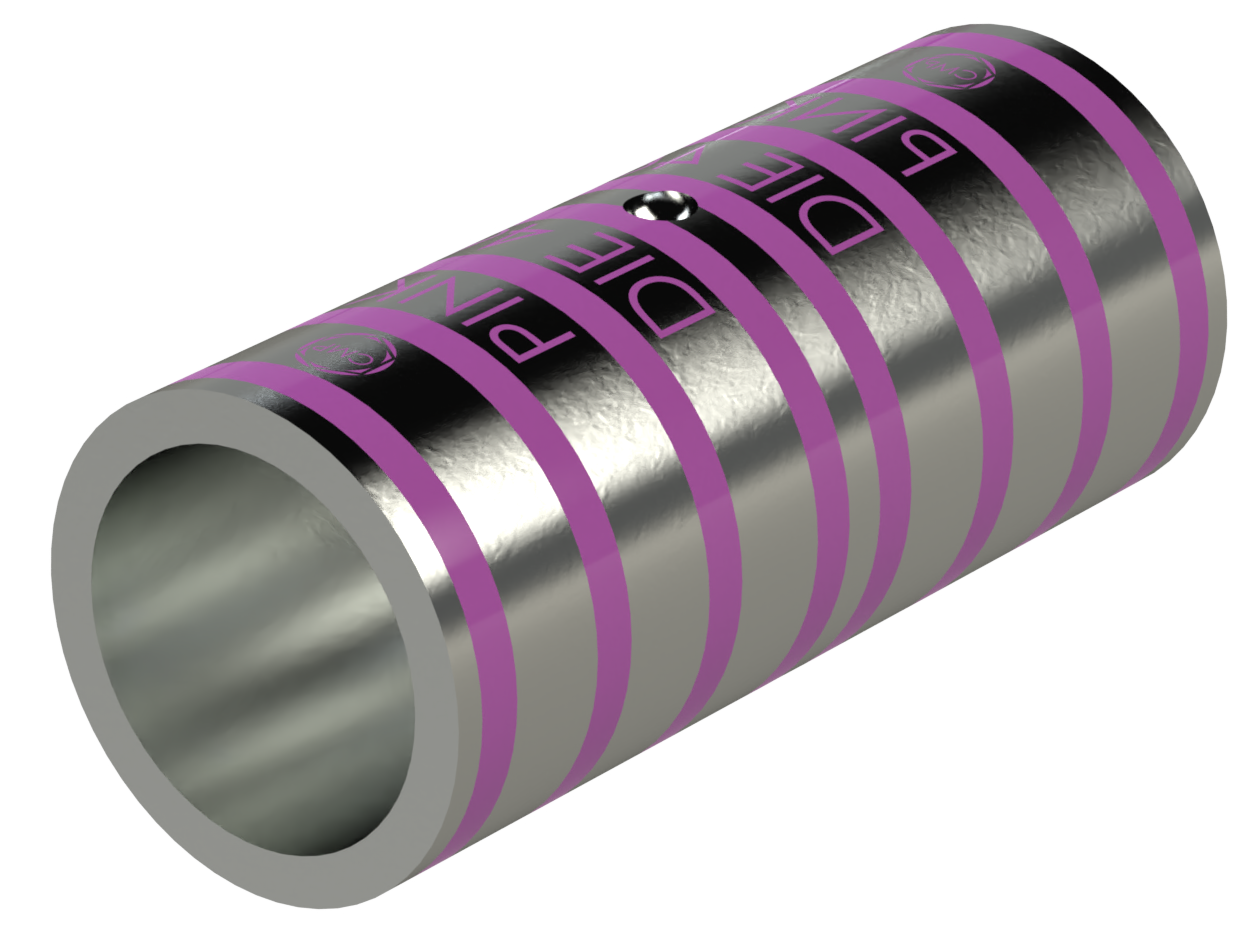

CMP Heavy Duty Imperial Copper Compression Splice Connector Parallel Entry been designed and certified to UL486A for high quality and reliable crimping. Manufactured from high purity copper tube (C110/CW009A), the product dimensions have been selected for the most optimal compression with corresponding conductors. These copper splices are annealed to ensure longevity during operation, reducing risk of fracture. The tin coating ensures corrosion and oxidation resistance for optimal efficiency of the connection.

---

Features

• Third Party Certified to UL 486A
• Manufactured from high purity (99.9%) copper seamless tube (BSEN 13600)
• Annealed and electrolytically tin plated for reliable crimping with oxidisation and corrosion resistance
• Clearly marked and colour coded for easy die selection
• Specific designed CMP crimping die range
• Certification testing carried out using Burndy, Panduit and Greenlee crimping tools
• Bevelled entry to aid conductor insertion
• Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
• Crimping die part numbers match CSA or wire size; refer to CMP compatible die chart for more information

---

Technical Specification

Box Quantity 300 CMP Colour Code PURPLE Conductor Size (AWG/MCM) 4/0 Flex Cable Size (AWG/MCM/kcmil) 3/0 Die Index No. 40 Internal Diameter (ID) 13.9 Mechanical Load IEC 61238 Clause 7 Mechanical Load IEC 61238 Clause 7 Mechanical Load UL 486A-486B 2003N Outer Diameter (OD) 17.5 Overall Length (A) 48.3 Pack Quantity 25 Internal Diameter (ID) - Inches 0.55 Outer Diameter (OD) - Inches 0.69 Overall Length (A) - Inches 1.9

Certification
