ALP1 Cable Lug

ETIM Classification

EC001053

Heavy Duty Aluminium Compression Cable Lug - Parallel Entry Long barrel with 1 Stud Hole - No Inspection Window

Description

These products have been designed and third party certified to UL 486A-486B, for high quality and reliable crimping. Long barrel compression cable lugs enable additional crimps, offering increased electrical and mechanical properties. Manufactured from high conductivity aluminium seamless tubing, these cable lugs are precisely dimensioned to achieve optimal crimping with suitable conductors. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection. Aluminium lug barrels are filled with grease and capped as an extra layer of protection from oxidation. No inspection window as standard to prevent moisture ingress. Standard stud hole sizes are detailed in the dimension table. Custom stud hole dimensions are available on request.

Features

  • Sizes to suit conductors 8 AWG to 600 kcmil
  • Third Party Certified to UL 486A-486B
  • Manufactured from high conductivity aluminium seamless tube
  • Electrolytically tin plated for oxidation and corrosion resistance
  • Colour coded with enhanced marking on the barrel for simple die selection, inspection and traceability
  • CMP crimping die available for optimal crimping
  • Bevelled entry to aid cable insertion
  • Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
  • Crimping die index numbers match wire size; refer to CMP compatible die chart for more information

Additional Information

Certification
cULus Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/085aa78a/67bec66a244c9860a59ae4aa/CULUS-approved.png
CSA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/6f536a89/64f746a8c65ab100122ccd6a/csalogo.jpg
Technical Specification
Barrel Type Standard
Duty Type Heavy Duty
Entry Type Parallel
Lugs Material Tin Plated Aluminium
Number Of Stud Holes 1
Palm Angle Straight
Temperature Rating Up to 90 Degrees Celsius

Downloads

Certificates

Product Selector

1

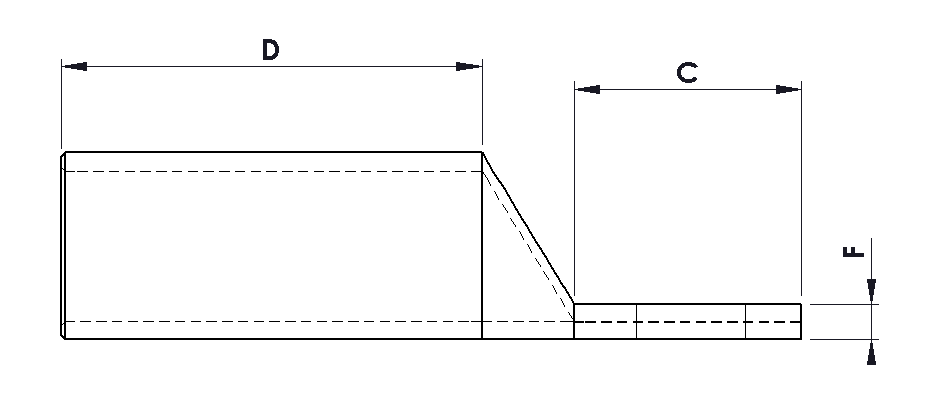

Part Number Cable Size (AWG/MCM/kcmil) Flex Cable Size (AWG/MCM/kcmil) Hole Stud Size Die Index No. Internal Diameter (ID) Internal Diameter (ID) - Inches Overall Length (A) Overall Length (A) - Inches Palm Width (B) Palm Width (B) - Inches Palm Length (C) Palm Length (C) - Inches Barrel Length (D) Barrel Length (D) - Inches Stud Hole Distance (E) Palm Thickness (F) Palm Thickness (F) - Inches Stud Hole Distance (E) - Inches Pack Qty
8ALP1516 8 8 5/16' 08 4.5 0.18 39.6 1.56 12.7 0.5 19.5 0.77 16.5 0.65 7.8 3.3 0.13 0.31 100
8ALP138 8 8 3/8 08 4.5 0.18 39.6 1.56 12.7 0.5 20.5 0.81 16.5 0.65 7.8 3.3 0.13 0.31 100
8ALP114 8 8 1/4 08 4.5 0.18 39.6 1.56 12.7 0.5 19.5 0.77 16.5 0.65 7.8 3.3 0.13 0.31 100
6ALP1516 6 6 5/16' 06 5.1 0.2 51 2.01 14.4 0.57 22.3 0.88 21.8 0.86 9.6 2.5 0.1 0.38 100
6ALP138 6 6 3/8 06 5.1 0.2 52 2.05 16.5 0.65 23.3 0.92 21.8 0.86 9.6 2.0 0.08 0.38 100
6ALP114 6 6 1/4 06 5.1 0.2 51 2.01 14.4 0.57 22.3 0.88 21.8 0.86 9.6 2.5 0.1 0.38 100
4ALP1516 4 - 5/16' 04 6.4 0.25 58.6 2.31 14.4 0.57 22.3 0.88 27.9 1.1 9.6 4.8 0.19 0.38 50
4ALP138 4 - 3/8 04 6.4 0.25 60.7 2.39 16.5 0.65 22.3 0.88 27.9 1.1 9.6 3.8 0.15 0.38 50
4ALP114 4 - 1/4 04 6.4 0.25 58.6 2.31 14.4 0.57 22.3 0.88 27.9 1.1 9.6 4.8 0.19 0.38 50
2ALP1516 2 4 5/16' 02 7.9 0.31 63.5 2.5 18 0.71 22.3 0.88 30.5 1.2 9.6 5.5 0.22 0.38 50
2ALP138 2 4 3/8 02 7.9 0.31 63.5 2.5 18 0.71 22.3 0.88 30.5 1.2 9.6 5.5 0.22 0.38 50
2ALP114 2 4 1/4 02 7.9 0.31 63.5 2.5 18 0.71 22.3 0.88 30.5 1.2 9.6 5.5 0.22 0.38 50
2ALP112 2 4 1/2 02 7.9 0.31 63.5 2.5 18 0.71 22.3 0.88 30.5 1.2 9.6 5.5 0.22 0.38 50
1ALP138 1 2 3/8 01 8.9 0.35 63.5 2.5 18.5 0.73 22.3 0.88 30.5 1.2 9.6 4.5 0.18 0.38 25
1ALP114 1 2 1/4 01 8.9 0.35 63.5 2.5 18.5 0.73 22.3 0.88 30.5 1.2 9.6 4.5 0.18 0.38 25
1ALP112 1 2 1/2 01 8.9 0.35 63.5 2.5 18.5 0.73 22.3 0.88 30.5 1.2 9.6 4.5 0.18 0.38 25
1ALP1516 1 2 5/16' 01 8.9 0.35 63.5 2.5 18.5 0.73 22.3 0.88 30.5 1.2 9.6 4.5 0.18 0.38 25
10ALP1516 1/0 1 5/16' 10 9.9 0.39 71.3 2.81 21.5 0.85 23.6 0.93 30.5 1.2 9.6 6.1 0.24 0.38 25
10ALP138 1/0 1 3/8 10 9.9 0.39 71.3 2.81 21.5 0.85 23.6 0.93 30.5 1.2 9.6 6.1 0.24 0.38 25
10ALP114 1/0 1 1/4 10 9.9 0.39 71.3 2.81 21.5 0.85 23.6 0.93 30.5 1.2 9.6 6.1 0.24 0.38 25
10ALP112 1/0 1 1/2 10 9.9 0.39 71.3 2.81 21.5 0.85 28.4 1.12 30.5 1.2 9.6 6.1 0.24 0.38 25
20ALP1516 2/0 1/0 5/16' 20 11.2 0.44 71.3 2.81 23.8 0.94 28.4 1.12 33 1.3 12.7 6.1 0.24 0.5 15
20ALP138 2/0 1/0 3/8 20 11.2 0.44 71.3 2.81 23.8 0.94 28.4 1.12 33 1.3 12.7 6.1 0.24 0.5 15
20ALP114 2/0 1/0 1/4 20 11.2 0.44 71.3 2.81 23.8 0.94 28.4 1.12 33 1.3 12.7 6.1 0.24 0.5 15
20ALP112 2/0 1/0 1/2 20 11.2 0.44 71.3 2.81 23.8 0.94 28.4 1.12 33 1.3 12.7 6.1 0.24 0.5 15
30ALP1516 3/0 2/0 5/16' 30 12.2 0.48 76.2 3 26.1 1.03 28.4 1.12 35.6 1.4 12.7 7.1 0.28 0.5 15
30ALP138 3/0 2/0 3/8 30 12.2 0.48 76.2 3 26.1 1.03 28.4 1.12 35.6 1.4 12.7 7.1 0.28 0.5 15
30ALP114 3/0 2/0 1/4 30 12.2 0.48 76.2 3 26.1 1.03 28.4 1.12 35.6 1.4 12.7 7.1 0.28 0.5 15
30ALP112 3/0 2/0 1/2 30 12.2 0.48 76.2 3 26.1 1.03 28.4 1.12 35.6 1.4 12.7 7.1 0.28 0.5 15
40ALP158 4/0 3/0 5/8 40 14 0.55 87.1 3.43 29.2 1.15 33.2 1.31 35.6 1.4 14.2 7.3 0.29 0.56 15
40ALP1516 4/0 3/0 5/16' 40 14 0.55 87.1 3.43 29.2 1.15 33.2 1.31 35.6 1.4 14.2 7.3 0.29 0.56 15
40ALP138 4/0 3/0 3/8 40 14 0.55 87.1 3.43 29.2 1.15 33.2 1.31 35.6 1.4 14.2 7.3 0.29 0.56 15
40ALP114 4/0 3/0 1/4 40 14 0.55 87.1 3.43 29.2 1.15 33.2 1.31 36.6 1.44 14.2 7.3 0.29 0.56 15
40ALP112 4/0 3/0 1/2 40 14 0.55 87.1 3.43 29.2 1.15 33.2 1.31 35.6 1.4 14.2 7.3 0.29 0.56 15
250ALP1516 250 4/0 5/16' 250 15 0.59 88.9 3.5 32 1.26 33.2 1.31 38.1 1.5 16 8.1 0.32 0.63 10
250ALP138 250 4/0 3/8 250 15 0.59 88.9 3.5 32 1.26 33.2 1.31 38.1 1.5 16 8.1 0.32 0.63 10
250ALP112 250 4/0 1/2 250 15 0.59 88.9 3.5 32 1.26 33.2 1.31 38.1 1.5 16 8.1 0.32 0.63 10
300ALP1516 300 250 G,H 5/16' 300 16.5 0.65 101.6 4 34.8 1.37 38.1 1.5 40.6 1.6 16 8.8 0.35 0.63 10
300ALP138 300 250 G,H 3/8 300 16.5 0.65 101.6 4 34.8 1.37 38.1 1.5 40.6 1.6 16 8.8 0.35 0.63 10
300ALP112 300 250 G,H 1/2 300 16.5 0.65 101.6 4 34.8 1.37 38.1 1.5 40.6 1.6 16 8.8 0.35 0.63 10
350ALP138 350 250 G,H,I,K,M 262 DLO 3/8 350 18.3 0.72 107.9 4.25 38.6 1.52 38.1 1.5 48.3 1.9 17.5 9.9 0.39 0.69 5
350ALP112 350 250 G,H,I,K,M 262 DLO 1/2 350 18.3 0.72 107.9 4.25 38.6 1.52 38.1 1.5 48.3 1.9 17.5 9.9 0.39 0.69 5
400ALP138 400 300 G,H,I,K,M 313 DLO 3/8 400 19.3 0.76 118.8 4.68 40.8 1.61 38.1 1.5 58.4 2.3 17.5 10.6 0.42 0.69 5
400ALP112 400 300 G,H,I,K,M 313 DLO 1/2 400 19.3 0.76 118.8 4.68 40.8 1.61 38.1 1.5 58.4 2.3 17.5 10.6 0.42 0.69 5
500ALP158 500 350 G,H,I,K,M 373 DLO 5/8 500 21.3 0.84 120.6 4.75 45.4 1.79 38.1 1.5 63.5 2.5 19 11.9 0.47 0.75 5
500ALP138 500 350 G,H,I,K,M 373 DLO 3/8 500 21.3 0.84 120.6 4.75 45.4 1.79 38.1 1.5 63.5 2.5 19 11.9 0.47 0.75 5
500ALP112 500 350 G,H,I,K,M 373 DLO 1/2 500 21.3 0.84 120.6 4.75 45.4 1.79 38.1 1.5 63.5 2.5 19 11.9 0.47 0.75 5
600ALP158 600 400 G,H,I,K,M 444 DLO 5/8 600 23.4 0.92 130 5.12 49.7 1.96 47.5 1.87 66 2.6 23.8 12.9 0.51 0.94 1
600ALP112 600 400 G,H,I,K,M 444 DLO 1/2 600 23.4 0.92 130 5.12 49.7 1.96 47.5 1.87 66 2.6 23.8 12.9 0.51 0.94 1
