CDNP1 Cable Lug

ETIM Classification

EC001051

Copper Compression Cable Lug - 1 Stud Hole - Designed to DIN 46235

Description

These products have been designed to match the dimensions of DIN 46235 for high quality and reliable crimping. Manufactured from high purity, oxygen-free, seamless copper tube (C110/CW009A), these cable lugs are precisely dimensioned to achieve optimal crimping with suitable conductors. The lugs are annealed to enhance durability, minimising risk of fracture between the palm and barrel. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection.

Features

  • Third Party Certified to DIN 46235
  • Available in sizes 6 mm² up to 1,000 mm²
  • Manufactured from high purity (99.9%) copper seamless tube (BS EN 13600)
  • Annealed and electrolytically tin plated for reliable crimping, with oxidation and corrosion resistance
  • Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
  • Compatible with all suitably sized DIN 48083 crimping dies

Additional Information

Certification
Technical Specification
Barrel Type Long
Entry Type Parallel
Lugs Material Tin Plated Copper
Number Of Stud Holes 1
Palm Angle Straight
Temperature Rating Up to 90 Degrees Celsius

Downloads

Certificates

Product Selector

1

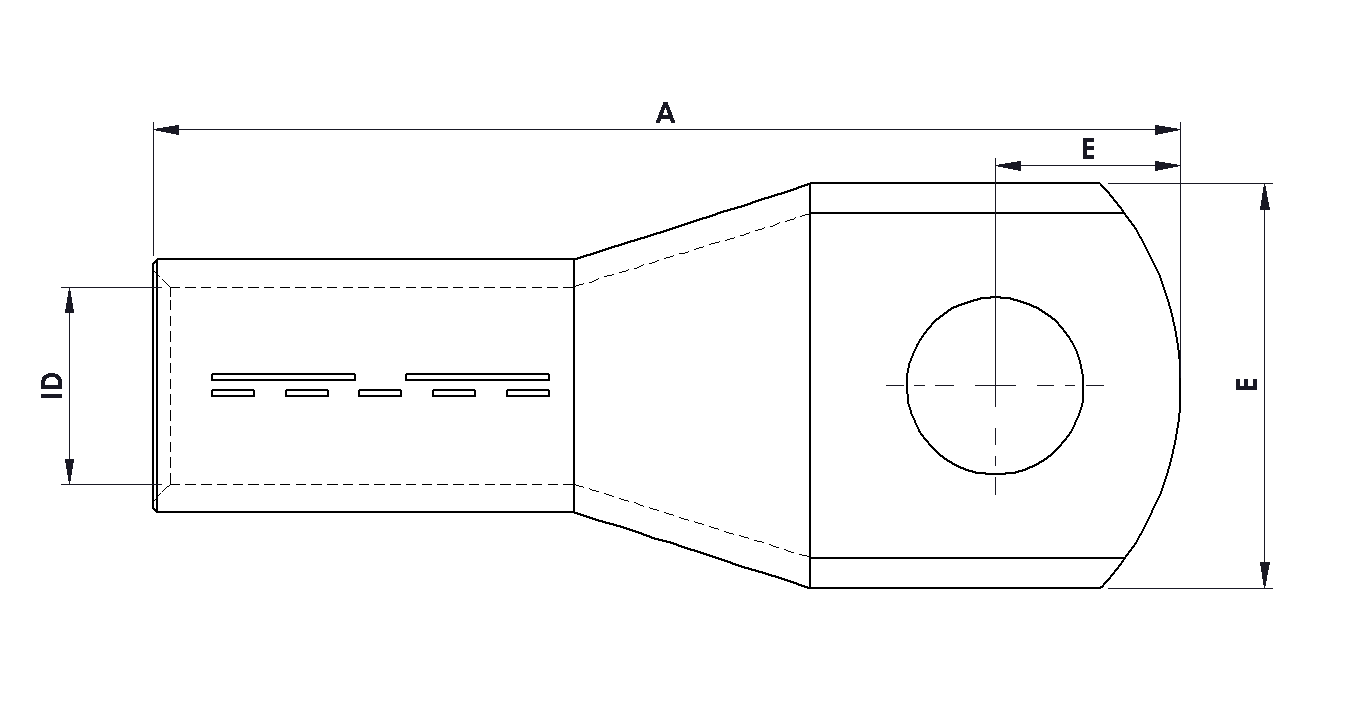

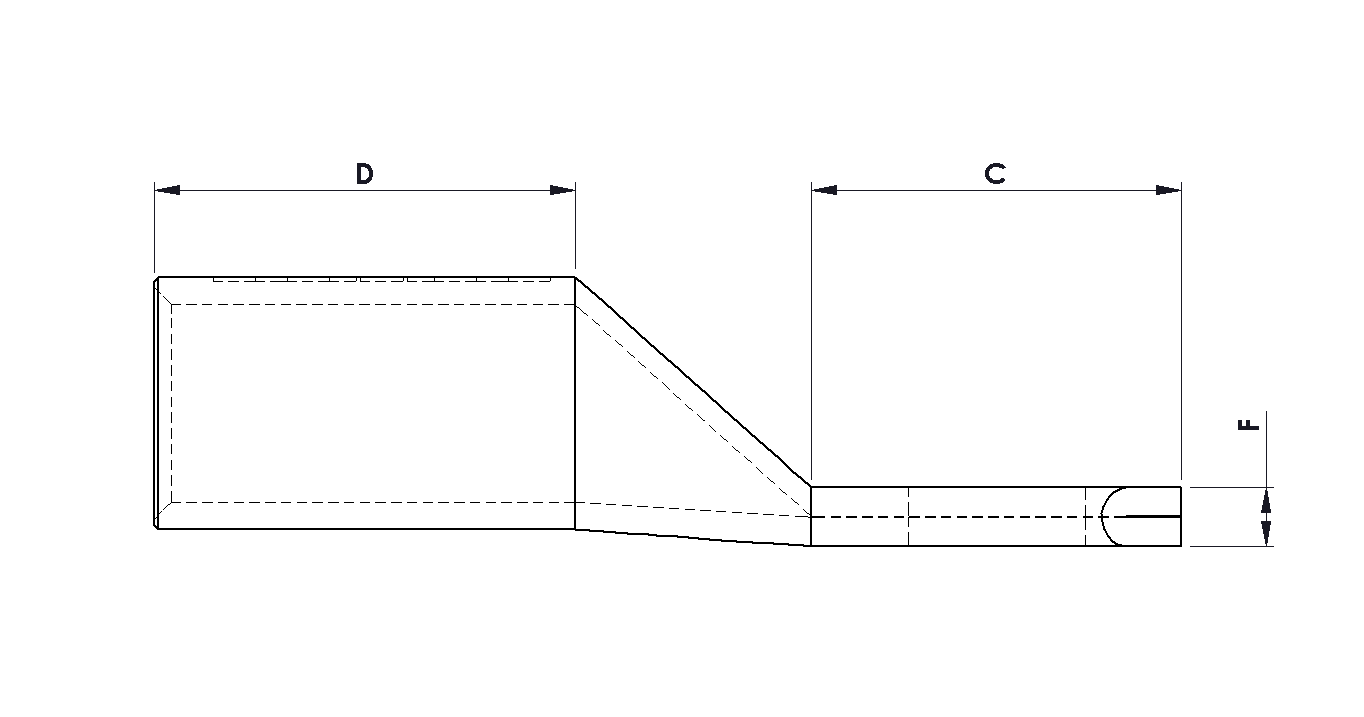

Part Number Cable Size (mm²) Hole Stud Size Die Index No. Internal Diameter (ID) Overall Length (A) Palm Width (B) Palm Length (C) Barrel Length (D) Stud Hole Distance (E) Palm Thickness (F) Pack Qty
006CDNP105 6 M5 6 3.8 33 8.5 15 10 9 1.5 100
006CDNP106 6 M6 6 3.8 34.5 8.5 18.5 10 10.5 1.5 100
010CDNP105 10 M5 7 4.5 36 9 15 10 9 1.5 100
010CDNP106 10 M6 7 4.5 37.5 9 18.5 10 10.5 1.5 100
016CDNP106 16 M6 8 5.5 46.5 13 18.5 20 10.5 2.5 100
016CDNP108 16 M8 8 5.5 49 13 23 20 13 2.5 100
016CDNP110 16 M10 8 5.5 51 17 27 20 15 2.5 100
025CDNP106 25 M6 10 7 48.5 14 18.5 20 10.5 3.0 100
025CDNP108 25 M8 10 7 51 16 23 20 13 3.0 100
025CDNP110 25 M10 10 7 53 17 27 20 15 3.0 100
025CDNP112 25 M12 10 7 54 19 29 20 16 3.0 100
035CDNP108 35 M8 12 8.2 55 17 23 20 13 2.5 50
035CDNP110 35 M10 12 8.2 57 19 27 20 15 2.5 50
035CDNP112 35 M12 12 8.2 58 21 29 20 16 2.5 50
050CDNP108 50 M8 14 10 65 20 23 28 13 4.0 25
050CDNP110 50 M10 14 10 67 22 27 28 15 4.0 25
050CDNP112 50 M12 14 10 68 24 29 28 16 4.0 25
050CDNP116 50 M16 14 10 71 28 35 28 19 4.0 25
070CDNP108 70 M8 16 11.5 68 24 23 28 13 4.5 25
070CDNP110 70 M10 16 11.5 70 24 27 28 15 4.5 25
070CDNP112 70 M12 16 11.5 71 24 29 28 16 4.5 25
070CDNP116 70 M16 16 11.5 74 30 35 28 19 4.5 25
095CDNP110 95 M10 18 13.5 80 28 27 35 15 5.0 15
095CDNP112 95 M12 18 13.5 81 28 29 35 16 5.0 15
095CDNP116 95 M16 18 13.5 84 32 35 35 19 5.0 15
120CDNP110 120 M10 20 15.5 85 32 27 35 15 5.5 15
120CDNP112 120 M12 20 15.5 86 32 29 35 16 5.5 15
120CDNP116 120 M16 20 15.5 89 32 35 35 19 5.5 15
120CDNP120 120 M20 20 15.5 92 38 42 35 22 5.5 15
150CDNP110 150 M10 22 17 93 34 27 35 15 6.0 10
150CDNP112 150 M12 22 17 94 34 29 35 16 6.0 10
150CDNP116 150 M16 22 17 97 34 35 35 19 6.0 10
150CDNP120 150 M20 22 17 100 40 42 35 22 6.0 10
185CDNP110 185 M10 25 19 97 37 27 40 15 6.0 10
185CDNP112 185 M12 25 19 98 37 29 40 16 6.0 10
185CDNP116 185 M16 25 19 101 37 35 40 19 6.0 10
185CDNP120 185 M20 25 19 104 40 42 40 22 6.0 10
240CDNP112 240 M12 28 21.5 108 42 29 40 16 6.5 5
240CDNP116 240 M16 28 21.5 111 42 35 40 19 6.5 5
240CDNP120 240 M20 28 21.5 114 45 42 40 22 6.5 5
300CDNP116 300 M16 32 24.5 119 48 35 50 19 7.0 5
300CDNP120 300 M20 32 24.5 122 48 42 50 22 7.0 5
400CDNP116 400 M16 38 27.5 140 55 41 70 25 10.0 5
400CDNP120 400 M20 38 27.5 140 55 45 70 25 10.0 5
500CDNP120 500 M20 42 31 150 60 45 70 25 10.0 1
625CDNP120 625 M20 44 34.5 160 60 45 80 25 10.0 1
800CDNP120 800 M20 52 40 190 75 45 100 25 12.0 1
1000CDNP120 1000 M20 58 44 190 85 45 100 25 14.0 1
1
