CHDF1-NX Cable Lug

ETIM Classification

EC001051

Heavy Duty Metric Copper Compression Cable Lug - Flared Entry Standard Barrel with 1 Stud Hole - Narrow Palm - No Inspection Window

Description

These flared entry products have been designed and third party certified to IEC 61238-1 Class A, for high quality and reliable crimping. Narrow palm cable lugs have a contained palm width to ensure a connection can be made in space constrained installations. Manufactured from high purity, oxygen-free, seamless copper tube (C110/CW009A), these cable lugs are precisely dimensioned to achieve optimal crimping with suitable conductors. The lugs are annealed to enhance durability, minimising risk of fracture between the palm and barrel. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection. No inspection window to prevent moisture ingress for outdoor applications; inspection window can be added as an option - see data sheet CHDF1-N Standard stud hole sizes are detailed in the dimension table. Custom stud hole dimensions are available on request.

Features

  • Sizes to suit conductors as per EN 60228 cables; 35 mm² up to 300 mm²
  • Narrow palm width for space constrained connections
  • Third Party Certified to IEC 61238-1 Class A
  • Manufactured from high purity (99.9%) copper seamless tube
  • Annealed and electrolytically tin plated for reliable crimping, with oxidation and corrosion resistance
  • Enhanced marking on the barrel for simple die selection, inspection and traceability
  • CMP crimping die available for optimal crimping
  • Flared entry to barrel for ease of conductor insertion; beneficial for class 5 and 6 conductors
  • Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
  • Crimping die index numbers match CSA or wire size; refer to CMP compatible die chart for more information

Additional Information

Certification
IEC Certificate Number 12345
IEC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/6c9e4738/6597f72f43589004230000e4/ieclogo.jpg
Technical Specification
Barrel Type Standard
Duty Type Heavy Duty
Entry Type Flared
Lugs Material Tin Plated Copper
Max Voltage of Application 36 kV
Number Of Stud Holes 1
Palm Angle Straight
Temperature Rating Up to 90˚C

Downloads

Certificates

Product Selector

1

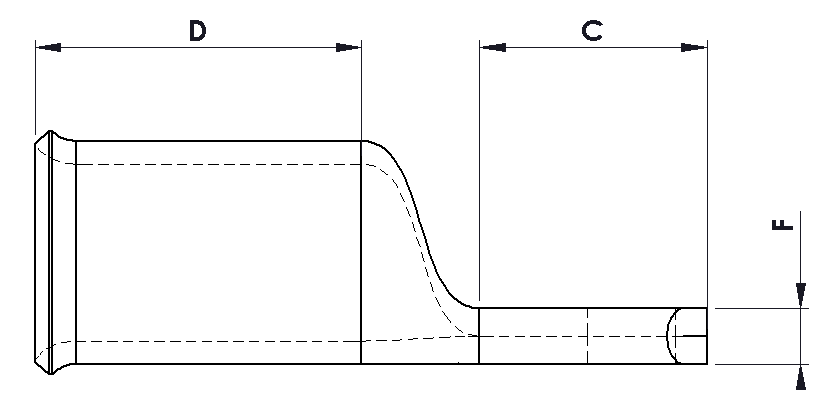

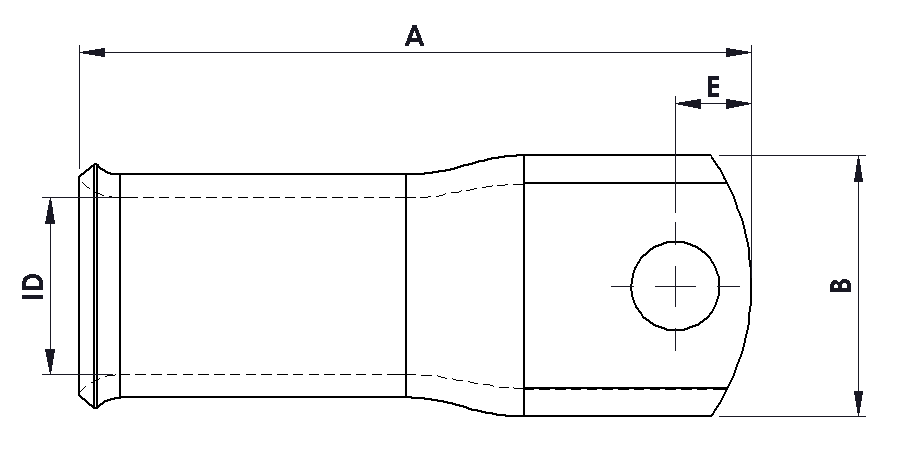

Part Number Cable Size (mm²) Hole Stud Size Die Index No. Internal Diameter (ID) Overall Length (A) Palm Width (B) Palm Length (C) Barrel Length (D) Stud Hole Distance (E) Palm Thickness (F) Pack Qty
035CHDF106NX 35 M6 35H 8.2 37 11.5 15 17 7 3.1 100
050CHDF106NX 50 M6 50H 9.5 39 15 15 18 7 3.3 50
050CHDF108NX 50 M8 50H 9.5 39 15 15 18 7 3.3 50
050CHDF110NX 50 M10 50H 9.5 45 18 21 18 9 2.7 50
070CHDF106NX 70 M6 70H 11.2 42 17 15 20 7 4.2 50
070CHDF108NX 70 M8 70H 11.2 42 17 15 20 7 4.2 50
070CHDF110NX 70 M10 70H 11.2 48 19 21 20 9 3.8 50
095CHDF106NX 95 M6 95H 13.5 48 17 19 22 7 5.0 25
095CHDF108NX 95 M8 95H 13.5 52 19 21 22 8 5.0 25
120CHDF108NX 120 M8 120H 15 57 19 23 24 9 6.3 25
120CHDF110NX 120 M10 120H 15 57 19 23 24 9 6.3 25
120CHDF112NX 120 M12 120H 15 57 19 23 24 9 6.3 25
150CHDF108NX 150 M8 150H 16.5 67 19 27 29 9 7.3 25
150CHDF110NX 150 M10 150H 16.5 67 19 27 29 9 7.3 25
150CHDF112NX 150 M12 150H 16.5 67 19 27 29 12 7.3 25
185CHDF110NX 185 M10 185H 18.5 73 24.5 27 34 9 6.7 15
185CHDF112NX 185 M12 185H 18.5 74 24.5 28 34 12 6.7 15
240CHDF110NX 240 M10 240H 21 80 31 27 39 9 6.6 15
240CHDF112NX 240 M12 240H 21 81 31 28 39 12 6.6 15
300CHDF110NX 300 M10 300H 23.5 92 31 32 45 12 8.8 10
300CHDF112NX 300 M12 300H 23.5 92 31 32 45 12 8.8 10
