CHDF2-X Cable Lug

ETIM Classification

EC001051

Heavy Duty Metric Copper Compression Cable Lug - Flared Entry Standard Barrel with 2 Stud Holes - No Inspection Window

Description

These flared entry products have been designed and third party certified to IEC 61238-1 Class A, for high quality and reliable crimping. Manufactured from high purity, oxygen-free, seamless copper tube (C110/CW009A), these cable lugs are precisely dimensioned to achieve optimal crimping with suitable conductors. The lugs are annealed to enhance durability, minimising risk of fracture between the palm and barrel. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection. No inspection window to prevent moisture ingress for outdoor applications; inspection window can be added as an option - see data sheet CHDF2. The centres of the two stud holes are detailed in the dimensional table. Custom stud hole dimensions are available on request.

Features

  • Stud hole centre dimensions standardised at 44.5 mm; bespoke pitch available on request
  • Sizes to suit conductors as per EN 60228 cables; 25 mm² up to 630 mm²
  • Third Party Certified to IEC 61238-1 Class A
  • Manufactured from high purity (99.9%) copper seamless tube (BS EN 13600)
  • Annealed and electrolytically tin plated for reliable crimping, with oxidation and corrosion resistance
  • No inspection window to enhance ingress protection for outdoor applications
  • Enhanced marking on the barrel for simple die selection, inspection and traceability
  • CMP crimping die available for optimal crimping
  • Flared entry to barrel for ease of conductor insertion; beneficial for class 5 and 6 conductors
  • Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
  • Crimping die index numbers match CSA or wire size; refer to CMP compatible die chart for more information

Additional Information

Certification
IEC Certificate Number 12345
IEC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/6c9e4738/6597f72f43589004230000e4/ieclogo.jpg
Technical Specification
Barrel Type Standard
Duty Type Heavy Duty
Entry Type Flared
Lugs Material Tin Plated Copper
Max Voltage of Application 36 kV
Number Of Stud Holes 2
Palm Angle Straight
Temperature Rating Up to 90 Degrees Celsius

Downloads

Certificates

Product Selector

1

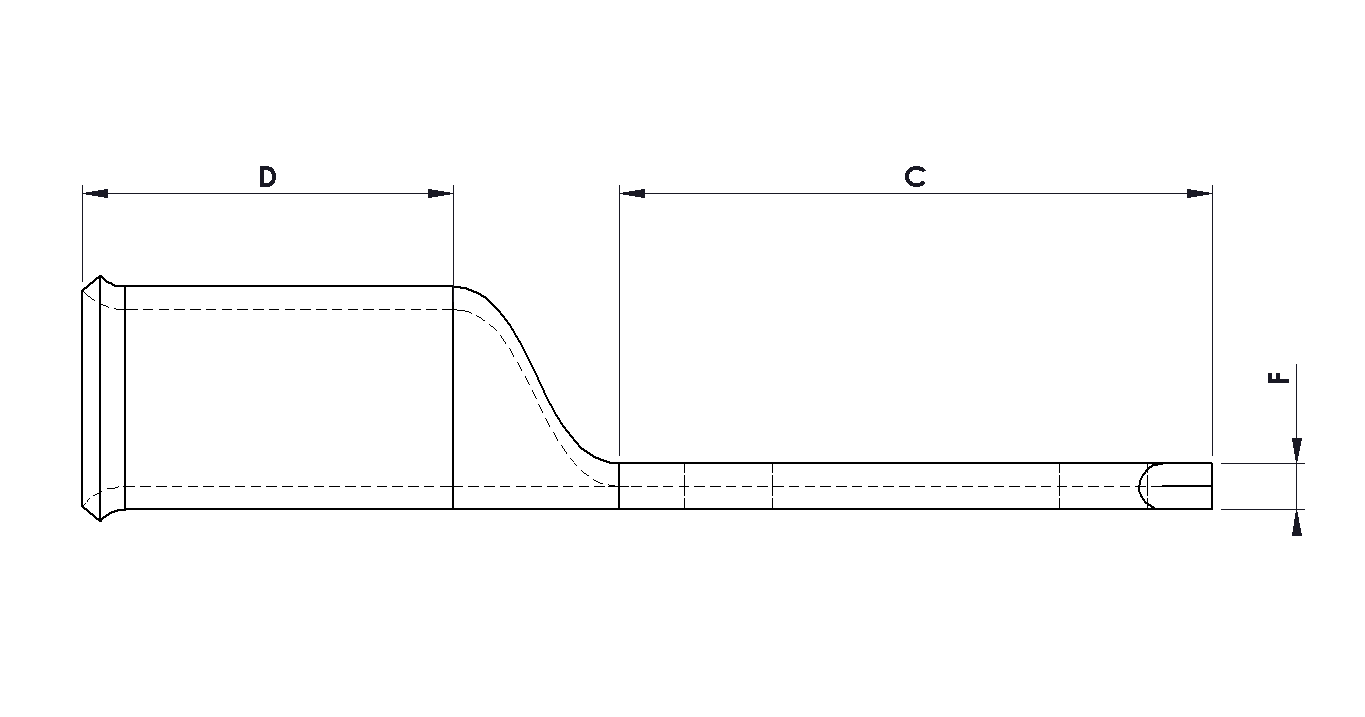

Part Number Cable Size (mm²) Hole Stud Size Die Index No. Internal Diameter (ID) Overall Length (A) Palm Width (B) Palm Length (C) Barrel Length (D) Stud Hole Distance (E) Palm Thickness (F) Stud Hole Spacing (G) Pack Qty
025CHDF208X 25 M8 25H 6.8 90.2 13 67.5 14 11.5 1.9 44.5 100
025CHDF210X 25 M10 25H 6.8 93.2 14.5 70.5 14 13 1.7 44.5 100
025CHDF212X 25 M12 25H 6.8 97.2 16.5 74.5 14 15 1.5 44.5 100
035CHDF208X 35 M8 35H 8.2 90.9 15 67.5 14 11.5 2.4 44.5 100
035CHDF210X 35 M10 35H 8.2 93.9 16 70.5 14 13 2.2 44.5 100
035CHDF212X 35 M12 35H 8.2 99.4 21 74.5 15.5 15 1.7 44.5 100
050CHDF208X 50 M8 50H 9.5 94.9 18 67.5 18 11.5 2.8 44.5 50
050CHDF210X 50 M10 50H 9.5 97.9 18 70.5 18 13 2.8 44.5 50
050CHDF212X 50 M12 50H 9.5 101.9 21 74.5 18 15 2.4 44.5 50
070CHDF208X 70 M8 70H 11.2 98.8 21 67.5 20 11.5 3.4 44.5 50
070CHDF210X 70 M10 70H 11.2 101.8 21 70.5 20 13 3.4 44.5 50
070CHDF212X 70 M12 70H 11.2 105.8 21 74.5 20 15 3.4 44.5 50
070CHDF214X 70 M14 70H 11.2 107.8 25 76.5 20 16 2.8 44.5 50
095CHDF210X 95 M10 95H 13.5 105.1 25 70.5 22 13 3.8 44.5 20
095CHDF212X 95 M12 95H 13.5 109 25 74.5 22 15 3.8 44.5 20
095CHDF214X 95 M14 95H 13.5 111 26 76.5 22 16 3.6 44.5 20
095CHDF216X 95 M16 95H 13.5 115 26 80.5 22 18 3.6 44.5 20
120CHDF210X 120 M10 120H 15 112 28 70.5 24 13 4.2 44.5 20
120CHDF212X 120 M12 120H 15 113.5 28 74.5 24 15 4.2 44.5 20
120CHDF214X 120 M14 120H 15 115.5 28 76.5 24 16 4.2 44.5 20
120CHDF216X 120 M16 120H 15 119.5 28 80.5 24 18 4.2 44.5 20
150CHDF210X 150 M10 150H 16.5 115 30.5 70.5 29 13 4.6 44.5 15
150CHDF212X 150 M12 150H 16.5 119 30.5 74.5 29 15 4.6 44.5 15
150CHDF214X 150 M14 150H 16.5 121 30.5 76.5 29 16 4.6 44.5 15
150CHDF216X 150 M16 150H 16.5 125.6 30.5 80.5 29 18 4.6 44.5 15
185CHDF210X 185 M10 185H 18.5 121 34 70.5 34 13 4.9 44.5 15
185CHDF212X 185 M12 185H 18.5 125 34 74.5 34 15 4.9 44.5 15
185CHDF214X 185 M14 185H 18.5 126.5 34 76.5 34 16 4.9 44.5 15
185CHDF216X 185 M16 185H 18.5 130.9 34 80.5 34 18 4.9 44.5 15
240CHDF210X 240 M10 240H 21 129.2 38 70.5 39 13 5.4 44.5 5
240CHDF212X 240 M12 240H 21 133.9 38 74.5 39 15 5.4 44.5 5
240CHDF214X 240 M14 240H 21 135.9 38 76.5 39 16 5.4 44.5 5
240CHDF216X 240 M16 240H 21 139.9 38 80.5 39 18 5.4 44.5 5
300CHDF210X 300 M10 300H 23.5 136.9 43 70.5 44 13 6.4 44.5 5
300CHDF212X 300 M12 300H 23.5 140.8 43 74.5 44 15 6.4 44.5 5
300CHDF216X 300 M16 300H 23.5 146.8 43 80.5 44 18 6.4 44.5 5
300CHDF214X 300 M14 300H 23.5 142.8 43 76.5 44 16 6.4 44.5 5
400CHDF212X 400 M12 400H 26.8 146.4 50 74.5 47 15 7.7 44.5 5
400CHDF214X 400 M14 400H 26.8 148.4 50 76.5 47 16 7.7 44.5 5
400CHDF216X 400 M16 400H 26.8 152.4 50 80.5 47 18 7.7 44.5 5
500CHDF212X 500 M12 500H 30 160.8 55.5 80.5 52 18 8.8 44.5 1
500CHDF214X 500 M14 500H 30 160.8 55.5 80.5 52 18 8.8 44.5 1
500CHDF216X 500 M16 500H 30 160.8 55.5 80.5 52 18 8.8 44.5 1
630CHDF212X 630 M12 630H 35 170.6 64.5 80.5 59 18 9.7 44.5 1
630CHDF216X 630 M16 630H 35 170.6 64.5 80.5 59 18 9.7 44.5 1
