CHDP1 Cable Lug

ETIM Classification

EC001051

Heavy Duty Metric Copper Compression Cable Lug - Parallel Entry Standard Barrel with 1 Stud Hole - Inspection Window

Description

These products have been designed and third party certified to IEC 61238-1 Class A, for high quality and reliable crimping. Manufactured from high purity, oxygen-free, seamless copper tube (C110/CW009A), these cable lugs are precisely dimensioned to achieve optimal crimping with suitable conductors. The lugs are annealed to enhance durability, minimising risk of fracture between the palm and barrel. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection. There is a large inspection window to visually inspect conductor insertion; the inspection window can be removed as an option by adding suffix "X" - Example: 300CHDP112X. Standard stud hole sizes are detailed in the dimension table. Custom stud hole dimensions are available on request. Blank palms available on request; please contact CMP for more information.

Features

Sizes to suit conductors as per EN 60228 cables; 1.5 mm² up to 1,000 mm²
Third Party Certified to IEC 61238-1 Class A
Manufactured from high purity (99.9%) copper seamless tube (BS EN 13600)
Annealed and electrolytically tin plated for reliable crimping, with oxidation and corrosion resistance
Enhanced marking on the barrel for simple die selection, inspection and traceability
CMP crimping die available for optimal crimping
Bevelled entry to aid conductor insertion
Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
Crimping die index numbers match CSA or wire size; refer to CMP compatible die chart for more information

Additional Information

Certificates

Product Selector

Refine by part number

Conductor Material
Connection Type
Entry Type
Palm Angle
Barrel Type
Conductor Size
Hole/Stud size

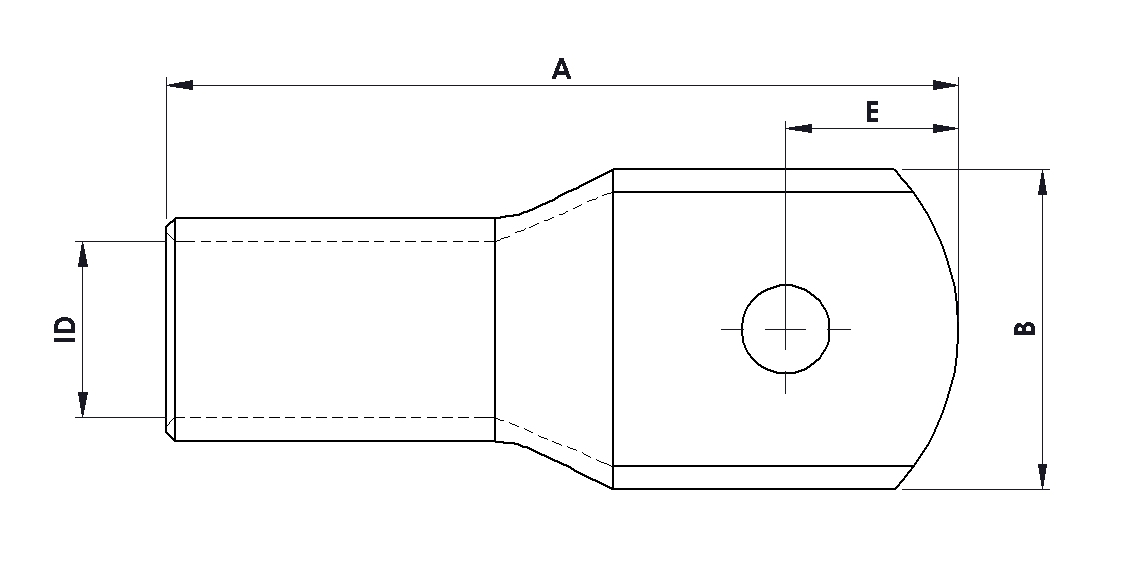

	Part Number	Cable Size (mm²)	Hole Stud Size	Die Index No.	Internal Diameter (ID)	Overall Length (A)	Palm Width (B)	Palm Length (C)	Barrel Length (D)	Stud Hole Distance (E)	Palm Thickness (F)	Pack Qty
Select	0015CHDP104	1.5	M4	N/A	1.8	18.5	8	11	5.5	5.5	1.0	100
Select	0015CHDP105	1.5	M5	N/A	1.8	19.5	8	12	5.5	6	1.0	100
Select	0015CHDP106	1.5	M6	N/A	1.8	21.5	9.5	14	5.5	7	0.9	100
Select	0025CHDP104	2.5	M4	N/A	2.4	21	8.5	11	8	5.5	0.9	100
Select	0025CHDP105	2.5	M5	N/A	2.4	22	8.5	12	8	6	0.9	100
Select	0025CHDP106	2.5	M6	N/A	2.4	24	9.5	14	8	7	0.8	100
Select	0025CHDP108	2.5	M8	N/A	2.4	28	11	18	8	9	0.7	100
Select	004CHDP104	4	M4	N/A	3.1	21	9.5	11	8	5.5	1.1	100
Select	004CHDP105	4	M5	N/A	3.1	25	9.5	12	8	6	1.1	100
Select	004CHDP106	4	M6	N/A	3.1	24	9.5	14	8	7	1.1	100
Select	004CHDP108	4	M8	N/A	3.1	28	11	18	8	9	1.0	100
Select	006CHDP105	6	M5	06H	3.8	25	9.5	12	10	6	1.3	100
Select	006CHDP106	6	M6	06H	3.8	27	10.5	14	10	7	1.2	100
Select	006CHDP108	6	M8	06H	3.8	31	11	18	10	9	1.1	100
Select	006CHDP110	6	M10	06H	3.8	35	14.5	22	10	11	0.9	100
Select	010CHDP105	10	M5	10H	4.7	25	10.5	12	10	6	2.1	100
Select	010CHDP106	10	M6	10H	4.7	27	10.5	14	10	7	2.1	100
Select	010CHDP108	10	M8	10H	4.7	31	11.5	18	10	9	1.9	100
Select	010CHDP110	10	M10	10H	4.7	36	14.5	22	10	11	1.5	100
Select	010CHDP112	10	M12	10H	4.7	40	18	26	10	13	1.2	100
Select	016CHDP105	16	M5	16H	5.5	31	11.5	14	13	7	2.2	100
Select	016CHDP106	16	M6	16H	5.5	31	11.5	14	13	7	2.2	100
Select	016CHDP108	16	M8	16H	5.5	35	11.5	18	13	9	2.2	100
Select	016CHDP110	16	M10	16H	5.5	39	14.5	22	13	11	1.7	100
Select	016CHDP112	16	M12	16H	5.5	43	18	26	13	13	1.4	100
Select	025CHDP106	25	M6	25H	6.8	33	12.5	15	14	7	2.0	100
Select	025CHDP108	25	M8	25H	6.8	36	13	18	14	9	1.9	100
Select	025CHDP110	25	M10	25H	6.8	40	14.5	22	14	11	1.7	100
Select	025CHDP112	25	M12	25H	6.8	44	16.5	26	14	13	1.5	100
Select	035CHDP106	35	M6	35H	8.2	36	15	17	14	9	2.4	100
Select	035CHDP108	35	M8	35H	8.2	37	15	18	14	9	2.4	100
Select	035CHDP110	35	M10	35H	8.2	41	16.5	22	14	11	2.1	100
Select	035CHDP112	35	M12	35H	8.2	47	21	26.5	14	12	1.7	100
Select	050CHDP106	50	M6	50H	9.5	45	18	21	18	10	2.8	50
Select	050CHDP108	50	M8	50H	9.5	45	18	21	18	10	2.8	50
Select	050CHDP110	50	M10	50H	9.5	45	18	21	18	10	2.8	50
Select	050CHDP112	50	M12	50H	9.5	50	21	26	18	13	2.4	50
Select	050CHDP114	50	M14	50H	9.5	52	22	28	18	12	2.3	50
Select	050CHDP116	50	M16	50H	9.5	56	22	32	18	16	2.3	50
Select	070CHDP106	70	M6	70H	11.2	52	21	25	20	12	3.4	50
Select	070CHDP108	70	M8	70H	11.2	52	21	25	20	12.5	3.4	50
Select	070CHDP110	70	M10	70H	11.2	52	21	25	20	12	3.4	50
Select	070CHDP112	70	M12	70H	11.2	52	21	25	20	12	3.4	50
Select	070CHDP114	70	M14	70H	11.2	55	25	28	20	12	2.8	50
Select	070CHDP116	70	M16	70H	11.2	55	25	28	20	12	2.8	50
Select	070CHDP120	70	M20	70H	11.2	66	28	39	20	19.5	2.5	50
Select	095CHDP108	95	M8	95H	13.5	57	25	26	22	13	3.8	25
Select	095CHDP110	95	M10	95H	13.5	57	25	26	22	13	3.8	25
Select	095CHDP112	95	M12	95H	13.5	57	25	26	22	13	3.8	25
Select	095CHDP114	95	M14	95H	13.5	61	26	30	22	15	3.6	25
Select	095CHDP116	95	M16	95H	13.5	60	26	29	22	13	3.6	25
Select	095CHDP120	95	M20	95H	13.5	72	28	41	22	20	3.4	25
Select	120CHDP108	120	M8	120H	15	63	28	29	24	14	4.2	20
Select	120CHDP110	120	M10	120H	15	63	28	29	24	14	4.2	20
Select	120CHDP112	120	M12	120H	15	63	28	29	24	14	4.2	20
Select	120CHDP114	120	M14	120H	15	63	28	29	24	14	4.2	20
Select	120CHDP116	120	M16	120H	15	66	28	32	24	16	4.2	20
Select	120CHDP120	120	M20	120H	15	70	31	36	24	16	3.8	20
Select	150CHDP108	150	M8	150H	16.5	71	30.5	31	29	16	4.6	20
Select	150CHDP110	150	M10	150H	16.5	71	30.5	31	29	16	4.6	20
Select	150CHDP112	150	M12	150H	16.5	71	30.5	31	29	16	4.6	20
Select	150CHDP114	150	M14	150H	16.5	71	30.5	31	29	16	4.6	20
Select	150CHDP116	150	M16	150H	16.5	72	30.5	32	29	16	4.6	20
Select	150CHDP120	150	M20	150H	16.5	81	32	41	29	20.5	4.3	20
Select	185CHDP110	185	M10	185H	18.5	79	34	33	34	17	4.9	10
Select	185CHDP112	185	M12	185H	18.5	79	34	33	34	17	4.9	10
Select	185CHDP114	185	M14	185H	18.5	79	34	33	34	17	4.9	10
Select	185CHDP116	185	M16	185H	18.5	79	34	33	34	17	4.9	10
Select	185CHDP120	185	M20	185H	18.5	87	34	41	34	20.5	4.9	10
Select	240CHDP110	240	M10	240H	21	93	38	40	39	20	5.4	10
Select	240CHDP112	240	M12	240H	21	93	38	40	39	20	5.4	10
Select	240CHDP114	240	M14	240H	21	93	38	40	39	20	5.4	10
Select	240CHDP116	240	M16	240H	21	93	38	40	39	20	5.4	10
Select	240CHDP120	240	M20	240H	21	93	38	40	39	20	5.4	10
Select	300CHDP110	300	M10	300H	23.5	101	43	42	44	22	6.4	10
Select	300CHDP112	300	M12	300H	23.5	101	43	42	44	22	6.4	10
Select	300CHDP114	300	M14	300H	23.5	101	43	42	44	22	6.4	10
Select	300CHDP116	300	M16	300H	23.5	101	43	42	44	22	6.4	10
Select	300CHDP120	300	M20	300H	23.5	101	43	42	44	22	6.4	10
Select	400CHDP110	400	M10	400H	26.8	116	50	51	47	26	7.7	5
Select	400CHDP112	400	M12	400H	26.8	116	50	51	47	26	7.7	5
Select	400CHDP114	400	M14	400H	26.8	116	50	51	47	26	7.7	5
Select	400CHDP116	400	M16	400H	26.8	116	50	51	47	26	7.7	5
Select	400CHDP120	400	M20	400H	26.8	116	50	51	47	26	7.7	5
Select	500CHDP112	500	M12	500H	30	126	55.5	54	52	28	8.8	1
Select	500CHDP116	500	M16	500H	30	126	55.5	54	52	28	8.8	1
Select	500CHDP120	500	M20	500H	30	126	55.5	54	52	28	8.8	1
Select	630CHDP116	630	M16	630H	35	146	64.5	65	59	33	9.7	1
Select	630CHDP120	630	M20	630H	35	151	64.5	65	64	32.5	9.7	1
Select	800CHDP116	800	M16	800H	39	171	72.5	68	78	34	11.3	1
Select	800CHDP120	800	M20	800H	39	171	72.5	68	78	34	11.3	1
Select	1000CHDP116	1000	M16	1000H	43	202	80.5	87	90	43.5	12.8	1
Select	1000CHDP120	1000	M20	1000H	43	202	80.5	87	90	43.5	12.8	1
