CHDP2 Cable Lug

ETIM Classification

EC001051

Heavy Duty Metric Copper Compression Cable Lug - Parallel Entry Standard Barrel with 2 Stud Holes - Inspection Window

Description

These products have been designed and third party certified to IEC 61238-1 Class A, for high quality and reliable crimping. Manufactured from high purity, oxygen-free, seamless copper tube (C110/CW009A), these cable lugs are precisely dimensioned to achieve optimal crimping with suitable conductors. The lugs are annealed to enhance durability, minimising risk of fracture between the palm and barrel. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection. There is a large inspection window to visually inspect conductor insertion; the inspection window can be removed as an option by adding suffix "X" - Example: 300CHDP212X. The centres of the two stud holes are detailed in the dimensional table. Custom stud hole dimensions are available on request. Blank palms available on request; please contact CMP for more information.

Features

  • Stud hole centre dimensions standardised at 44.5 mm; bespoke pitch available on request
  • Sizes to suit conductors as per EN 60228 cables; 25 mm² up to 630 mm²
  • Third Party Certified to IEC 61238-1 Class A
  • Manufactured from high purity (99.9%) copper seamless tube (BS EN 13600)
  • Annealed and electrolytically tin plated for reliable crimping, with oxidation and corrosion resistance
  • Enhanced marking on the barrel for simple die selection, inspection and traceability
  • CMP crimping die available for optimal crimping
  • Bevelled entry to aid conductor insertion
  • Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
  • Crimping die index numbers match CSA or wire size; refer to CMP compatible die chart for more information

Additional Information

Certification
IEC Certificate Number 12345
IEC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/6c9e4738/6597f72f43589004230000e4/ieclogo.jpg
Technical Specification
Barrel Type Standard
Entry Type Parallel
Lugs Material Tin Plated Copper
Number Of Stud Holes 2
Palm Angle Straight
Temperature Rating Up to 90 Degrees Celsius

Downloads

Certificates

Product Selector

1

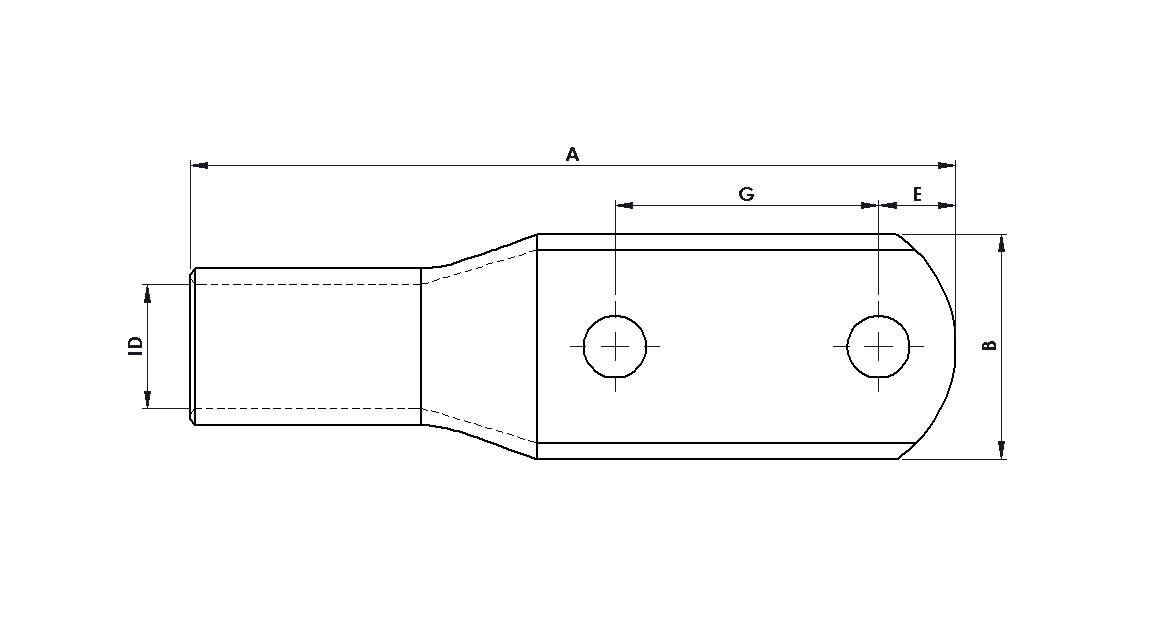

Part Number Cable Size (mm²) Hole Stud Size Die Index No. Internal Diameter (ID) Overall Length (A) Palm Width (B) Palm Length (C) Barrel Length (D) Stud Hole Distance (E) Palm Thickness (F) Stud Hole Spacing (G) Pack Qty
025CHDP208 25 M8 25H 6.8 90.2 13 67.5 14 11.5 1.9 44.5 100
025CHDP210 25 M10 25H 6.8 93.2 14.5 70.5 14 13 1.7 44.5 100
025CHDP212 25 M12 25H 6.8 97.2 16.5 74.5 14 15 1.5 44.5 100
035CHDP208 35 M8 35H 8.2 90.9 15 67.5 14 11.5 2.4 44.5 100
035CHDP210 35 M10 35H 8.2 93.9 16 70.5 14 13 2.2 44.5 100
035CHDP212 35 M12 35H 8.2 99.4 21 74.5 15.5 15 1.7 44.5 100
050CHDP208 50 M8 50H 9.5 94.9 18 67.5 18 11.5 2.8 44.5 50
050CHDP210 50 M10 50H 9.5 97.9 18 70.5 18 13 2.8 44.5 50
050CHDP212 50 M12 50H 9.5 101.9 21 74.5 18 15 2.4 44.5 50
070CHDP208 70 M8 70H 11.2 98.8 21 67.5 20 11.5 3.4 44.5 50
070CHDP210 70 M10 70H 11.2 101.8 21 70.5 20 13 3.4 44.5 50
070CHDP212 70 M12 70H 11.2 105.8 21 74.5 20 15 3.4 44.5 50
070CHDP214 70 M14 70H 11.2 107.8 25 76.5 20 16 2.8 44.5 50
095CHDP210 95 M10 95H 13.5 105.1 25 70.5 22 13 3.8 44.5 20
095CHDP212 95 M12 95H 13.5 109 25 74.5 22 15 3.8 44.5 20
095CHDP214 95 M14 95H 13.5 111 26 76.5 22 16 3.6 44.5 20
095CHDP216 95 M16 95H 13.5 115 26 80.5 22 18 3.6 44.5 20
120CHDP210 120 M10 120H 15 112 28 70.5 24 13 4.2 44.5 20
120CHDP212 120 M12 120H 15 113.5 28 74.5 24 15 4.2 44.5 20
120CHDP214 120 M14 120H 15 115.5 28 76.5 24 16 4.2 44.5 20
120CHDP216 120 M16 120H 15 119.5 28 80.5 24 18 4.2 44.5 20
150CHDP210 150 M10 150H 16.5 115 30.5 70.5 29 13 4.6 44.5 15
150CHDP212 150 M12 150H 16.5 119 30.5 74.5 29 15 4.6 44.5 15
150CHDP214 150 M14 150H 16.5 121 30.5 76.5 29 16 4.6 44.5 15
150CHDP216 150 M16 150H 16.5 125.6 30.5 80.5 29 18 4.6 44.5 15
185CHDP210 185 M10 185H 18.5 121 34 70.5 34 13 4.9 44.5 15
185CHDP212 185 M12 185H 18.5 125 34 74.5 34 15 4.9 44.5 15
185CHDP214 185 M14 185H 18.5 126.5 34 76.5 34 16 4.9 44.5 15
185CHDP216 185 M16 185H 18.5 130.9 34 80.5 34 18 4.9 44.5 15
240CHDP210 240 M10 240H 21 129.2 38 70.5 39 13 5.4 44.5 5
240CHDP212 240 M12 240H 21 133.9 38 74.5 39 15 5.4 44.5 5
240CHDP214 240 M14 240H 21 135.9 38 76.5 39 16 5.4 44.5 5
240CHDP216 240 M16 240H 21 139.9 38 80.5 39 18 5.4 44.5 5
300CHDP210 300 M10 300H 23.5 136.9 43 70.5 44 13 6.4 44.5 5
300CHDP212 300 M12 300H 23.5 140.8 43 74.5 44 15 6.4 44.5 5
300CHDP214 300 M14 300H 23.5 142.8 43 76.5 44 16 6.4 44.5 5
300CHDP216 300 M16 300H 23.5 146.8 43 80.5 44 18 6.4 44.5 5
400CHDP210 400 M10 400H 26.8 142.4 50 70.5 47 13 7.7 44.5 5
400CHDP212 400 M12 400H 26.8 146.4 50 74.5 47 15 7.7 44.5 5
400CHDP214 400 M14 400H 26.8 148.4 50 76.5 47 16 7.7 44.5 5
400CHDP216 400 M16 400H 26.8 152.4 50 80.5 47 18 7.7 44.5 5
500CHDP212 500 M12 500H 30 160.8 55.5 80.5 52 18 8.8 44.5 1
500CHDP214 500 M14 500H 30 160.8 55.5 80.5 52 18 8.8 44.5 1
500CHDP216 500 M16 500H 30 160.8 55.5 80.5 52 18 8.8 44.5 1
630CHDP212 630 M12 630H 35 170.6 64.5 80.5 59 18 9.7 44.5 1
630CHDP216 630 M16 630H 35 170.6 64.5 80.5 59 18 9.7 44.5 1
