CHLP1-W Cable Lug

ETIM Classification

EC001051

MV Heavy Duty Metric Copper Compression Cable Lug - Parallel Entry Long Barrel with 1 Stud Hole - Inspection Window

Description

These products have been designed and third party certified to IEC 61238-1 Class A, for high quality and reliable crimping. Long barrel compression cable lugs enable additional crimps, offering increased electrical and mechanical properties. Manufactured from high purity, oxygen-free, seamless copper tube (C110/CW009A), these cable lugs are precisely dimensioned to achieve optimal crimping with suitable conductors. The lugs are annealed to enhance durability, minimising risk of fracture between the palm and barrel. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection. There is a large inspection window to visually inspect conductor insertion; the inspection window can be removed as an option - see data sheet CHLP1. Standard stud hole sizes are detailed in the dimension table. Custom stud hole dimensions are available on request.

Features

Sizes to suit conductors as per EN 60228 cables; 10 mm² up to 1,000 mm²
Third Party Certified to IEC 61238-1 Class A
Manufactured from high purity (99.9%) copper seamless tube (BS EN 13600)
Annealed and electrolytically tin plated for reliable crimping, with oxidation and corrosion resistance
Enhanced marking on the barrel for simple die selection, inspection and traceability
Bevelled entry to aid conductor insertion
CMP crimping die available for optimal crimping
Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
Crimping die index numbers match CSA or wire size; refer to CMP compatible die chart for more information

Additional Information

Certificates

Product Selector

Refine by part number

Conductor Material
Connection Type
Entry Type
Palm Angle
Barrel Type
Conductor Size
Hole/Stud size

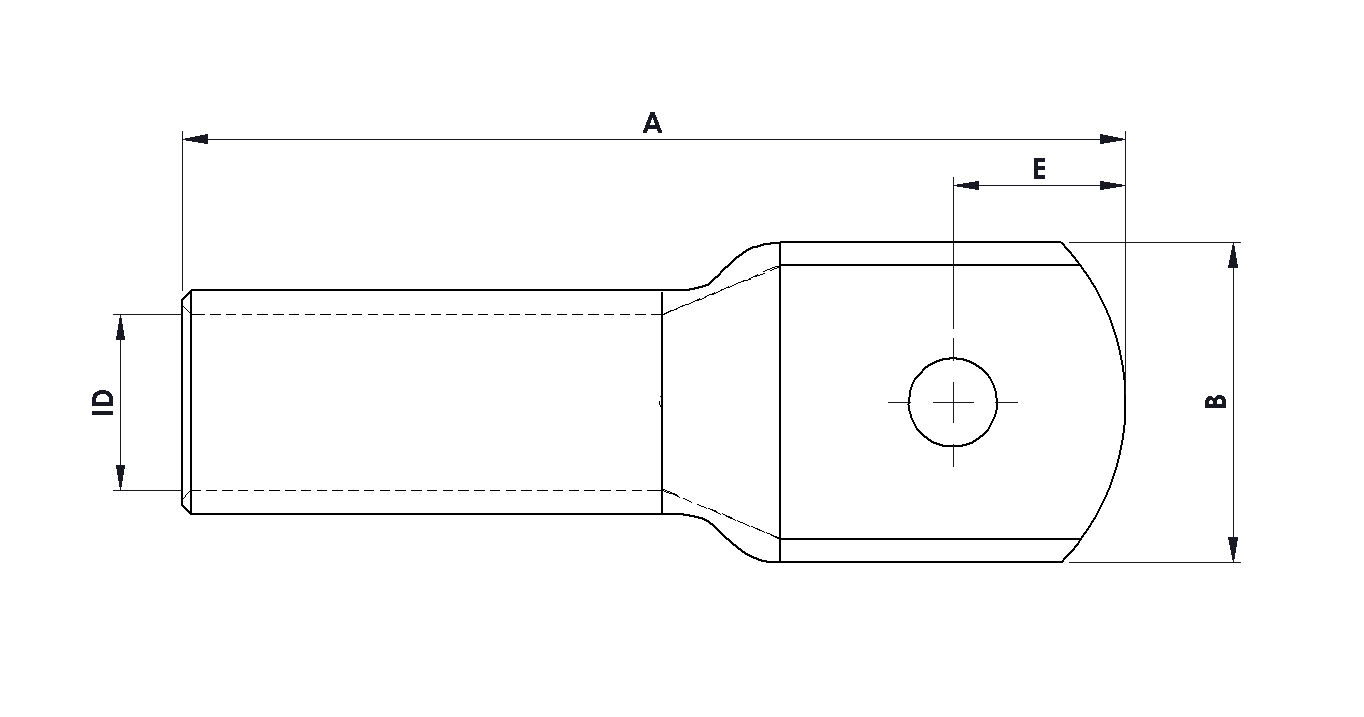

	Part Number	Cable Size (mm²)	Hole Stud Size	Die Index No.	Internal Diameter (ID)	Overall Length (A)	Palm Width (B)	Palm Length (C)	Barrel Length (D)	Stud Hole Distance (E)	Palm Thickness (F)	Pack Qty
Select	010CHLP105W	10	M5	10H	4.7	40	10.5	12	25	6	2.1	100
Select	010CHLP106W	10	M6	10H	4.7	42	10.5	14	25	7	2.1	100
Select	010CHLP108W	10	M8	10H	4.7	46	11.5	18	25	9	1.9	100
Select	010CHLP110W	10	M10	10H	4.7	51	14.5	22	25	11	1.5	100
Select	010CHLP112W	10	M12	10H	4.7	55	18	26	25	13	1.2	100
Select	016CHLP105W	16	M5	16H	5.5	46.5	11.5	14	28.5	7	2.2	100
Select	016CHLP106W	16	M6	16H	5.5	46.5	11.5	14	28.5	7	2.2	100
Select	016CHLP108W	16	M8	16H	5.5	50.5	11.5	18	28.5	9	2.2	100
Select	016CHLP110W	16	M10	16H	5.5	54.5	14.5	22	28.5	11	1.7	100
Select	016CHLP112W	16	M12	16H	5.5	58.5	18	26	28.5	13	1.4	100
Select	025CHLP106W	25	M6	25H	6.8	51	12.5	15	32	7	2.0	100
Select	025CHLP108W	25	M8	25H	6.8	54	13	18	32	9	1.9	100
Select	025CHLP110W	25	M10	25H	6.8	58	14.5	22	32	11	1.7	100
Select	025CHLP112W	25	M12	25H	6.8	62	16.5	26	32	13	1.5	100
Select	035CHLP106W	35	M6	35H	8.2	58	15	18	35	9	2.4	100
Select	035CHLP108W	35	M8	35H	8.2	58	15	18	35	9	2.4	100
Select	035CHLP110W	35	M10	35H	8.2	62	16	22	35	11	2.2	100
Select	035CHLP112W	35	M12	35H	8.2	66	21	26	35	13	1.7	100
Select	050CHLP106W	50	M6	50H	9.5	62	18	21	35	10.5	2.8	50
Select	050CHLP108W	50	M8	50H	9.5	62	18	21	35	10.5	2.8	50
Select	050CHLP110W	50	M10	50H	9.5	63	18	22	35	11	2.8	50
Select	050CHLP112W	50	M12	50H	9.5	67	22	26	35	13	2.3	50
Select	050CHLP114W	50	M14	50H	9.5	71	18	30	35	15	2.8	50
Select	050CHLP116W	50	M16	50H	9.5	73	22	32	35	16	2.3	50
Select	070CHLP106W	70	M6	70H	11.2	70	21	25	38	12.5	3.4	50
Select	070CHLP108W	70	M8	70H	11.2	70	21	25	38	12.5	3.4	50
Select	070CHLP110W	70	M10	70H	11.2	70	21	25	38	12.5	3.4	50
Select	070CHLP112W	70	M12	70H	11.2	71	21	26	38	13	3.4	50
Select	070CHLP114W	70	M14	70H	11.2	75	25	30	38	15	2.8	50
Select	070CHLP116W	70	M16	70H	11.2	77	25	32	38	16	2.8	50
Select	070CHLP120W	70	M20	70H	11.2	84	28	39	38	19.5	2.5	50
Select	095CHLP108W	95	M8	95H	13.5	73	25	26	38	13	3.8	20
Select	095CHLP110W	95	M10	95H	13.5	73	25	26	38	13	3.8	20
Select	095CHLP112W	95	M12	95H	13.5	73	25	26	38	13	3.8	20
Select	095CHLP114W	95	M14	95H	13.5	77	26	30	38	15	3.6	20
Select	095CHLP116W	95	M16	95H	13.5	79	26	32	38	16	3.6	20
Select	095CHLP120W	95	M20	95H	13.5	88	28	41	38	20.5	3.4	20
Select	120CHLP108W	120	M8	120H	15	80	28	29	41	14.5	4.2	20
Select	120CHLP110W	120	M10	120H	15	80	28	29	41	14.5	4.2	20
Select	120CHLP112W	120	M12	120H	15	80	28	29	41	14.5	4.2	20
Select	120CHLP114W	120	M14	120H	15	81	28	30	41	15	4.2	20
Select	120CHLP116W	120	M16	120H	15	83	28	32	41	16	4.2	20
Select	120CHLP120W	120	M20	120H	15	92	31	41	41	20.5	3.8	20
Select	150CHLP108W	150	M8	150H	16.5	93	30.5	31	51	15.5	4.6	15
Select	150CHLP110W	150	M10	150H	16.5	93	30.5	31	51	15.5	4.6	15
Select	150CHLP112W	150	M12	150H	16.5	93	30.5	31	51	15.5	4.6	15
Select	150CHLP114W	150	M14	150H	16.5	93	30.5	31	51	15.5	4.6	15
Select	150CHLP116W	150	M16	150H	16.5	94	30.5	32	51	16	4.6	15
Select	150CHLP120W	150	M20	150H	16.5	103	32	41	51	20.5	4.3	15
Select	185CHLP110W	185	M10	185H	18.5	96	34	33	51	16.5	4.9	15
Select	185CHLP112W	185	M12	185H	18.5	96	34	33	51	16.5	4.9	15
Select	185CHLP114W	185	M14	185H	18.5	96	34	33	51	16.5	4.9	15
Select	185CHLP116W	185	M16	185H	18.5	96	34	33	51	16.5	4.9	15
Select	185CHLP120W	185	M20	185H	18.5	104	34	41	51	20.5	4.9	15
Select	240CHLP110W	240	M10	240H	21	112	38	41	57	20.5	5.4	5
Select	240CHLP112W	240	M12	240H	21	112	38	41	57	20.5	5.4	5
Select	240CHLP114W	240	M14	240H	21	112	38	41	57	20.5	5.4	5
Select	240CHLP116W	240	M16	240H	21	112	38	41	57	20.5	5.4	5
Select	240CHLP120W	240	M20	240H	21	112	38	41	57	20.5	5.4	5
Select	300CHLP110W	300	M10	300H	23.5	126.5	43	43	68.5	21.5	6.4	5
Select	300CHLP112W	300	M12	300H	23.5	126.5	43	43	68.5	21.5	6.4	5
Select	300CHLP114W	300	M14	300H	23.5	126.5	43	43	68.5	21.5	6.4	5
Select	300CHLP116W	300	M16	300H	23.5	126.5	43	43	68.5	21.5	6.4	5
Select	300CHLP120W	300	M20	300H	23.5	126.5	43	43	68.5	21.5	6.4	5
Select	400CHLP110W	400	M10	400H	26.8	143.5	50	51	74.5	25.5	7.7	5
Select	400CHLP112W	400	M12	400H	26.8	143.5	50	51	74.5	25.5	7.7	5
Select	400CHLP114W	400	M14	400H	26.8	143.5	50	51	74.5	25.5	7.7	5
Select	400CHLP116W	400	M16	400H	26.8	143.5	50	51	74.5	25.5	7.7	5
Select	400CHLP120W	400	M20	400H	26.8	143.5	50	51	74.5	25.5	7.7	5
Select	500CHLP116W	500	M16	500H	30	150	55.5	54	76	26.5	8.8	1
Select	500CHLP120W	500	M20	500H	30	150	55.5	54	76	26.5	8.8	1
Select	630CHLP116W	630	M16	630H	35	168	64.5	65	81	32.5	9.7	1
Select	630CHLP120W	630	M20	630H	35	168	64.5	65	81	32.5	9.7	1
Select	800CHLP116W	800	M16	800H	39	193	72.5	68	100	33	11.3	1
Select	800CHLP120W	800	M20	800H	39	193	72.5	68	100	33	11.3	1
Select	1000CHLP116W	1000	M16	1000H	43	222	80.5	87	110	40	12.8	1
Select	1000CHLP120W	1000	M20	1000H	43	222	80.5	87	110	40	12.8	1
