CHLP2-W Cable Lug
ETIM Classification
EC001051
MV Heavy Duty Metric Copper Compression Cable Lug - Parallel Entry Long Barrel with 2 Stud Holes - Inspection Window
Description
These products have been designed and third party certified to IEC 61238-1 Class A, for high quality and reliable crimping. Long barrel compression cable lugs enable additional crimps, offering increased electrical and mechanical properties. Manufactured from high purity, oxygen-free, seamless copper tube (C110/CW009A), these cable lugs are precisely dimensioned to achieve optimal crimping with suitable conductors. The lugs are annealed to enhance durability, minimising risk of fracture between the palm and barrel. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection. There is a large inspection window to visually inspect conductor insertion; the inspection window can be removed as an option - see data sheet CHLP2. The centres of the two stud holes are detailed in the dimensional table. Custom stud hole dimensions are available on request.
Features
- Stud hole centre dimensions standardised at 44.5 mm; bespoke pitch available on request
- Sizes to suit conductors as per EN 60228 cables; 50 mm² up to 1,000 mm²
- Third Party Certified to IEC 61238-1 Class A
- Manufactured from high purity (99.9%) copper seamless tube (BS EN 13600)
- Annealed and electrolytically tin plated for reliable crimping, with oxidation and corrosion resistance
- Enhanced marking on the barrel for simple die selection, inspection and traceability
- CMP crimping die available for optimal crimping
- Bevelled entry to aid conductor insertion
- Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
- Crimping die index numbers match CSA or wire size; refer to CMP compatible die chart for more information
Additional Information
| Certification | ||||
|---|---|---|---|---|
|
||||
| Technical Specification | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
Certificates
Product Selector

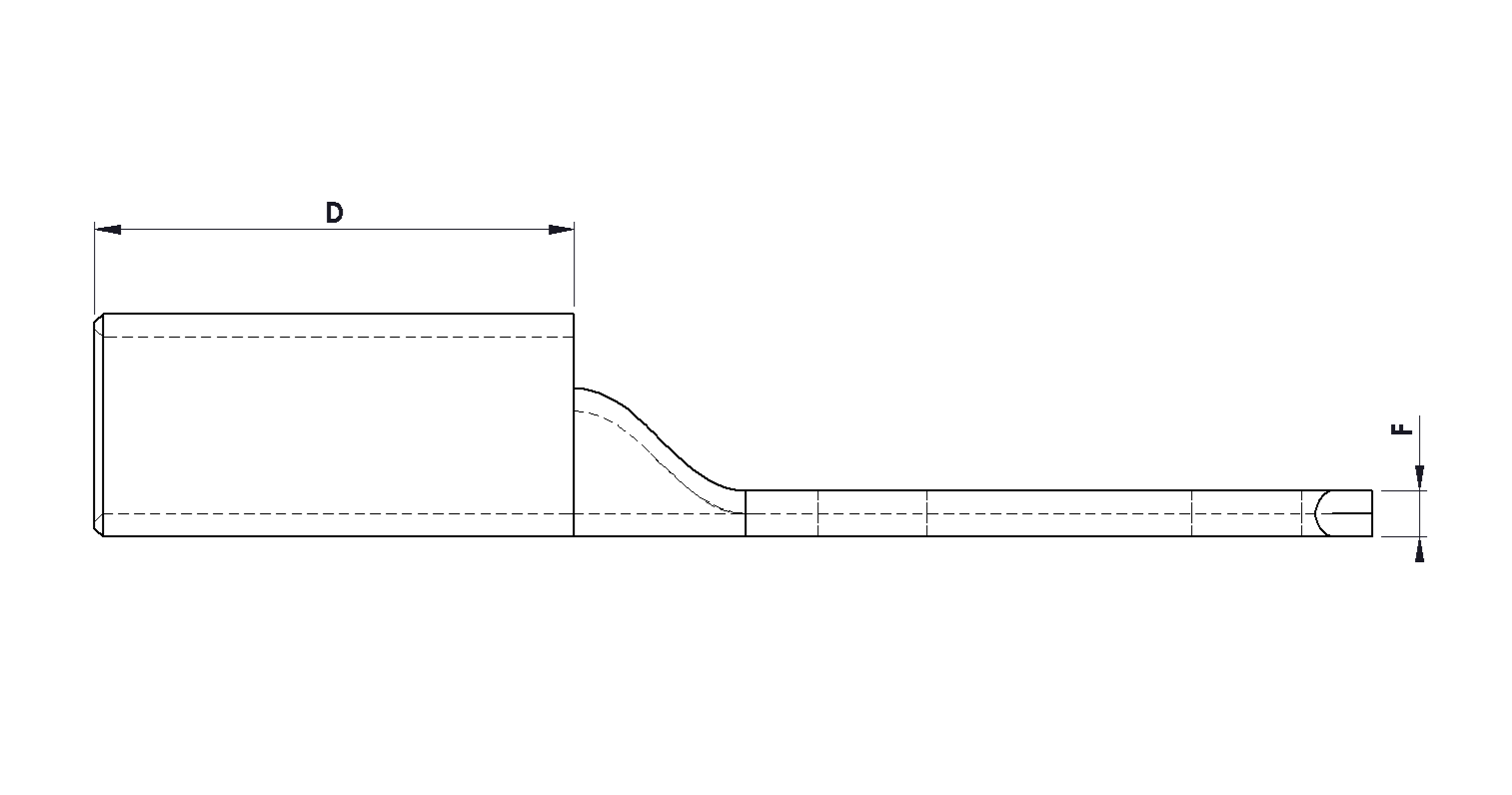

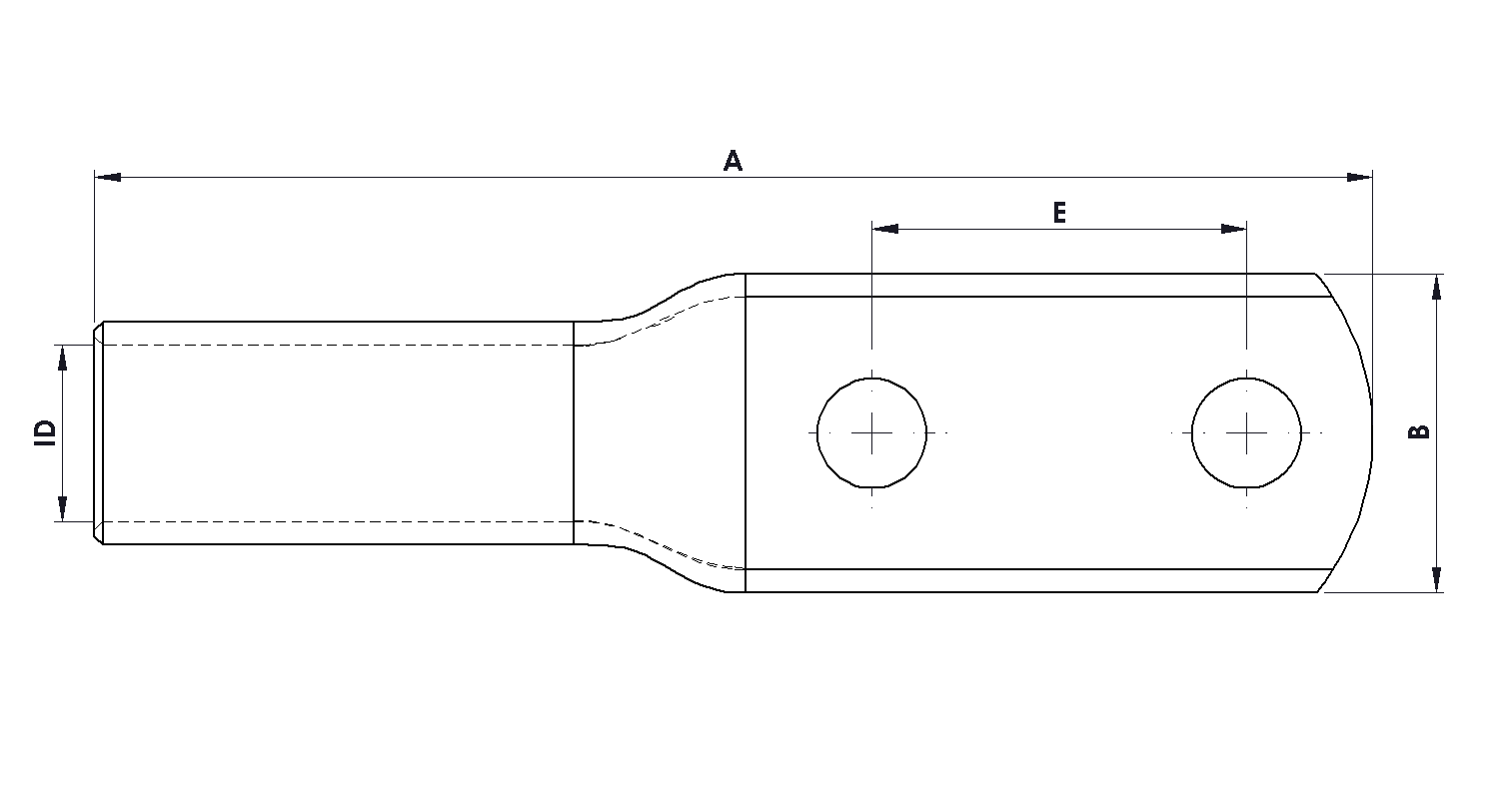

| Part Number | Cable Size (mm²) | Hole Stud Size | Die Index No. | Internal Diameter (ID) | Overall Length (A) | Palm Width (B) | Palm Length (C) | Barrel Length (D) | Stud Hole Distance (E) | Palm Thickness (F) | Stud Hole Spacing (G) | Pack Qty | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
050CHLP212W | 50 | M12 | 50H | 9.5 | 118.9 | 21 | 74.5 | 35 | 15 | 2.4 | 44.5 | 50 |
|
|
070CHLP212W | 70 | M12 | 70H | 11.2 | 123.8 | 21 | 74.5 | 38 | 15 | 3.4 | 44.5 | 50 |
|
|
070CHLP214W | 70 | M14 | 70H | 11.2 | 125.8 | 25 | 76.5 | 38 | 16 | 2.8 | 44.5 | 50 |
|
|
095CHLP212W | 95 | M12 | 95H | 13.5 | 125.1 | 25 | 74.5 | 38 | 15 | 3.8 | 44.5 | 20 |
|
|
095CHLP214W | 95 | M14 | 95H | 13.5 | 127.1 | 26 | 76.5 | 38 | 16 | 3.6 | 44.5 | 20 |
|
|
120CHLP212W | 120 | M12 | 120H | 15 | 130.5 | 28 | 74.5 | 41 | 15 | 4.2 | 44.5 | 20 |
|
|
120CHLP214W | 120 | M14 | 120H | 15 | 132.5 | 28 | 76.5 | 41 | 16 | 4.2 | 44.5 | 20 |
|
|
120CHLP216W | 120 | M16 | 120H | 15 | 136.5 | 28 | 80.5 | 41 | 18 | 4.2 | 44.5 | 20 |
|
|
150CHLP212W | 150 | M12 | 150H | 16.5 | 141 | 30.5 | 74.5 | 51 | 15 | 4.6 | 44.5 | 15 |
|
|
150CHLP214W | 150 | M14 | 150H | 16.5 | 143 | 30.5 | 76.5 | 51 | 16 | 4.6 | 44.5 | 15 |
|
|
185CHLP212W | 185 | M12 | 185H | 18.5 | 142 | 34 | 74.5 | 51 | 15 | 4.9 | 44.5 | 15 |
|
|
185CHLP214W | 185 | M14 | 185H | 18.5 | 144 | 34 | 76.5 | 51 | 16 | 4.9 | 44.5 | 15 |
|
|
185CHLP216W | 185 | M16 | 185H | 18.5 | 148 | 34 | 80.5 | 51 | 18 | 4.9 | 44.5 | 15 |
|
|
240CHLP212W | 240 | M12 | 240H | 21 | 151.9 | 38 | 74.5 | 57 | 15 | 5.4 | 44.5 | 5 |
|
|
240CHLP214W | 240 | M14 | 240H | 21 | 153.9 | 38 | 76.5 | 57 | 16 | 5.4 | 44.5 | 5 |
|
|
240CHLP216W | 240 | M16 | 240H | 21 | 157.9 | 38 | 80.5 | 57 | 18 | 5.4 | 44.5 | 5 |
|
|
300CHLP212W | 300 | M12 | 300H | 23.5 | 165.3 | 43 | 74.5 | 68.5 | 15 | 6.4 | 44.5 | 1 |
|
|
300CHLP214W | 300 | M14 | 300H | 23.5 | 167.3 | 43 | 76.5 | 68.5 | 16 | 6.4 | 44.5 | 1 |
|
|
300CHLP216W | 300 | M16 | 300H | 23.5 | 171.3 | 43 | 80.5 | 68.5 | 18 | 6.4 | 44.5 | 1 |
|
|
400CHLP212W | 400 | M12 | 400H | 26.8 | 173.9 | 50 | 74.5 | 74.5 | 15 | 7.7 | 44.5 | 1 |
|
|
400CHLP214W | 400 | M14 | 400H | 26.8 | 175.9 | 50 | 76.5 | 74.5 | 16 | 7.7 | 44.5 | 1 |
|
|
400CHLP216W | 400 | M16 | 400H | 26.8 | 179.9 | 50 | 80.5 | 74.5 | 18 | 7.7 | 44.5 | 1 |
|
|
500CHLP212W | 500 | M12 | 500H | 30 | 184.8 | 55.5 | 80.5 | 76 | 18 | 8.8 | 44.5 | 1 |
|
|
500CHLP214W | 500 | M14 | 500H | 30 | 184.8 | 55.5 | 80.5 | 76 | 18 | 8.8 | 44.5 | 1 |
|
|
500CHLP216W | 500 | M16 | 500H | 30 | 184.8 | 55.5 | 80.5 | 76 | 18 | 8.8 | 44.5 | 1 |
|
|
630CHLP212W | 630 | M12 | 630H | 35 | 192.6 | 64.5 | 80.5 | 81 | 18 | 9.7 | 44.5 | 1 |
|
|
630CHLP214W | 630 | M14 | 630H | 35 | 192.6 | 64.5 | 80.5 | 81 | 18 | 9.7 | 44.5 | 1 |
|
|
630CHLP216W | 630 | M16 | 630H | 35 | 192.6 | 64.5 | 80.5 | 81 | 18 | 9.7 | 44.5 | 1 |
|
|
800CHLP214W | 800 | M14 | 800H | 39 | 227.5 | 72.5 | 87.5 | 100 | 21.5 | 11.3 | 44.5 | 1 |
|
|
800CHLP216W | 800 | M16 | 800H | 39 | 227.5 | 72.5 | 87.5 | 100 | 21.5 | 11.3 | 44.5 | 1 |
|
|
1000CHLP212W | 1000 | M12 | 1000H | 43 | 246.5 | 80.5 | 91.5 | 110 | 23.5 | 12.8 | 44.5 | 1 |
|
|
1000CHLP216W | 1000 | M16 | 1000H | 43 | 246.5 | 80.5 | 91.5 | 110 | 23.5 | 12.8 | 44.5 | 1 |
|
|
1000CHLP220W | 1000 | M20 | 1000H | 43 | 246.5 | 80.5 | 91.5 | 110 | 23.5 | 12.8 | 44.5 | 1 |
