CLF1 Cable Lug

ETIM Classification

EC001051

MV Heavy Duty Copper Compression Cable Lug - Flared Entry Long Barrel with 1 Stud Hole - No Inspection Window

Description

These flared entry products have been designed and third party certified to UL 486A-486B and CSA C22.2 No. 65, for high quality and reliable crimping. Long barrel compression cable lugs enable additional crimps, offering increased electrical and mechanical properties. Manufactured from high purity, oxygen-free, seamless copper tube (C110/CW009A), these cable lugs are precisely dimensioned to achieve optimal crimping with suitable conductors. The lugs are annealed to enhance durability, minimising risk of fracture between the palm and barrel. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection. No inspection window to prevent moisture ingress for MV and outdoor applications; inspection window can be added as an option - see data sheet CLF1-W. Standard stud hole sizes are detailed in the dimension table. Custom stud hole dimensions are available on request.

Features

  • Available in sizes 8 AWG to 1,000 kcmil
  • Third Party Certified to UL 486A-486B and CSA C22.2 No. 65
  • Manufactured from high purity (99.9%) copper seamless tube (BS EN 13600)
  • Annealed and electrolytically tin plated for reliable crimping, with oxidation and corrosion resistance
  • No inspection window to enhance ingress protection for outdoor applications
  • Colour coded with enhanced marking on the barrel for simple die selection, inspection and traceability
  • CMP crimping die available for optimal crimping
  • Flared entry to barrel for ease of conductor insertion; beneficial for fine stranded conductors
  • Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
  • Crimping die index numbers match wire size; refer to CMP compatible die chart for more information

Additional Information

Certification
cULus Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/085aa78a/67bec66a244c9860a59ae4aa/CULUS-approved.png
CSA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/95c6667c/686f8d1021676f0b5e0002d4/CSA.png
Technical Specification
Barrel Type Long
Duty Type Heavy Duty
Entry Type Flared
Lugs Material Tin Plated Copper
Max Voltage of Application 35 kV
Number Of Stud Holes 1
Palm Angle Straight
Temperature Rating Up to 90 Degrees Celsius

Downloads

Certificates

Product Selector

1

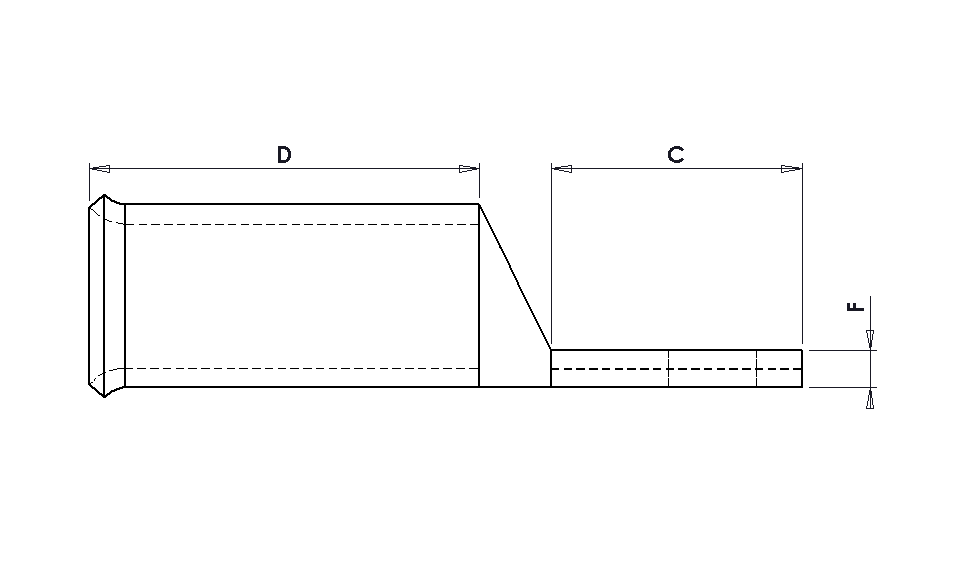

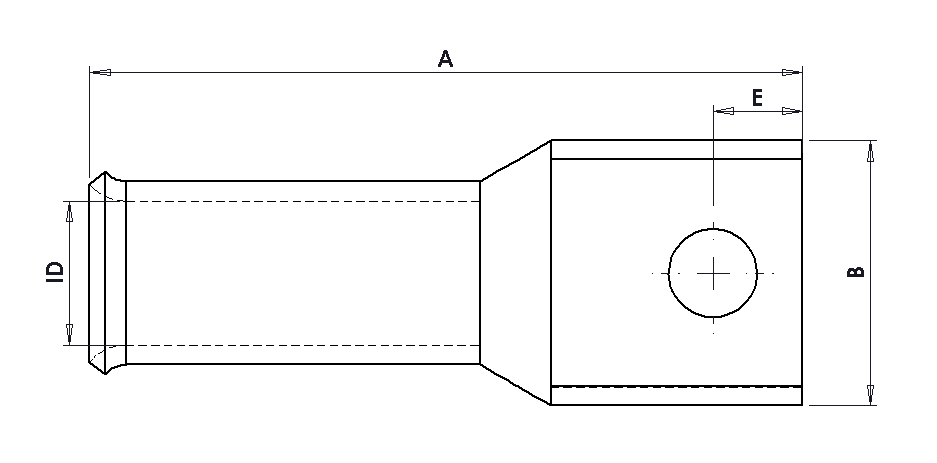

Part Number Cable Size (AWG/MCM/kcmil) Flex Cable Size (AWG/MCM/kcmil) Hole Stud Size Die Index No. Internal Diameter (ID) Internal Diameter (ID) - Inches Overall Length (A) Overall Length (A) - Inches Palm Width (B) Palm Width (B) - Inches Palm Length (C) Palm Length (C) - Inches Barrel Length (D) Barrel Length (D) - Inches Stud Hole Distance (E) Palm Thickness (F) Palm Thickness (F) - Inches Stud Hole Distance (E) - Inches Pack Qty
8CLF110 8 8 #10 08 4.4 0.17 38.5 1.52 10.7 0.42 15 0.59 20.5 0.81 7 2.0 0.08 0.28 100
8CLF114 8 8 1/4 08 4.4 0.17 38.5 1.52 10.7 0.42 15 0.59 20.5 0.81 7 2.0 0.08 0.28 100
8CLF138 8 8 3/8 08 4.4 0.17 40.5 1.59 14.5 0.57 17 0.67 20.5 0.81 8 1.2 0.05 0.31 100
6CLF110 6 6 #10 06 5.2 0.2 45 1.77 10.7 0.42 17 0.67 25 0.98 7.5 2.1 0.08 0.3 100
6CLF114 6 6 1/4 06 5.2 0.2 45 1.77 10.7 0.42 17 0.67 25 0.98 7.5 2.1 0.08 0.3 100
6CLF1516 6 6 5/16 06 5.2 0.2 48.6 1.91 13 0.51 20.6 0.81 25 0.98 9.4 1.8 0.07 0.37 100
6CLF138 6 6 3/8 06 5.2 0.2 48.6 1.91 15 0.59 20.6 0.81 25 0.98 9.4 1.3 0.05 0.37 100
4CLF110 4 - #10 04 6.4 0.25 45 1.77 12.4 0.49 17 0.67 25 0.98 8 2.2 0.09 0.31 50
4CLF114 4 - 1/4 04 6.4 0.25 45 1.77 12.4 0.49 17 0.67 25 0.98 8 2.2 0.09 0.31 50
4CLF1516 4 - 5/16 04 6.4 0.25 45 1.77 12.4 0.49 17 0.67 25 0.98 8 2.2 0.09 0.31 50
4CLF138 4 - 3/8 04 6.4 0.25 48.6 1.91 15 0.59 20.6 0.81 25 0.98 9.4 1.7 0.07 0.37 50
3CLF110 3 4 #10 03 7 0.28 52.6 2.07 12.7 0.5 20.6 0.81 28 1.1 8 2.4 0.09 0.31 50
3CLF114 3 4 1/4 03 7 0.28 52.6 2.07 12.7 0.5 20.6 0.81 28 1.1 8 2.4 0.09 0.31 50
3CLF1516 3 4 5/16 03 7 0.28 52.6 2.07 14 0.55 20.6 0.81 28 1.1 8 2.2 0.09 0.31 50
3CLF138 3 4 3/8 03 7 0.28 52.6 2.07 15 0.59 20.6 0.81 28 1.1 8 2.0 0.08 0.31 50
2CLF110 2 4 #10 02 8 0.31 52.6 2.07 15.3 0.6 20.6 0.81 28 1.1 9.4 2.6 0.1 0.37 50
2CLF114 2 4 1/4 02 8 0.31 52.6 2.07 15.3 0.6 20.6 0.81 28 1.1 9.4 2.6 0.1 0.37 50
2CLF1516 2 4 5/16 02 8 0.31 52.6 2.07 15.3 0.6 20.6 0.81 28 1.1 9.4 2.6 0.1 0.37 50
2CLF138 2 4 3/8 02 8 0.31 52.6 2.07 15.3 0.6 20.6 0.81 28 1.1 9.4 2.6 0.1 0.37 50
1CLF110 1 2 #10 01 9.1 0.36 53.6 2.11 17.1 0.67 20.6 0.81 28 1.1 9.4 2.7 0.11 0.37 25
1CLF1516 1 2 5/16 01 9.1 0.36 53.6 2.11 17.1 0.67 20.6 0.81 28 1.1 9.4 2.7 0.11 0.37 25
1CLF138 1 2 3/8 01 9.1 0.36 56.1 2.21 17.1 0.67 23.1 0.91 28 1.1 9.4 2.7 0.11 0.37 25
10CLF110 1/0 1 #10 10 9.9 0.39 56.1 2.21 18.9 0.74 20.6 0.81 30.5 1.2 9.4 3.2 0.13 0.37 25
10CLF114 1/0 1 1/4 10 9.9 0.39 56.1 2.21 18.9 0.74 20.6 0.81 30.5 1.2 9.4 3.2 0.13 0.37 25
10CLF1516 1/0 1 5/16 10 9.9 0.39 56.1 2.21 18.9 0.74 20.6 0.81 30.5 1.2 9.4 3.2 0.13 0.37 25
10CLF138 1/0 1 3/8 10 9.9 0.39 56.1 2.21 18.9 0.74 20.6 0.81 30.5 1.2 9.4 3.2 0.13 0.37 25
10CLF112 1/0 1 1/2 10 9.9 0.39 63.5 2.5 18.9 0.74 28 1.1 30.5 1.2 12 3.2 0.13 0.47 25
20CLF114 2/0 1/0 1/4 20 11.2 0.44 68 2.68 20.7 0.81 27 1.06 35 1.38 12 3.0 0.12 0.47 15
20CLF138 2/0 1/0 3/8 20 11.2 0.44 68 2.68 20.7 0.81 27 1.06 35 1.38 12 3.0 0.12 0.47 15
20CLF112 2/0 1/0 1/2 20 11.2 0.44 68 2.68 20.7 0.81 27 1.06 35 1.38 12 3.0 0.12 0.47 15
30CLF114 3/0 2/0 1/4 30 12.5 0.49 71 2.8 22.9 0.9 27 1.06 36 1.42 12 3.2 0.13 0.47 15
30CLF138 3/0 2/0 3/8 30 12.5 0.49 71 2.8 22.9 0.9 27 1.06 36 1.42 12 3.2 0.13 0.47 15
30CLF112 3/0 2/0 1/2 30 12.5 0.49 71 2.8 22.9 0.9 27 1.06 36 1.42 12 3.2 0.13 0.47 15
40CLF114 4/0 3/0 1/4 40 13.9 0.55 71 2.8 25.4 1 27 1.06 36 1.42 13.2 3.4 0.13 0.52 15
40CLF138 4/0 3/0 3/8 40 13.9 0.55 71 2.8 25.4 1 27 1.06 36 1.42 13.2 3.4 0.13 0.52 15
40CLF112 4/0 3/0 1/2 40 13.9 0.55 71 2.8 25.4 1 27 1.06 36 1.42 13.2 3.4 0.13 0.52 15
250CLF138 250 4/0 3/8 250 15.1 0.59 77 3.03 27.7 1.09 27 1.06 40.5 1.59 13.2 3.8 0.15 0.52 10
250CLF112 250 4/0 1/2 250 15.1 0.59 77 3.03 27.7 1.09 27 1.06 40.5 1.59 13.2 3.8 0.15 0.52 10
300CLF112 300 250 G,H 1/2 300 16.7 0.66 86 3.39 30.2 1.19 27 1.06 49.5 1.95 13.2 3.8 0.15 0.52 10
350CLF112 350 250 G,H,I,K,M 262 DLO 1/2 350 17.8 0.7 88 3.46 32.4 1.28 27 1.06 50 1.97 13.2 4.2 0.17 0.52 5
350CLF158 350 250 G,H,I,K,M 262 DLO 5/8 350 17.8 0.7 88 3.46 32.4 1.28 27 1.06 50 1.97 13 4.2 0.17 0.51 5
400CLF112 400 300 G,H,I,K,M 313 DLO 1/2 400 19.4 0.76 98 3.86 35.2 1.39 35.5 1.4 50.5 1.99 13 4.5 0.18 0.51 5
400CLF158 400 300 G,H,I,K,M 313 DLO 5/8 400 19.4 0.76 98 3.86 35.2 1.39 35.5 1.4 50.5 1.99 13 4.5 0.18 0.51 5
500CLF112 500 350 G,H,I,K,M 373 DLO 1/2 500 21.2 0.83 105 4.13 39.1 1.54 35.5 1.4 57.5 2.26 13 5.5 0.22 0.51 5
500CLF158 500 350 G,H,I,K,M 373 DLO 5/8 500 21.2 0.83 105 4.13 39.1 1.54 35.5 1.4 57.5 2.26 13 5.5 0.22 0.51 5
600CLF158 600 400 G,H,I,K,M 444 DLO 5/8 600 23.5 0.93 108 4.25 43.6 1.72 38 1.5 57.5 2.26 17.5 6.4 0.25 0.69 1
700CLF112 700 500 G,H,I,K,M 535 DLO 1/2 700 25 0.98 131 5.16 45 1.77 47 1.85 67 2.64 17.5 6.8 0.27 0.69 1
700CLF158 700 500 G,H,I,K,M 535 DLO 5/8 700 25 0.98 131 5.16 45 1.77 47 1.85 67 2.64 17.5 6.8 0.27 0.69 1
750CLF112 750 600 G,H,I 646 DLO 1/2 750 26.2 1.03 131 5.16 48.3 1.9 47 1.85 67 2.64 17.5 6.8 0.27 0.69 1
750CLF158 750 600 G,H,I 646 DLO 5/8 750 26.2 1.03 131 5.16 48.3 1.9 47 1.85 67 2.64 17.5 6.8 0.27 0.69 1
1000CLF112 1000 750 G,H,I 777 DLO 1/2 1000 30.2 1.19 144 5.67 55.4 2.18 47 1.85 80 3.15 17.5 8.4 0.33 0.69 1
1000CLF158 1000 750 G,H,I 777 DLO 5/8 1000 30.2 1.19 144 5.67 55.4 2.18 47 1.85 80 3.15 17.5 8.4 0.33 0.69 1
