CLF1-NW Cable Lug

ETIM Classification

EC001051

MV Heavy Duty Copper Compression Cable Lug - Flared Entry Long Barrel with 1 Stud Hole - Narrow Palm - Inspection Window

Description

These flared entry products have been designed and third party certified to UL 486A-486B, for high quality and reliable crimping. Long barrel compression cable lugs enable additional crimps, offering increased electrical and mechanical properties. Narrow palm cable lugs have a contained palm width to ensure a connection can be made in space constrained installations. Manufactured from high purity, oxygen-free, seamless copper tube (C110/CW009A), these cable lugs are precisely dimensioned to achieve optimal crimping with suitable conductors. The lugs are annealed to enhance durability, minimising risk of fracture between the palm and barrel. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection. There is a large inspection window to visually inspect conductor insertion; the inspection window can be removed as an option - see data sheet CLF1-N. Standard stud hole sizes are detailed in the dimension table. Custom stud hole dimensions are available on request.

Features

  • Sizes to suit cables 4 AWG up to 1,000 kcmil
  • Third Party Certified to UL 486A-486B
  • Narrow palm width for space constrained connections
  • Manufactured from high purity (99.9%) copper seamless tube (BS EN 13600)
  • Annealed and electrolytically tin plated for reliable crimping, with oxidation and corrosion resistance
  • Colour coded with enhanced marking on the barrel for simple die selection, inspection and traceability
  • CMP crimping die available for optimal crimping
  • Flared entry to barrel for ease of conductor insertion; beneficial for class 5 and 6 conductors
  • Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
  • Crimping die index numbers match wire size; refer to CMP compatible die chart for more information

Additional Information

Certification
cULus Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/085aa78a/67bec66a244c9860a59ae4aa/CULUS-approved.png
CSA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/95c6667c/686f8d1021676f0b5e0002d4/CSA.png
Technical Specification
Barrel Type Long
Duty Type Heavy Duty
Entry Type Flared
Lugs Material Tin Plated Copper
Max Voltage of Application 35 kV
Number Of Stud Holes 1
Palm Angle Straight
Temperature Rating Up to 90 Degrees Celsius

Downloads

Certificates

Product Selector

1

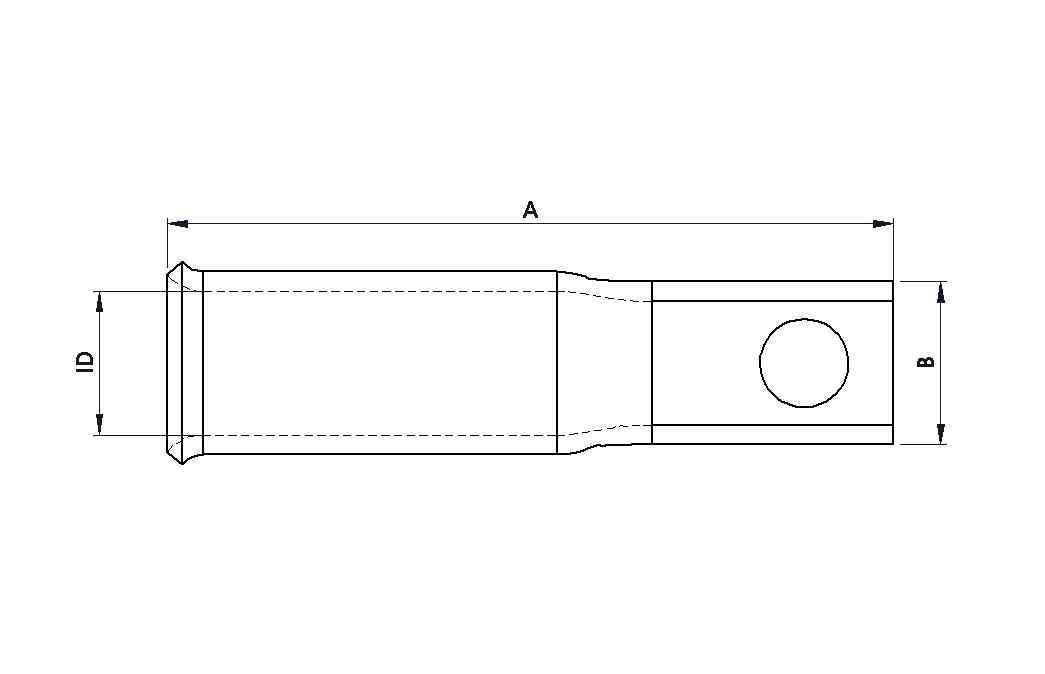

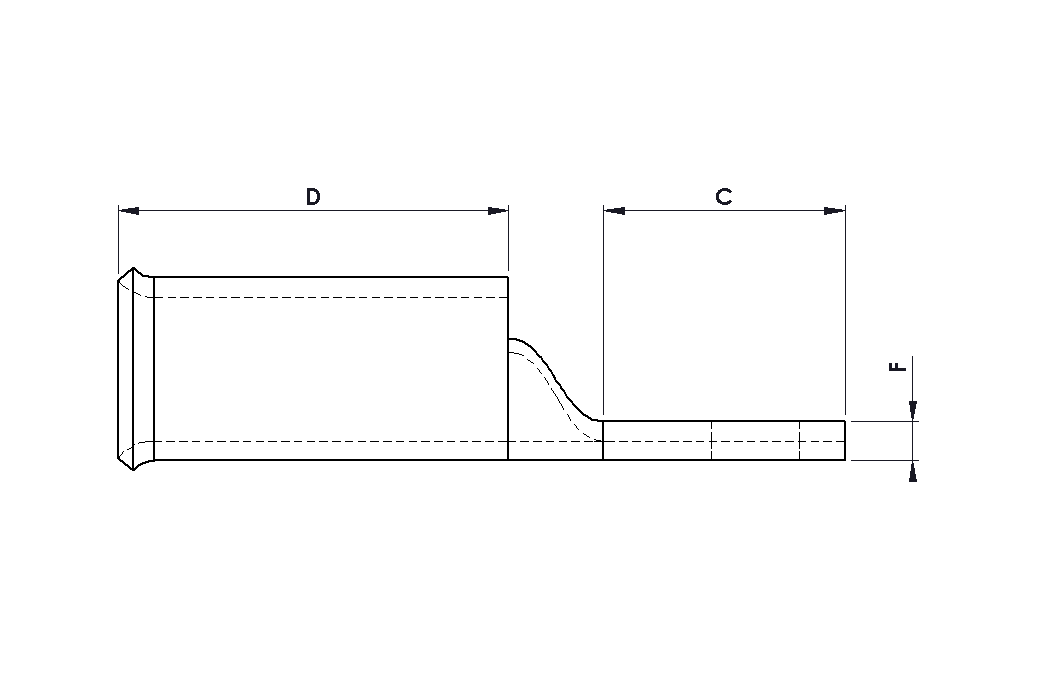

Part Number Cable Size (AWG/MCM/kcmil) Flex Cable Size (AWG/MCM/kcmil) Hole Stud Size Die Index No. Internal Diameter (ID) Internal Diameter (ID) - Inches Overall Length (A) Overall Length (A) - Inches Palm Width (B) Palm Width (B) - Inches Palm Length (C) Palm Length (C) - Inches Barrel Length (D) Barrel Length (D) - Inches Stud Hole Distance (E) Palm Thickness (F) Palm Thickness (F) - Inches Stud Hole Distance (E) - Inches Pack Qty
4CLF110NW 4 - #10 04 6.4 0.25 45 1.77 10.2 0.4 17 0.67 25 0.98 8 2.8 0.11 0.31 50
4CLF114NW 4 - 1/4 04 6.4 0.25 45 1.77 10.2 0.4 17 0.67 25 0.98 8 2.8 0.11 0.31 50
2CLF110NW 2 4 #10 02 8 0.31 52.6 2.07 12.7 0.5 20.6 0.81 28 1.1 9.4 3.3 0.13 0.37 25
2CLF114NW 2 4 1/4 02 8 0.31 52.6 2.07 12.7 0.5 20.6 0.81 28 1.1 9.4 3.3 0.13 0.37 25
2CLF1516NW 2 4 5/16 02 8 0.31 52.6 2.07 12.7 0.5 20.6 0.81 28 1.1 9.4 3.3 0.13 0.37 25
1CLF110NW 1 2 #10 01 9.1 0.36 53.6 2.11 12.7 0.5 20.6 0.81 28 1.1 9.4 3.8 0.15 0.37 25
10CLF110NW 1/0 1 #10 10 9.9 0.39 56.1 2.21 15.7 0.62 20.6 0.81 30.5 1.2 9.4 3.6 0.14 0.37 25
10CLF114NW 1/0 1 1/4 10 9.9 0.39 56.1 2.21 15.7 0.62 20.6 0.81 30.5 1.2 9.4 3.6 0.14 0.37 25
10CLF1516NW 1/0 1 5/16 10 9.9 0.39 56.1 2.21 15.7 0.62 20.6 0.81 30.5 1.2 9.4 3.6 0.14 0.37 25
10CLF138NW 1/0 1 3/8 10 9.9 0.39 56.1 2.21 15.7 0.62 20.6 0.81 30.5 1.2 9.4 3.6 0.14 0.37 25
20CLF114NW 2/0 1/0 1/4 20 11.2 0.44 68 2.68 15.7 0.62 27 1.06 35 1.38 12 4.1 0.16 0.47 15
20CLF138NW 2/0 1/0 3/8 20 11.2 0.44 68 2.68 15.8 0.62 27 1.06 35 1.38 12 4.1 0.16 0.47 15
30CLF114NW 3/0 2/0 1/4 30 12.5 0.49 71 2.8 16.3 0.64 27 1.06 36 1.42 12 4.3 0.17 0.47 15
30CLF138NW 3/0 2/0 3/8 30 12.5 0.49 71 2.8 16.256 0.64 27 1.06 36 1.42 12 4.3 0.17 0.47 15
40CLF138NW 4/0 3/0 3/8 40 13.9 0.55 71 2.8 19 0.75 27 1.06 36 1.42 12 5.1 0.2 0.47 15
40CLF112NW 4/0 3/0 1/2 40 13.9 0.55 71 2.8 18 0.71 27 1.06 36 1.42 12 5.1 0.2 0.47 15
250CLF138NW 250 4/0 3/8 250 15.1 0.59 77 3.03 19.6 0.77 27 1.06 40.5 1.59 12 5.3 0.21 0.47 10
250CLF112NW 250 4/0 1/2 250 15.1 0.59 77 3.03 19.6 0.77 27 1.06 40.5 1.59 12 5.3 0.21 0.47 10
300CLF112NW 300 250 G,H 1/2 300 16.7 0.66 86 3.39 21.1 0.83 27 1.06 49.5 1.95 12 5.6 0.22 0.47 10
350CLF112NW 350 250 G,H,I,K,M 262 DLO 1/2 350 17.8 0.7 88 3.46 22.4 0.88 27 1.06 50 1.97 12 6.4 0.25 0.47 5
400CLF112NW 400 300 G,H,I,K,M 313 DLO 1/2 400 19.4 0.76 98 3.86 24.4 0.96 37 1.46 50.5 1.99 13.2 6.9 0.27 0.52 5
500CLF112NW 500 350 G,H,I,K,M 373 DLO 1/2 500 21.2 0.83 105 4.13 26.9 1.06 37 1.46 57.5 2.26 13.2 6.6 0.26 0.52 5
750CLF112NW 750 600 G,H,I 646 DLO 1/2 750 26.2 1.03 131 5.16 33 1.3 47 1.85 67 2.64 17.5 8.1 0.32 0.69 1
750CLF158NW 750 600 G,H,I 646 DLO 5/8 750 26.2 1.03 131 5.16 33 1.3 47 1.85 67 2.64 17.5 8.1 0.32 0.69 1
1000CLF158NW 1000 750 G,H,I 777 DLO 5/8 1000 30.2 1.19 144 5.67 38.1 1.5 47 1.85 80 3.15 17.5 12.2 0.48 0.69 1
