CLF1B Cable Lug

ETIM Classification

EC001051

MV Heavy Duty Copper Compression Cable Lug - Flared Entry Long Barrel with Blank Palm for 1 Hole - No Inspection Window

Description

These flared entry products have been designed and third party certified to UL 486A-486B and CSA C22.2 No. 65, for high quality and reliable crimping. Long barrel compression cable lugs enable additional crimps, offering increased electrical and mechanical properties. Manufactured from high purity, oxygen-free, seamless copper tube (C110/CW009A), these cable lugs are precisely dimensioned to achieve optimal crimping with suitable conductors. The lugs are annealed to enhance durability, minimising risk of fracture between the palm and barrel. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection. No inspection window to prevent moisture ingress for MV and outdoor applications; inspection window can be added as an option - see data sheet CLF1BW. Blank palms enable custom stud hole drilling on installation, to suit connection requirements.

Features

  • Sizes to suit cables 8 AWG up to 1,000 kcmil
  • Third Party Certified to UL 486A-486B and CSA C22.2 No. 65
  • Manufactured from high purity (99.9%) copper seamless tube (BS EN 13600)
  • Annealed and electrolytically tin plated for reliable crimping, with oxidation and corrosion resistance
  • No inspection window to enhance ingress protection for outdoor applications
  • Colour coded with enhanced marking on the barrel for simple die selection, inspection and traceability
  • CMP crimping die available for optimal crimping
  • Flared entry to barrel for ease of conductor insertion; beneficial for fine stranded conductors
  • Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
  • Crimping die index numbers match wire size; refer to CMP compatible die chart for more information

Additional Information

Certification
cULus Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/085aa78a/67bec66a244c9860a59ae4aa/CULUS-approved.png
CSA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/95c6667c/686f8d1021676f0b5e0002d4/CSA.png
Technical Specification
Barrel Type Long
Duty Type Heavy Duty
Entry Type Flared
Lugs Material Tin Plated Copper
Max Voltage of Application 35 kV
Number Of Stud Holes 0
Palm Angle Straight
Temperature Rating Up to 90 Degrees Celsius

Downloads

Certificates

Product Selector

1

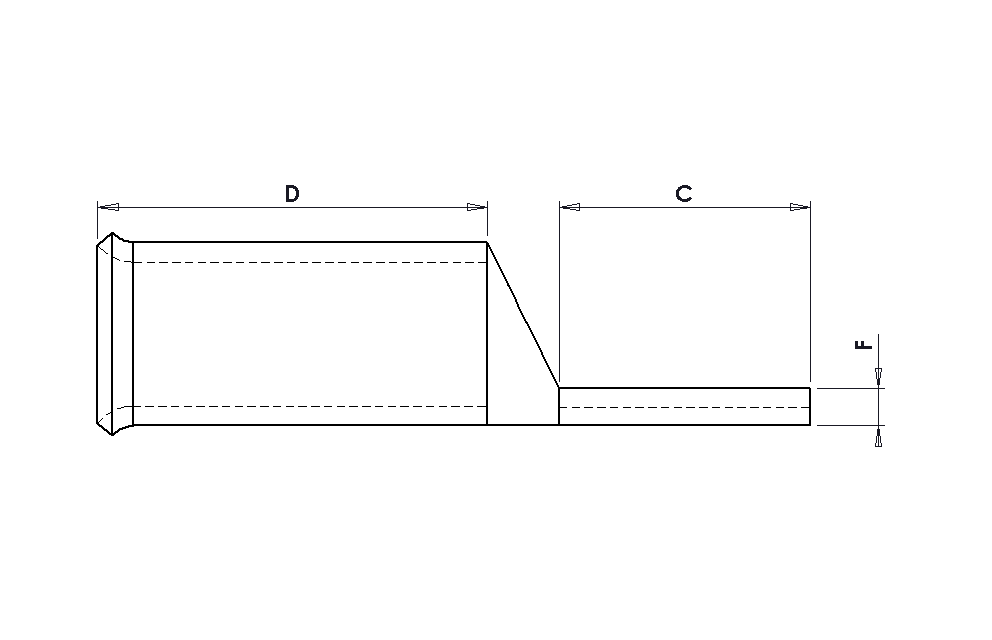

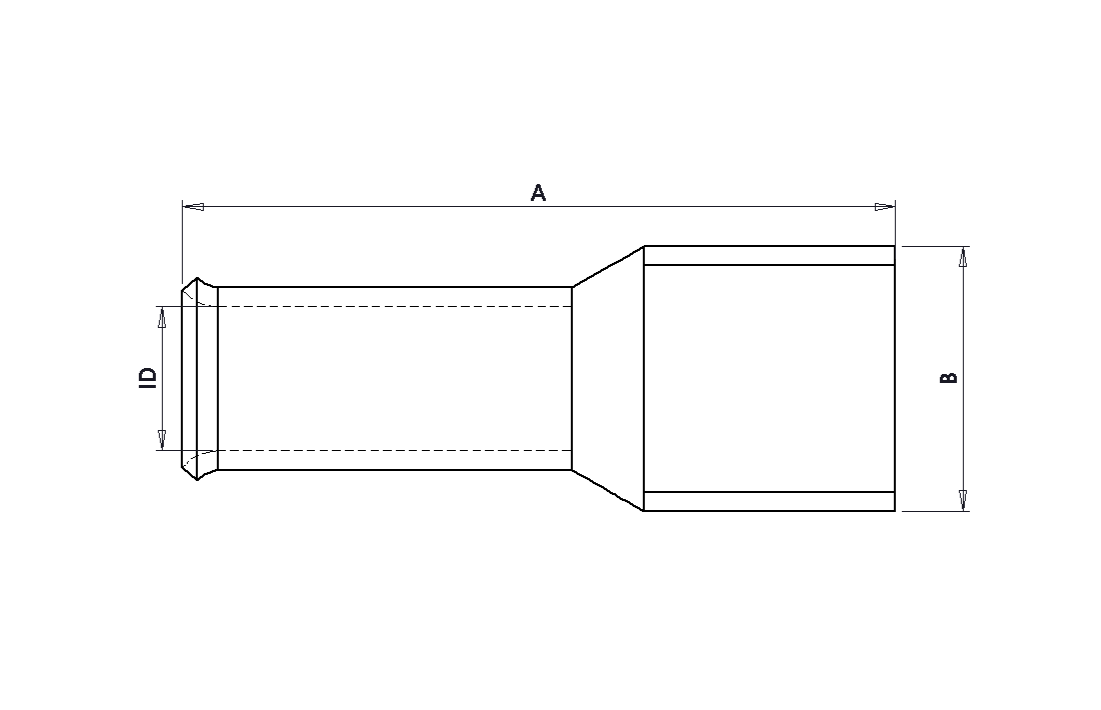

Part Number Cable Size (AWG/MCM/kcmil) Flex Cable Size (AWG/MCM/kcmil) Die Index No. Internal Diameter (ID) Internal Diameter (ID) - Inches Overall Length (A) Overall Length (A) - Inches Palm Width (B) Palm Width (B) - Inches Palm Length (C) Palm Length (C) - Inches Barrel Length (D) Barrel Length (D) - Inches Palm Thickness (F) Palm Thickness (F) - Inches Pack Qty
8CLF1B 8 8 08 4.4 0.17 40.5 1.59 14.5 0.57 17 0.67 20.5 0.81 1.2 0.05 100
6CLF1B 6 6 06 5.2 0.2 48.6 1.91 15 0.59 20.6 0.81 25 0.98 1.3 0.05 100
4CLF1B 4 - 04 6.4 0.25 48.6 1.91 15 0.59 20.6 0.81 25 0.98 1.7 0.07 50
3CLF1B 3 4 03 7 0.28 52.6 2.07 15 0.59 20.6 0.81 28 1.1 2.4 0.09 50
2CLF1B 2 4 02 8 0.31 52.6 2.07 15.3 0.6 20.6 0.81 28 1.1 2.6 0.1 25
1CLF1B 1 2 01 9.1 0.36 56.1 2.21 17.1 0.67 23.1 0.91 28 1.1 2.7 0.11 25
10CLF1B 1/0 1 10 9.9 0.39 63.5 2.5 18.9 0.74 28 1.1 30.5 1.2 3.2 0.13 25
20CLF1B 2/0 1/0 20 11.2 0.44 68 2.68 20.7 0.81 27 1.06 35 1.38 3.0 0.12 15
30CLF1B 3/0 2/0 30 12.5 0.49 71 2.8 22.9 0.9 27 1.06 36 1.42 3.2 0.13 15
40CLF1B 4/0 3/0 40 13.9 0.55 71 2.8 25.4 1 27 1.06 36 1.42 3.4 0.13 15
250CLF1B 250 4/0 250 15.1 0.59 77 3.03 27.7 1.09 27 1.06 40.5 1.59 3.8 0.15 10
300CLF1B 300 250 G,H 300 16.7 0.66 86 3.39 30.2 1.19 27 1.06 49.5 1.95 3.8 0.15 10
350CLF1B 350 250 G,H,I,K,M 262 DLO 350 17.8 0.7 88 3.46 32.4 1.28 27 1.06 50 1.97 4.2 0.17 5
400CLF1B 400 300 G,H,I,K,M 313 DLO 400 19.4 0.76 98 3.86 35.2 1.39 35.5 1.4 50.5 1.99 4.5 0.18 5
500CLF1B 500 350 G,H,I,K,M 373 DLO 500 21.2 0.83 105 4.13 39.1 1.54 35.5 1.4 57.5 2.26 5.5 0.22 5
600CLF1B 600 400 G,H,I,K,M 444 DLO 600 23.5 0.93 108 4.25 43.6 1.72 38 1.5 57.5 2.26 6.4 0.25 1
700CLF1B 700 500 G,H,I,K,M 535 DLO 700 25 0.98 131 5.16 45 1.77 47 1.85 67 2.64 6.8 0.27 1
750CLF1B 750 600 G,H,I 646 DLO 750 26.2 1.03 131 5.16 48.3 1.9 47 1.85 67 2.64 6.8 0.27 1
1000CLF1B 1000 750 G,H,I 777 DLO 1000 30.2 1.19 144 5.67 55.4 2.18 47 1.85 80 3.15 8.4 0.33 1
