MV Heavy Duty Copper Compression Cable Lug - Flared Entry Long Barrel with 2 Stud Holes - Inspection Window

Description

These flared entry products have been designed and third party certified to UL 486A-486B, for high quality and reliable crimping. Long barrel compression cable lugs enable additional crimps, offering increased electrical and mechanical properties. Manufactured from high purity, oxygen-free, seamless copper tube (C110/CW009A), these cable lugs are precisely dimensioned to achieve optimal crimping with suitable conductors. The lugs are annealed to enhance durability, minimising risk of fracture between the palm and barrel. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection. There is a large inspection window to visually inspect conductor insertion; the inspection window can be removed as an option - see data sheet CLF2. The centres of the two stud holes are detailed in the dimensional table. Custom stud hole dimensions are available on request.

Features

  • Sizes to suit cables 8 AWG up to 1,000 kcmil
  • Third Party Certified to UL 486A-486B
  • Manufactured from high purity (99.9%) copper seamless tube (BS EN 13600)
  • Annealed and electrolytically tin plated for reliable crimping, with oxidation and corrosion resistance
  • Colour coded with enhanced marking on the barrel for simple die selection, inspection and traceability
  • CMP crimping die available for optimal crimping
  • Flared entry to barrel for use with class 5 & 6 conductors
  • Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
  • Crimping die index numbers match wire size; refer to CMP compatible die chart for more information

Additional Information

Certification
cULus Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/085aa78a/67bec66a244c9860a59ae4aa/CULUS-approved.png
CSA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/95c6667c/686f8d1021676f0b5e0002d4/CSA.png
Technical Specification
Barrel Type Long
Duty Type Heavy Duty
Entry Type Flared
Lugs Material Tin Plated Copper
Max Voltage of Application 35 kV
Number Of Stud Holes 2
Palm Angle Straight
Temperature Rating Up to 90 Degrees Celsius

Downloads

Certificates

Product Selector

1

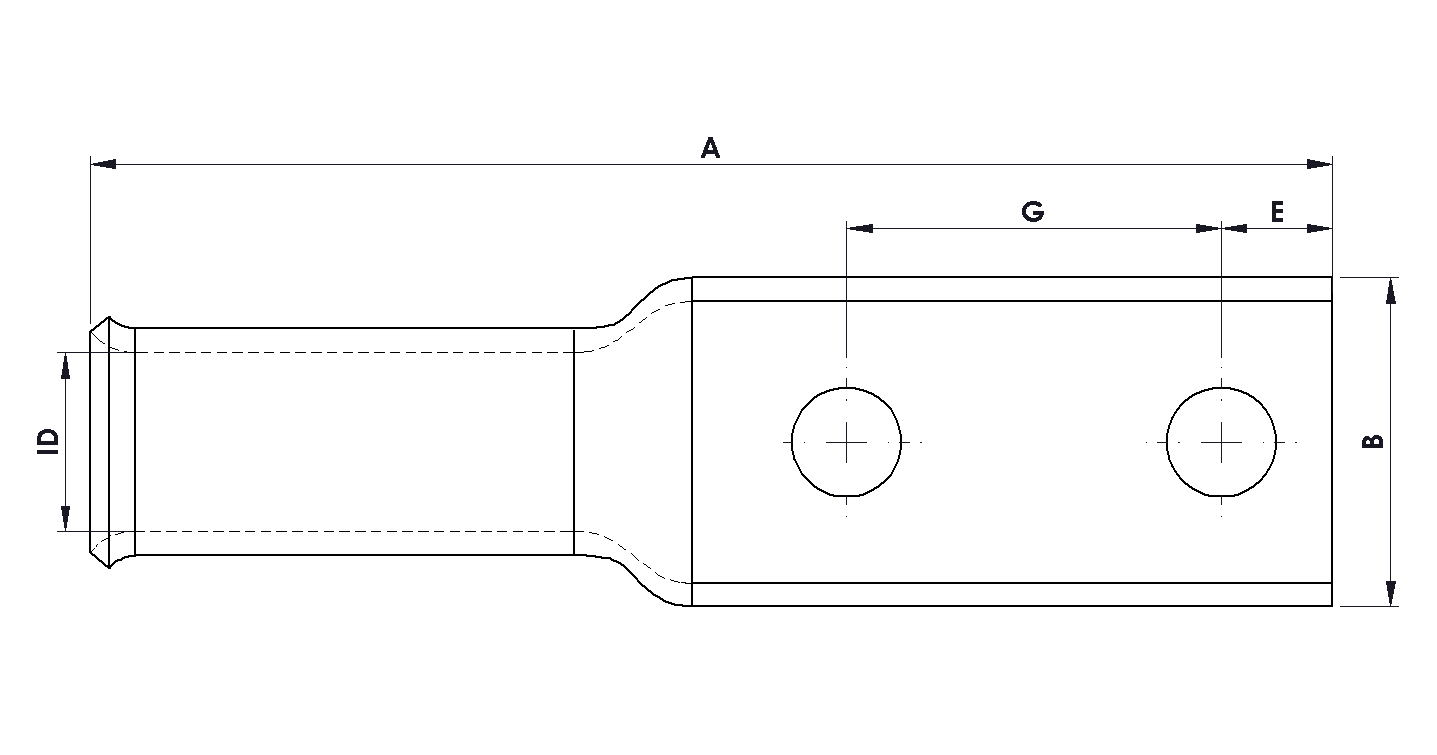

Part Number Cable Size (AWG/MCM/kcmil) Flex Cable Size (AWG/MCM/kcmil) Hole Stud Size Die Index No. Internal Diameter (ID) Internal Diameter (ID) - Inches Overall Length (A) Overall Length (A) - Inches Palm Width (B) Palm Width (B) - Inches Palm Length (C) Palm Length (C) - Inches Barrel Length (D) Barrel Length (D) - Inches Stud Hole Distance (E) Palm Thickness (F) Palm Thickness (F) - Inches Stud Hole Spacing (G) Stud Hole Distance (E) - Inches Pack Qty
8CLF21058W 8 8 #10 08 4.4 0.17 55.5 2.19 10.7 0.42 32 1.26 20.5 0.81 7.1 2.0 0.08 15.9 0.28 100
8CLF21458W 8 8 1/4 08 4.4 0.17 55.5 2.19 10.7 0.42 32 1.26 20.5 0.81 7.1 2.0 0.08 15.9 0.28 100
8CLF2141W 8 8 1/4 08 4.4 0.17 69.5 2.74 10.7 0.42 46 1.81 20.5 0.81 9.7 2.0 0.08 25.4 0.38 100
8CLF21434W 8 8 1/4 08 4.4 0.17 58.5 2.3 10.7 0.42 35 1.38 20.5 0.81 8.1 2.0 0.08 19.1 0.32 100
8CLF2516134W 8 8 5/16 08 4.4 0.17 99.5 3.92 14 0.55 76 2.99 20.5 0.81 15.7 1.6 0.06 44.5 0.62 100
8CLF2381W 8 8 3/8 08 4.4 0.17 69.5 2.74 14 0.55 46 1.81 20.5 0.81 9.7 1.6 0.06 25.4 0.38 100
8CLF238134W 8 8 3/8 08 4.4 0.17 99.5 3.92 14 0.55 76 2.99 20.5 0.81 15.7 1.6 0.06 44.5 0.62 100
6CLF21434W 6 6 1/4 06 5.2 0.2 63 2.48 10.7 0.42 35 1.38 25 0.98 7.1 2.1 0.08 19.1 0.28 100
6CLF21412W 6 6 1/4 06 5.2 0.2 57 2.24 10.7 0.42 29 1.14 25 0.98 7.1 2.1 0.08 12.7 0.28 100
6CLF21458W 6 6 1/4 06 5.2 0.2 60 2.36 10.7 0.42 32 1.26 25 0.98 7.1 2.1 0.08 15.9 0.28 100
6CLF23834W 6 6 3/8 06 5.2 0.2 69 2.72 14 0.55 41 1.61 25 0.98 8.1 1.6 0.06 19.1 0.32 100
6CLF2381W 6 6 3/8 06 5.2 0.2 74 2.91 14 0.55 46 1.81 25 0.98 9.7 1.6 0.06 25.4 0.38 100
6CLF212134W 6 6 1/2 06 5.2 0.2 104 4.09 21 0.83 76 2.99 25 0.98 15.7 2.1 0.08 44.5 0.62 100
4CLF21434W 4 - 1/4 04 6.4 0.25 63 2.48 12.4 0.49 35 1.38 25 0.98 7.1 2.2 0.09 19.1 0.28 50
4CLF21458W 4 - 1/4 04 6.4 0.25 60 2.36 12.4 0.49 32 1.26 25 0.98 7.1 2.2 0.09 15.9 0.28 50
4CLF2141W 4 - 1/4 04 6.4 0.25 74 2.91 12.4 0.49 46 1.81 25 0.98 9.7 2.2 0.09 25.4 0.38 50
4CLF25161W 4 - 5/16 04 6.4 0.25 74 2.91 14 0.55 46 1.81 25 0.98 9.7 1.8 0.07 25.4 0.38 50
4CLF23834W 4 - 3/8 04 6.4 0.25 74 2.91 14 0.55 41.1 1.62 25 0.98 7.1 1.8 0.07 19.1 0.28 50
4CLF2381W 4 - 3/8 04 6.4 0.25 74 2.91 14 0.55 46 1.81 25 0.98 9.7 1.8 0.07 25.4 0.38 50
4CLF212134W 4 - 1/2 04 6.4 0.25 104 4.09 22 0.87 76 2.99 25 0.98 15.7 3.0 0.12 44.5 0.62 50
3CLF21434W 3 4 1/4 03 7 0.28 67 2.64 12.7 0.5 35 1.38 28 1.1 7.1 2.4 0.09 19.1 0.28 50
3CLF21458W 3 4 1/4 03 7 0.28 64 2.52 12.7 0.5 32 1.26 28 1.1 7.1 2.4 0.09 15.9 0.28 50
3CLF251634W 3 4 5/16 03 7 0.28 73 2.87 14 0.55 41 1.61 28 1.1 8.1 2.2 0.09 19.1 0.32 50
3CLF2381W 3 4 3/8 03 7 0.28 78 3.07 15 0.59 46 1.81 28 1.1 9.7 2.0 0.08 25.4 0.38 50
2CLF21434W 2 4 1/4 02 8 0.31 67 2.64 15.3 0.6 35 1.38 28 1.1 7.1 2.6 0.1 19.1 0.28 50
2CLF21458W 2 4 1/4 02 8 0.31 64 2.52 15.3 0.6 32 1.26 28 1.1 7.1 2.6 0.1 15.9 0.28 50
2CLF2141W 2 4 1/4 02 8 0.31 78 3.07 15.3 0.6 46 1.81 28 1.1 9.7 2.6 0.1 25.4 0.38 50
2CLF251634W 2 4 5/16 02 8 0.31 73 2.87 15.3 0.6 41 1.61 28 1.1 8.1 2.6 0.1 19.1 0.32 50
2CLF251678W 2 4 5/16 02 8 0.31 73 2.87 15.3 0.6 41 1.61 28 1.1 8.1 2.6 0.1 22.2 0.32 50
2CLF23834W 2 4 3/8 02 8 0.31 73 2.87 15.3 0.6 41 1.61 28 1.1 8.1 2.6 0.1 19.1 0.32 50
2CLF2381W 2 4 3/8 02 8 0.31 78 3.07 15.3 0.6 46 1.81 28 1.1 9.7 2.6 0.1 25.4 0.38 50
2CLF212134W 2 4 1/2 02 8 0.31 108 4.25 20.5 0.81 76 2.99 28 1.1 15.7 2.0 0.08 44.5 0.62 50
1CLF21458W 1 2 1/4 01 9.1 0.36 65 2.56 17.1 0.67 32 1.26 28 1.1 7.1 2.7 0.11 15.9 0.28 25
1CLF21434W 1 2 1/4 01 9.1 0.36 68 2.68 17.1 0.67 35 1.38 28 1.1 7.1 2.7 0.11 19.1 0.28 25
1CLF251678W 1 2 5/16 01 9.1 0.36 74 2.91 17 0.67 41 1.61 28 1.1 8.1 2.7 0.11 22.2 0.32 25
1CLF23878W 1 2 3/8 01 9.1 0.36 74 2.91 17.1 0.67 41 1.61 28 1.1 8.1 2.7 0.11 22.2 0.32 25
1CLF2381W 1 2 3/8 01 9.1 0.36 79 3.11 17.1 0.67 46 1.81 28 1.1 9.7 2.7 0.11 25.4 0.38 25
1CLF212134W 1 2 1/2 01 9.1 0.36 109 4.29 19 0.75 76 2.99 28 1.1 15.7 2.5 0.1 44.5 0.62 25
10CLF21458W 1/0 1 1/4 10 9.9 0.39 67.5 2.66 18.9 0.74 32 1.26 30.5 1.2 7.1 3.2 0.13 15.9 0.28 25
10CLF251678W 1/0 1 5/16 10 9.9 0.39 76.5 3.01 18.9 0.74 41 1.61 30.5 1.2 8.1 3.2 0.13 22.2 0.32 25
10CLF23834W 1/0 1 3/8 10 9.9 0.39 76.5 3.01 18.9 0.74 41 1.61 30.5 1.2 8.1 3.2 0.13 19.1 0.32 25
10CLF23878W 1/0 1 3/8 10 9.9 0.39 76.5 3.01 18.9 0.74 46 1.81 30.5 1.2 9.7 3.2 0.13 22.2 0.38 25
10CLF2381W 1/0 1 3/8 10 9.9 0.39 81.5 3.21 18.9 0.74 46 1.81 30.5 1.2 9.7 3.2 0.13 22.2 0.38 25
10CLF238134W 1/0 1 3/8 10 9.9 0.39 111.5 4.39 18.9 0.74 76 2.99 30.5 1.2 15.7 3.2 0.13 44.5 0.62 25
10CLF212134W 1/0 1 1/2 10 9.9 0.39 111.5 4.39 18.9 0.74 76 2.99 30.5 1.2 15.7 3.2 0.13 44.5 0.62 25
20CLF21434W 2/0 1/0 1/4 20 11.2 0.44 76 2.99 20.7 0.81 35 1.38 35 1.38 7.1 3.0 0.12 19.1 0.28 25
20CLF21458W 2/0 1/0 1/4 20 11.2 0.44 73 2.87 20.7 0.81 32 1.26 35 1.38 7.1 3.0 0.12 15.9 0.28 25
20CLF2141W 2/0 1/0 1/4 20 11.2 0.44 87 3.43 20.7 0.81 46 1.81 35 1.38 9.7 3.0 0.12 25.4 0.38 25
20CLF2381W 2/0 1/0 3/8 20 11.2 0.44 87 3.43 20.7 0.81 46 1.81 35 1.38 9.7 3.0 0.12 25.4 0.38 25
20CLF238134W 2/0 1/0 3/8 20 11.2 0.44 117 4.61 20.7 0.81 76 2.99 35 1.38 15.7 3.0 0.12 44.5 0.62 25
20CLF212134W 2/0 1/0 1/2 20 11.2 0.44 117 4.61 20.7 0.81 76 2.99 35 1.38 15.7 3.0 0.12 44.5 0.62 25
30CLF21434W 3/0 2/0 1/4 30 12.5 0.49 78 3.07 22.9 0.9 35 1.38 35 1.38 7.1 3.2 0.13 19.1 0.28 15
30CLF21458W 3/0 2/0 1/4 30 12.5 0.49 75 2.95 22.9 0.9 32 1.26 35 1.38 7.1 3.2 0.13 15.9 0.28 15
30CLF25161W 3/0 2/0 5/16 30 12.5 0.49 89 3.5 22.9 0.9 46 1.81 35 1.38 8.1 3.2 0.13 25.4 0.32 15
30CLF2381W 3/0 2/0 3/8 30 12.5 0.49 89 3.5 22.9 0.9 46 1.81 35 1.38 9.7 3.2 0.13 25.4 0.38 15
30CLF238134W 3/0 2/0 3/8 30 12.5 0.49 119 4.69 22.9 0.9 76 2.99 35 1.38 15.7 3.2 0.13 44.5 0.62 15
30CLF212134W 3/0 2/0 1/2 30 12.5 0.49 119 4.69 22.9 0.9 76 2.99 35 1.38 15.7 3.2 0.13 44.5 0.62 15
40CLF21434W 4/0 3/0 1/2 40 13.9 0.55 79 3.11 25.4 1 35 1.38 36 1.42 7.1 3.4 0.13 19.1 0.28 15
40CLF214134W 4/0 3/0 1/4 40 13.9 0.55 120 4.72 25.4 1 76 2.99 36 1.42 7.1 3.4 0.13 44.5 0.28 15
40CLF23858W 4/0 3/0 3/8 40 13.9 0.55 76 2.99 25.4 1 32 1.26 36 1.42 9.7 3.4 0.13 15.9 0.38 15
40CLF2381W 4/0 3/0 3/8 40 13.9 0.55 90 3.54 25.4 1 46 1.81 36 1.42 9.7 3.4 0.13 25.4 0.38 15
40CLF212134W 4/0 3/0 1/2 40 13.9 0.55 120 4.72 25.4 1 76 2.99 36 1.42 15.7 3.4 0.13 44.5 0.62 15
250CLF2381W 250 4/0 3/8 250 15.1 0.59 96 3.78 27.7 1.09 46 1.81 41 1.61 9.7 3.8 0.15 25.4 0.38 10
250CLF212134W 250 4/0 1/2 250 15.1 0.59 126 4.96 27.7 1.09 76 2.99 41 1.61 15.7 3.8 0.15 44.5 0.62 10
300CLF2381W 300 250 G,H 3/8 300 16.7 0.66 105 4.13 30.2 1.19 46 1.81 50 1.97 9.7 3.8 0.15 25.4 0.38 10
300CLF212134W 300 250 G,H 1/2 300 16.7 0.66 135 5.31 30.2 1.19 76 2.99 50 1.97 15.7 3.8 0.15 44.5 0.62 10
350CLF2381W 350 250 G,H,I,K,M 262 DLO 3/8 350 17.8 0.7 107 4.21 32.4 1.28 46 1.81 50 1.97 9.7 4.2 0.17 25.4 0.38 5
350CLF212134W 350 250 G,H,I,K,M 262 DLO 1/2 350 17.8 0.7 137 5.39 32.4 1.28 76 2.99 50 1.97 15.7 4.2 0.17 44.5 0.62 5
400CLF2381W 400 300 G,H,I,K,M 313 DLO 3/8 400 19.4 0.76 109 4.29 35.2 1.39 46 1.81 50 1.97 9.7 4.5 0.18 25.4 0.38 5
400CLF212134W 400 300 G,H,I,K,M 313 DLO 1/2 400 19.4 0.76 139 5.47 35.2 1.39 76 2.99 50 1.97 15.7 4.5 0.18 44.5 0.62 5
500CLF2381W 500 350 G,H,I,K,M 373 DLO 3/8 500 21.2 0.83 116 4.57 39.1 1.54 46 1.81 57 2.24 9.7 5.5 0.22 25.4 0.38 5
500CLF212134W 500 350 G,H,I,K,M 373 DLO 1/2 500 21.2 0.83 146 5.75 39.1 1.54 76 2.99 57 2.24 15.7 5.5 0.22 44.5 0.62 5
600CLF2381W 600 400 G,H,I,K,M 444 DLO 3/8 600 23.5 0.93 117 4.61 43.6 1.72 46 1.81 57 2.24 9.7 6.4 0.25 25.4 0.38 1
600CLF212134W 600 400 G,H,I,K,M 444 DLO 1/2 600 23.5 0.93 147 5.79 43.6 1.72 76 2.99 57 2.24 15.7 6.4 0.25 44.5 0.62 1
700CLF212134W 700 500 G,H,I,K,M 535 DLO 1/2 700 25 0.98 160 6.3 45 1.77 76 2.99 67 2.64 15.7 6.8 0.27 44.5 0.62 1
700CLF258134W 700 500 G,H,I,K,M 535 DLO 5/8 700 25 0.98 160 6.3 45 1.77 76 2.99 67 2.64 15.7 6.8 0.27 44.5 0.62 1
750CLF2381W 750 600 G,H,I 646 DLO 3/8 750 26.2 1.03 130 5.12 48.3 1.9 46 1.81 67 2.64 9.7 6.8 0.27 25.4 0.38 1
750CLF212134W 750 600 G,H,I 646 DLO 1/2 750 26.2 1.03 160 6.3 48.3 1.9 76 2.99 67 2.64 15.7 6.8 0.27 44.5 0.62 1
1000CLF212134W 1000 750 G,H,I 777 DLO 1/2 1000 30.2 1.19 173 6.81 55.4 2.18 76 2.99 80 3.15 15.7 8.4 0.33 44.5 0.62 1
1000CLF258134W 1000 750 G,H,I 777 DLO 5/8 1000 30.2 1.19 173 6.81 55.4 2.18 76 2.99 80 3.15 15.7 8.4 0.33 44.5 0.62 1
