CNF2B Cable Lug

ETIM Classification

EC001051

Heavy Duty Copper Compression Cable Lug - Flared Entry Standard Barrel with Blank Palm for 2 Holes - Inspection Window

Description

These flared entry products have been designed and third party certified to UL 486A-486B and CSA C22.2 No. 65, for high quality and reliable crimping. Manufactured from high purity, oxygen-free, seamless copper tube (C110/CW009A), these cable lugs are precisely dimensioned to achieve optimal crimping with suitable conductors. The lugs are annealed to enhance durability, minimising risk of fracture between the palm and barrel. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection. There is a large inspection window to visually inspect conductor insertion. Long, blank palms enable custom stud hole drilling on installation, to suit connection requirements.

Features

  • Sizes to suit cables 8 AWG up to 1,000 kcmil
  • Long, blank palm to be drilled on installation to suit connection requirements
  • Third Party Certified to UL 486A-486B and CSA C22.2 No. 65
  • Manufactured from high purity (99.9%) copper seamless tube (BS EN 13600)
  • Annealed and electrolytically tin plated for reliable crimping, with oxidation and corrosion resistance
  • Colour coded with enhanced marking on the barrel for simple die selection, inspection and traceability
  • CMP crimping die available for optimal crimping
  • Flared entry to barrel for ease of conductor insertion; beneficial for fine stranded conductors
  • Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
  • Crimping die index numbers match wire size; refer to CMP compatible die chart for more information

Additional Information

Certification
cULus Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/085aa78a/67bec66a244c9860a59ae4aa/CULUS-approved.png
CSA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/95c6667c/686f8d1021676f0b5e0002d4/CSA.png
Technical Specification
Barrel Type Standard
Duty Type Heavy Duty
Entry Type Flared
Lugs Material Tin Plated Copper
Max Voltage of Application 35 kV
Number Of Stud Holes 0
Palm Angle Straight
Temperature Rating Up to 90 Degrees Celsius

Downloads

Certificates

Product Selector

1

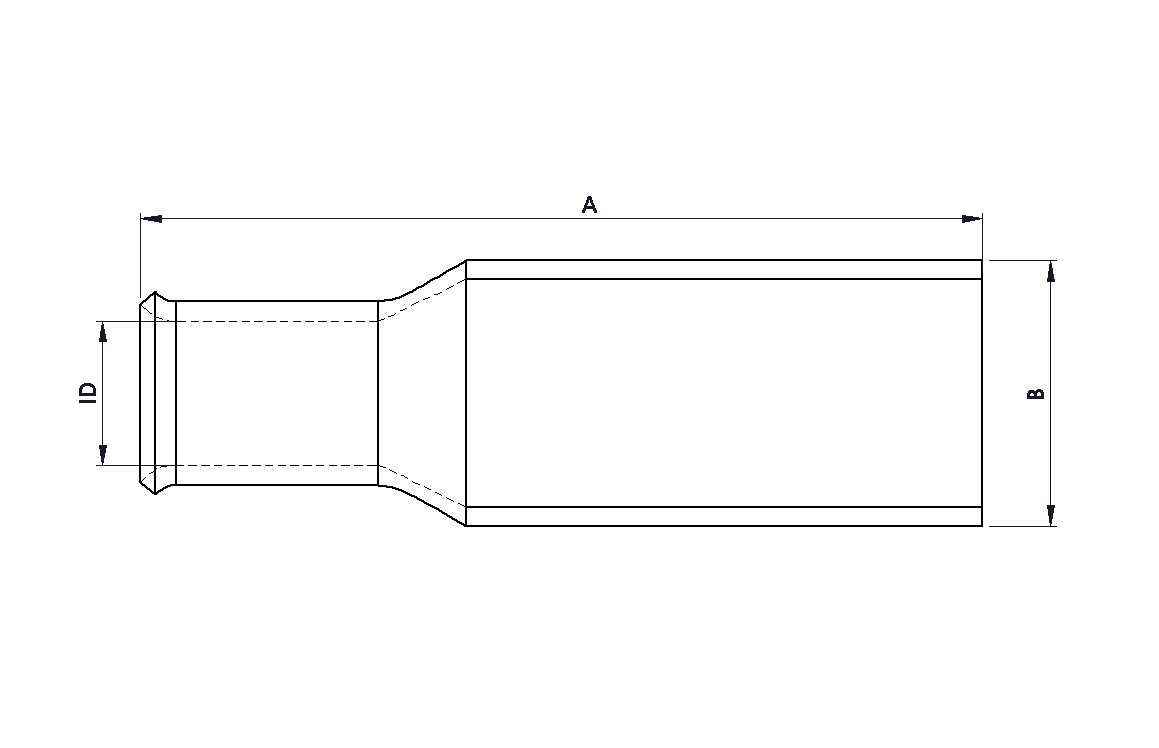

Part Number Cable Size (AWG/MCM/kcmil) Flex Cable Size (AWG/MCM/kcmil) Die Index No. Internal Diameter (ID) Internal Diameter (ID) - Inches Overall Length (A) Overall Length (A) - Inches Palm Width (B) Palm Width (B) - Inches Palm Length (C) Palm Length (C) - Inches Barrel Length (D) Barrel Length (D) - Inches Palm Thickness (F) Palm Thickness (F) - Inches Pack Qty
8CNF2B 8 8 08 4.4 0.17 60.2 2.37 14.2 0.56 46 1.81 11.2 0.44 1.3 0.05 100
6CNF2B 6 6 06 5.2 0.2 67 2.64 14.5 0.57 46 1.81 18 0.71 1.6 0.06 100
4CNF2B 4 - 04 6.4 0.25 68 2.68 14.5 0.57 46 1.81 19 0.75 1.7 0.07 50
3CNF2B 3 4 03 7 0.28 71 2.8 15 0.59 46 1.81 21 0.83 2.0 0.08 50
2CNF2B 2 4 02 8 0.31 101 3.98 15.3 0.6 76 2.99 21 0.83 2.6 0.1 25
1CNF2B 1 2 01 9.1 0.36 72 2.83 17.1 0.67 46 1.81 21 0.83 2.7 0.11 25
10CNF2B 1/0 1 10 9.9 0.39 102 4.02 18.9 0.74 76 2.99 21 0.83 3.2 0.13 25
20CNF2B 2/0 1/0 20 11.2 0.44 106 4.17 20.7 0.81 76 2.99 24 0.94 3.0 0.12 15
30CNF2B 3/0 2/0 30 12.5 0.49 109 4.29 22.9 0.9 76 2.99 25 0.98 3.2 0.13 15
40CNF2B 4/0 3/0 40 13.9 0.55 109 4.29 25.4 1 76 2.99 25 0.98 3.4 0.13 15
250CNF2B 250 4/0 250 15.1 0.59 112 4.41 27.7 1.09 76 2.99 27 1.06 3.8 0.15 10
300CNF2B 300 250 G,H 300 16.7 0.66 112 4.41 30.2 1.19 76 2.99 27 1.06 3.8 0.15 10
350CNF2B 350 250 G,H,I,K,M 262 DLO 350 17.8 0.7 115 4.53 32.4 1.28 76 2.99 28 1.1 4.2 0.17 5
400CNF2B 400 300 G,H,I,K,M 313 DLO 400 19.4 0.76 119 4.69 35.2 1.39 76 2.99 30 1.18 4.5 0.18 5
500CNF2B 500 350 G,H,I,K,M 373 DLO 500 21.2 0.83 124 4.88 39.1 1.54 76 2.99 35 1.38 5.5 0.22 5
600CNF2B 600 400 G,H,I,K,M 444 DLO 600 23.5 0.93 128 5.04 43.6 1.72 76 2.99 38 1.5 6.4 0.25 1
700CNF2B 700 500 G,H,I,K,M 535 DLO 700 25 0.98 140 5.51 45.2 1.78 76 2.99 47 1.85 6.8 0.27 1
750CNF2B 750 600 G,H,I 646 DLO 750 26.2 1.03 140 5.51 48.3 1.9 76 2.99 47 1.85 6.8 0.27 1
1000CNF2B 1000 750 G,H,I 777 DLO 1000 30.2 1.19 141.5 5.57 55.6 2.19 76 2.99 48.5 1.91 8.1 0.32 1
