CNP1-N Cable Lug

ETIM Classification

EC001051

Heavy Duty Copper Compression Cable Lug - Parallel Entry Standard Barrel with 1 Stud Hole - Narrow Palm - Inspection Window

Description

These products have been designed and third party certified to UL 486A-486B and CSA C22.2 No. 65, for high quality and reliable crimping. Narrow palm cable lugs have a contained palm width to ensure a connection can be made in space constrained installations. Manufactured from high purity, oxygen-free, seamless copper tube (C110/CW009A), these cable lugs are precisely dimensioned to achieve optimal crimping with suitable conductors. The lugs are annealed to enhance durability, minimising risk of fracture between the palm and barrel. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection. There is a large inspection window to visually inspect conductor insertion. Standard stud hole sizes are detailed in the dimension table. Custom stud hole dimensions are available on request.

Features

  • Sizes to suit cables 8 AWG up to 1,000 kcmil
  • Narrow palm width for space constrained connections
  • Third Party Certified to UL 486A-486B and CSA C22.2 No. 65
  • Manufactured from high purity (99.9%) copper seamless tube (BS EN 13600)
  • Annealed and electrolytically tin plated for reliable crimping, with oxidation and corrosion resistance
  • Colour coded with enhanced marking on the barrel for simple die selection, inspection and traceability
  • CMP crimping die available for optimal crimping
  • Bevelled entry to aid conductor insertion
  • Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
  • Crimping die index numbers match wire size; refer to CMP compatible die chart for more information

Additional Information

Certification
cULus Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/085aa78a/67bec66a244c9860a59ae4aa/CULUS-approved.png
CSA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/95c6667c/686f8d1021676f0b5e0002d4/CSA.png
Technical Specification
Barrel Type Standard
Duty Type Heavy Duty
Entry Type Parallel
Lugs Material Tin Plated Copper
Max Voltage of Application 35 kV
Number Of Stud Holes 1
Palm Angle Straight
Temperature Rating Up to 90 Degrees Celsius

Downloads

Certificates

Product Selector

1

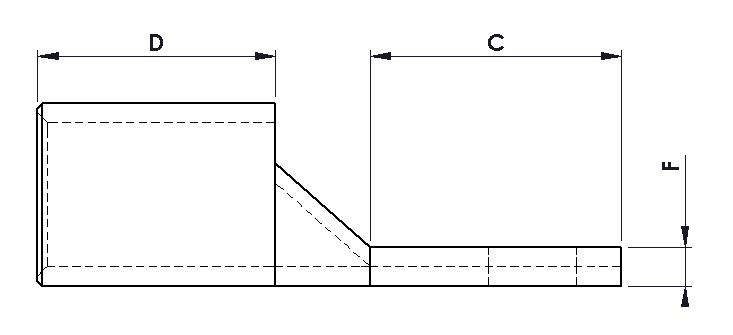

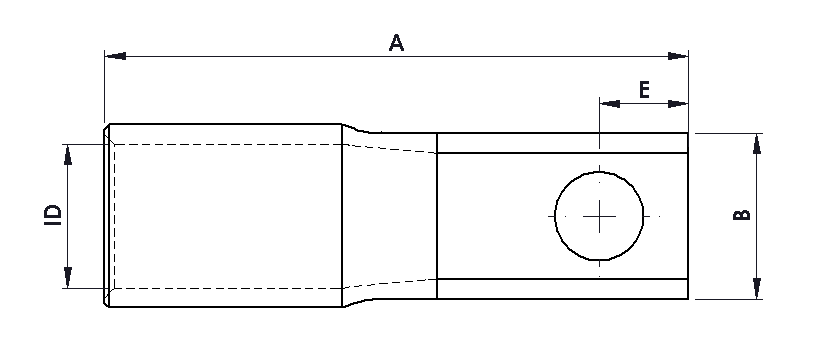

Part Number Cable Size (AWG/MCM/kcmil) Flex Cable Size (AWG/MCM/kcmil) Hole Stud Size Die Index No. Internal Diameter (ID) Internal Diameter (ID) - Inches Overall Length (A) Overall Length (A) - Inches Palm Width (B) Palm Width (B) - Inches Palm Length (C) Palm Length (C) - Inches Barrel Length (D) Barrel Length (D) - Inches Stud Hole Distance (E) Palm Thickness (F) Palm Thickness (F) - Inches Stud Hole Distance (E) - Inches Pack Qty
8CNP110N 8 8 #10 08 4.4 0.17 30.5 1.2 7.37 0.29 15 0.59 12.5 0.49 7 2.3 0.09 0.28 100
6CNP110N 6 6 #10 06 5.2 0.2 38 1.5 7.37 0.29 17 0.67 18 0.71 7.5 2.3 0.09 0.3 100
4CNP110N 4 - #10 04 6.4 0.25 38 1.5 10.16 0.4 17 0.67 18 0.71 8 2.3 0.09 0.31 100
4CNP114N 4 - 1/4 04 6.4 0.25 38 1.5 10.16 0.4 17 0.67 18 0.71 8 2.3 0.09 0.31 100
3CNP114N 3 4 1/4 03 7 0.28 45.6 1.8 10.41 0.41 20.6 0.81 21 0.83 8 2.0 0.08 0.31 100
3CNP1516N 3 4 5/16 03 7 0.28 45.6 1.8 12.45 0.49 20.6 0.81 21 0.83 8 2.0 0.08 0.31 100
2CNP114N 2 4 1/4 02 8 0.31 45.6 1.8 12.19 0.48 20.6 0.81 21 0.83 9.4 2.8 0.11 0.37 50
2CNP1516N 2 4 5/16 02 8 0.31 45.6 1.8 12.45 0.49 20.6 0.81 21 0.83 9.4 2.8 0.11 0.37 50
1CNP114N 1 2 1/4 01 9.1 0.36 46.6 1.83 12.7 0.5 20.6 0.81 21 0.83 9.4 2.5 0.1 0.37 50
1CNP1516N 1 2 5/16 01 9.1 0.36 46.6 1.83 12.7 0.5 20.6 0.81 21 0.83 9.4 2.5 0.1 0.37 50
10CNP114N 1/0 1 1/4 10 9.9 0.39 46.6 1.83 12.19 0.48 20.6 0.81 21 0.83 9.4 3.0 0.12 0.37 25
10CNP1516N 1/0 1 5/16 10 9.9 0.39 46.6 1.83 15.75 0.62 20.6 0.81 21 0.83 9.4 3.0 0.12 0.37 25
10CNP138N 1/0 1 3/8 10 9.9 0.39 46.6 1.83 15.75 0.62 20.6 0.81 21 0.83 9.4 3.0 0.12 0.37 25
20CNP114N 2/0 1/0 1/4 20 11.2 0.44 57 2.24 15.75 0.62 27 1.06 24 0.94 12 3.0 0.12 0.47 25
20CNP1516N 2/0 1/0 5/16 20 11.2 0.44 57 2.24 15.75 0.62 27 1.06 24 0.94 12 3.3 0.13 0.47 25
20CNP138N 2/0 1/0 3/8 20 11.2 0.44 57 2.24 15.75 0.62 27 1.06 24 0.94 12 3.0 0.12 0.47 25
30CNP114N 3/0 2/0 1/4 30 12.5 0.49 60 2.36 19.3 0.76 27 1.06 25 0.98 12 3.0 0.12 0.47 25
30CNP1516N 3/0 2/0 5/16 30 12.5 0.49 60 2.36 19.3 0.76 27 1.06 25 0.98 12 3.3 0.13 0.47 25
30CNP138N 4/0 3/0 3/8 40 12.5 0.49 60 2.36 19.3 0.76 27 1.06 25 0.98 12 3.0 0.12 0.47 25
40CNP114N 4/0 3/0 1/4 40 13.9 0.55 60 2.36 19.3 0.76 27 1.06 25 0.98 12 3.6 0.14 0.47 25
40CNP1516N 4/0 3/0 5/16 40 13.9 0.55 60 2.36 19.3 0.76 27 1.06 25 0.98 12 3.6 0.14 0.47 25
40CNP138N 4/0 3/0 3/8 40 13.9 0.55 60 2.36 19.3 0.76 27 1.06 25 0.98 12 3.6 0.14 0.47 25
250CNP138N 250 4/0 3/8 250 15.1 0.59 63 2.48 19.3 0.76 27 1.06 27 1.06 12 4.1 0.16 0.47 15
300CNP112N 300 250 G,H 1/2 300 16.7 0.66 63 2.48 24.38 0.96 27 1.06 27 1.06 13.2 4.1 0.16 0.52 15
350CNP112N 350 250 G,H,I,K,M 262 DLO 1/2 350 17.8 0.7 66 2.6 24.38 0.96 27 1.06 28 1.1 13.2 4.6 0.18 0.52 15
400CNP112N 400 300 G,H,I,K,M 313 DLO 1/2 400 19.4 0.76 79 3.11 24.38 0.96 37 1.46 30 1.18 13.2 4.8 0.19 0.52 10
500CNP112N 500 350 G,H,I,K,M 373 DLO 1/2 500 21.2 0.83 83 3.27 24.38 0.96 37 1.46 35 1.38 13.2 5.8 0.23 0.52 5
600CNP112N 600 400 G,H,I,K,M 444 DLO 1/2 600 23.5 0.93 89 3.5 28.45 1.12 37 1.46 38 1.5 13.2 6.9 0.27 0.52 5
750CNP112N 750 600 G,H,I 646 DLO 1/2 750 26.2 1.03 111 4.37 33.02 1.3 47 1.85 47 1.85 17.5 6.9 0.27 0.69 1
750CNP158N 750 600 G,H,I 646 DLO 5/8 750 26.2 1.03 111 4.37 28.45 1.12 47 1.85 47 1.85 17.5 6.9 0.27 0.69 1
1000CNP112N 1000 750 G,H,I 777 DLO 1/2 1000 30.2 1.19 112.5 4.43 33.02 1.3 47 1.85 48.5 1.91 17.5 8.4 0.33 0.69 1
1000CNP158N 1000 750 G,H,I 777 DLO 5/8 1000 30.2 1.19 112.5 4.43 28.45 1.12 47 1.85 48.5 1.91 17.5 8.4 0.33 0.69 1
