CSDF1 Cable Lug

ETIM Classification

EC001051

Standard Duty Metric Copper Compression Cable Lug - Flared Entry Standard Barrel with 1 Stud Hole - Inspection Window

Description

These flared entry products have been designed and third party certified to IEC 61238-1 Class B, for high quality and reliable crimping. Manufactured from high purity, oxygen-free, seamless copper tube (C110/CW009A), these cable lugs are precisely dimensioned to achieve optimal crimping with suitable conductors. The lugs are annealed to enhance durability, minimising risk of fracture between the palm and barrel. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection. There is an inspection window to visually inspect conductor insertion; the inspection window can be removed as an option by adding suffix "X" - Example: 300CSDF112X. Standard stud hole sizes are detailed in the dimension table. Custom stud hole dimensions are available on request. Blank palms available on request; please contact CMP for more information.

Features

  • Sizes to suit conductors as per EN 60228 cables; 1.5 mm² up to 630 mm²
  • Third Party Certified to IEC 61238-1 Class B
  • Tested to UL 486A-486B
  • Manufactured from high purity (99.9%) copper seamless tube (BS EN 13600)
  • Annealed and electrolytically tin plated for reliable crimping, with oxidation and corrosion resistance
  • Clear marking for quick selection
  • CMP crimping die available for optimal crimping
  • Flared entry to barrel for ease of conductor insertion; beneficial for class 5 and 6 conductors
  • Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
  • Crimping die index numbers match CSA or wire size; refer to CMP compatible die chart for more information

Additional Information

Certification
IEC Certificate Number 12345
IEC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/6c9e4738/6597f72f43589004230000e4/ieclogo.jpg
Technical Specification
Barrel Type Standard
Entry Type Flared
Lugs Material Tin Plated Copper
Number Of Stud Holes 1
Palm Angle Straight
Temperature Rating Up to 90 Degrees Celsius

Downloads

Certificates

Product Selector

1

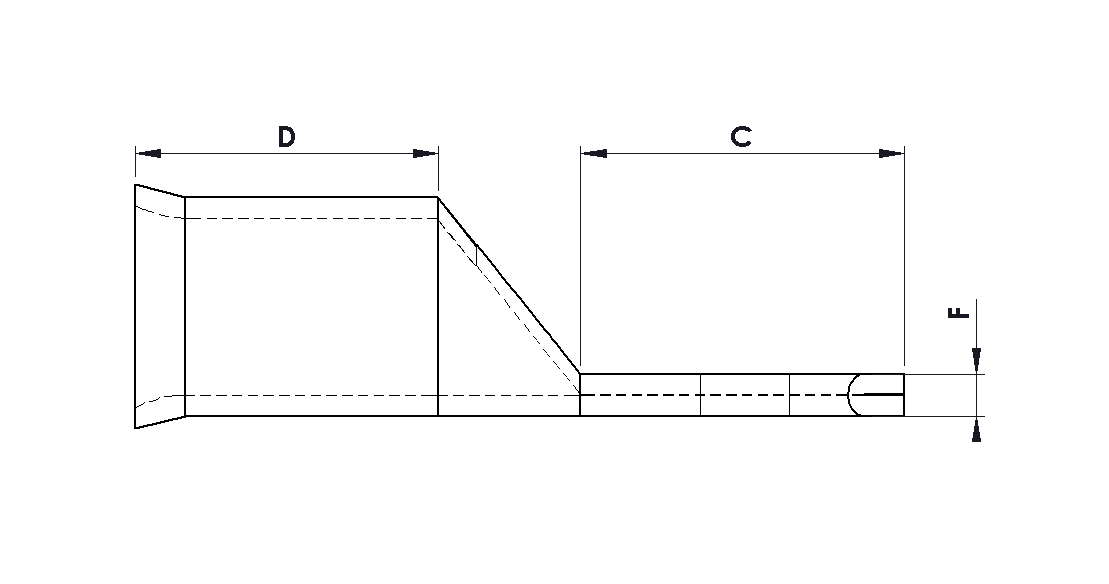

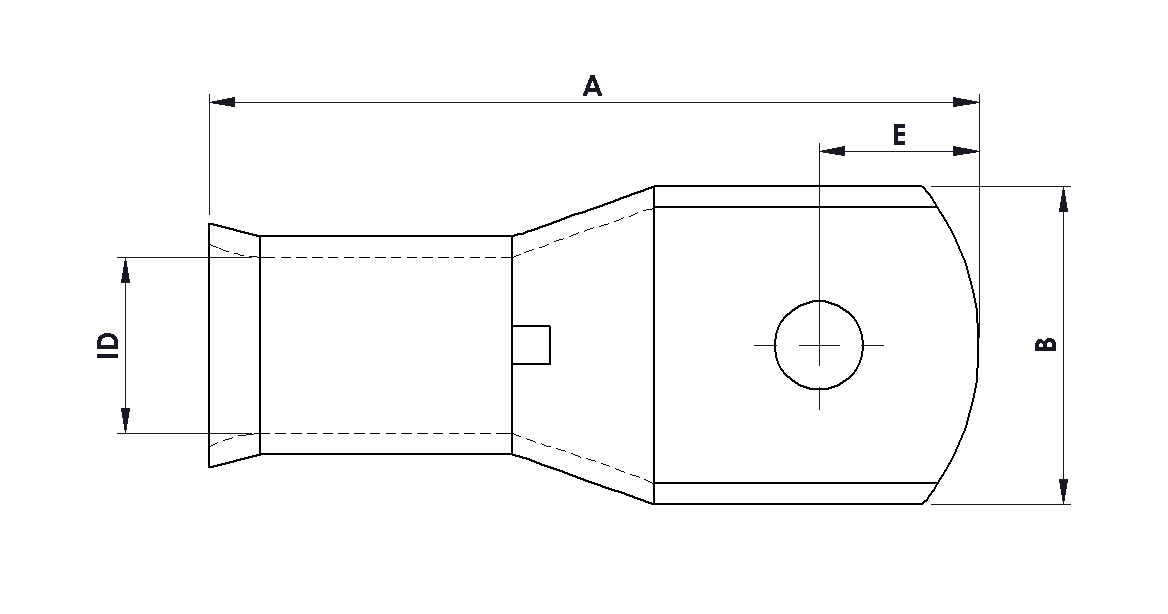

Part Number Cable Size (mm²) Hole Stud Size Die Index No. Internal Diameter (ID) Overall Length (A) Palm Width (B) Palm Length (C) Barrel Length (D) Stud Hole Distance (E) Palm Thickness (F) Pack Qty
0015CSDF104 1.5 M4 N/A 1.8 18.5 8 11 5.5 5.5 1.0 100
0015CSDF105 1.5 M5 N/A 1.8 19.5 8 12 5.5 6 1.0 100
0015CSDF106 1.5 M6 N/A 1.8 21.5 9.5 14 5.5 7 0.9 100
0025CSDF104 2.5 M4 N/A 2.4 21 8.5 11 8 5.5 0.9 100
0025CSDF105 2.5 M5 N/A 2.4 22 8.5 12 8 6 0.9 100
0025CSDF106 2.5 M6 N/A 2.4 24 9.5 14 8 7 0.8 100
0025CSDF108 2.5 M8 N/A 2.4 28 11 18 8 9 0.7 100
004CSDF104 4 M4 N/A 3.1 21 9.5 11 8 5.5 1.1 100
004CSDF105 4 M5 N/A 3.1 25 9.5 12 8 6 1.1 100
004CSDF106 4 M6 N/A 3.1 24 9.5 14 8 7 1.1 100
004CSDF108 4 M8 N/A 3.1 28 11 18 8 9 1.0 100
006CSDF105 6 M5 06S 3.8 25 9.5 12 10 6 1.3 100
006CSDF106 6 M6 06S 3.8 27 10.5 14 10 7 1.2 100
006CSDF108 6 M8 06S 3.8 31 11 18 10 9 1.1 100
006CSDF110 6 M10 06S 3.8 35 14.5 22 10 11 0.9 100
010CSDF105 10 M5 10S 4.5 28 10.5 13.5 10 6.5 1.5 100
010CSDF106 10 M6 10S 4.5 28 10.5 13.5 10 6.5 1.5 100
010CSDF108 10 M8 10S 4.5 30.5 12.5 16 10 6.5 1.5 100
010CSDF110 10 M10 10S 4.5 34.5 14.5 20 10 8.5 1.5 100
010CSDF112 10 M12 10S 4.5 36.5 16.5 22 10 9 1.5 100
016CSDF105 16 M5 16S 5.5 30.7 11 13.5 13 6.5 1.5 100
016CSDF106 16 M6 16S 5.5 30.7 11 13.5 13 6.5 1.5 100
016CSDF108 16 M8 16S 5.5 33.2 12.5 16 13 6.5 1.5 100
016CSDF110 16 M10 16S 5.5 35.9 14.5 20 13 8.5 1.5 100
016CSDF112 16 M12 16S 5.5 37.9 16.5 22 13 9 1.5 100
025CSDF105 25 M5 25S 6.8 32.2 13.1 13.5 13 6.5 2.0 100
025CSDF106 25 M6 25S 6.8 32.2 13.1 13.5 13 6.5 2.0 100
025CSDF108 25 M8 25S 6.8 35.7 13.1 17 13 6.5 2.0 100
025CSDF110 25 M10 25S 6.8 34.9 14.5 20 13 8.5 2.0 100
025CSDF112 25 M12 25S 6.8 36.9 16.5 22 13 8.5 2.0 100
035CSDF105 35 M5 35S 8.2 36.6 15.8 16 14 8 2.0 100
035CSDF106 35 M6 35S 8.2 36.6 15.8 16 14 8 2.0 100
035CSDF108 35 M8 35S 8.2 37.6 15.8 17 14 8 2.0 100
035CSDF110 35 M10 35S 8.2 40.5 16.2 20 14 8.5 2.0 100
035CSDF112 35 M12 35S 8.2 44.5 18.6 24 14 9 2.0 100
050CSDF106 50 M6 50S 9.6 40.2 17.6 17 17 8.5 2.0 50
050CSDF108 50 M8 50S 9.6 41.2 17.6 18 17 8.5 2.0 50
050CSDF110 50 M10 50S 9.6 43.2 17.6 20 17 8.5 2.0 50
050CSDF112 50 M12 50S 9.6 44.2 18.7 23 17 10 2.0 50
050CSDF114 50 M14 50S 9.6 50.2 20.3 27 17 12 2.0 50
050CSDF116 50 M16 50S 9.6 52.8 22 29.5 17 14 2.0 50
070CSDF106 70 M6 70S 12 50.4 21.8 22 19 11 3.0 50
070CSDF108 70 M8 70S 12 50.4 21.8 22 19 11 3.0 50
070CSDF110 70 M10 70S 12 50.4 21.8 22 19 11 3.0 50
070CSDF112 70 M12 70S 12 52.4 21.8 24 19 11 3.0 50
070CSDF114 70 M14 70S 12 55.4 22.2 27 19 12 3.0 50
070CSDF116 70 M16 70S 12 57.9 22.2 29.5 19 12 3.0 50
095CSDF108 95 M8 95S 13.5 53.2 24.5 23.5 21 11.5 3.0 25
095CSDF110 95 M10 95S 13.5 53.2 24.5 23.5 21 11.5 3.0 25
095CSDF112 95 M12 95S 13.5 54.2 24.5 24.5 21 11.5 3.0 25
095CSDF114 95 M14 95S 13.5 57.8 24.5 28 21 13 3.0 25
095CSDF116 95 M16 95S 13.5 59.3 24.5 29.5 21 13 3.0 25
095CSDF120 95 M20 95S 13.5 68.1 28 38 21 18 3.0 25
120CSDF108 120 M8 120S 15 59.1 27.5 25 24 12.5 4.0 20
120CSDF110 120 M10 120S 15 59.1 27.5 25 24 12.5 4.0 20
120CSDF112 120 M12 120S 15 59.6 27.5 25.5 24 12.5 4.0 20
120CSDF114 120 M14 120S 15 64 27.5 30 24 15 4.0 20
120CSDF116 120 M16 120S 15 66 27.5 32 24 15 4.0 20
120CSDF120 120 M20 120S 15 72.1 28 38 24 18 4.0 20
150CSDF110 150 M10 150S 16.5 66.3 30.3 28 26.5 14 4.0 20
150CSDF112 150 M12 150S 16.5 66.3 30.3 28 26.5 14 4.0 20
150CSDF114 150 M14 150S 16.5 68.3 30.3 30 26.5 14 4.0 20
150CSDF116 150 M16 150S 16.5 70.2 30.3 32 26.5 19 4.0 20
150CSDF120 150 M20 150S 16.5 76.2 30.3 38 26.5 19 4.0 20
185CSDF110 185 M10 185S 19 74.9 34 30 30 15 4.5 10
185CSDF112 185 M12 185S 19 74.9 34 30 30 15 4.5 10
185CSDF114 185 M14 185S 19 74.9 34 30 30 15 4.5 10
185CSDF116 185 M16 185S 19 78.7 34 34 30 17 4.5 10
185CSDF120 185 M20 185S 19 82.7 34 38 30 17 4.5 10
240CSDF110 240 M10 240S 21 91.4 37.8 38.5 36 19 4.5 10
240CSDF112 240 M12 240S 21 91.4 37.8 38.5 36 19 4.5 10
240CSDF114 240 M14 240S 21 91.4 37.8 38.5 36 19 4.5 10
240CSDF116 240 M16 240S 21 91.4 37.8 38.5 36 19 4.5 10
240CSDF120 240 M20 240S 21 91.4 37.8 38.5 36 19 4.5 10
300CSDF110 300 M10 300S 24.5 97.2 43.9 39 38 19.5 6.0 10
300CSDF112 300 M12 300S 24.5 97.2 43.9 39 38 19.5 6.0 10
300CSDF114 300 M14 300S 24.5 97.2 43.9 39 38 19.5 6.0 10
300CSDF116 300 M16 300S 24.5 97.2 43.9 39 38 19.5 6.0 10
300CSDF120 300 M20 300S 24.5 97.2 43.9 39 38 19.5 6.0 10
400CSDF112 400 M12 400S 27 102.8 47.4 39 40 19.5 6.0 5
400CSDF114 400 M14 400S 27 102.8 47.4 39 40 19.5 6.0 5
400CSDF116 400 M16 400S 27 102.8 47.4 39 40 19.5 6.0 5
400CSDF120 400 M20 400S 27 102.8 47.4 39 40 19.5 6.0 5
500CSDF112 500 M12 500S 30 116.2 52.7 46 47.5 23 8.0 1
500CSDF114 500 M14 500S 30 116.2 52.7 46 47.5 23 8.0 1
500CSDF116 500 M16 500S 30 116.2 52.7 46 47.5 23 8.0 1
500CSDF120 500 M20 500S 30 116.2 52.7 46 47.5 23 8.0 1
630CSDF112 630 M12 630S 35.5 145.8 64.5 61.5 60 30.8 8.0 1
630CSDF114 630 M14 630S 35.5 145.8 64.5 61.5 60 30.8 8.0 1
630CSDF116 630 M16 630S 35.5 145.8 64.5 61.5 60 30.8 8.0 1
630CSDF120 630 M20 630S 35.5 145.8 64.5 61.5 60 30.8 8.0 1
