CSDF1-X Cable Lug

ETIM Classification

EC001051

Standard Duty Metric Copper Compression Cable Lug - Flared Entry Standard Barrel with 1 Stud Hole - No Inspection Window

Description

These flared entry products have been designed and third party certified to IEC 61238-1 Class B, for high quality and reliable crimping. Manufactured from high purity, oxygen-free, seamless copper tube (C110/CW009A), these cable lugs are precisely dimensioned to achieve optimal crimping with suitable conductors. The lugs are annealed to enhance durability, minimising risk of fracture between the palm and barrel. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection. No inspection window to prevent moisture ingress for outdoor applications; inspection window can be added as an option - see data sheet CSDF1. Standard stud hole sizes are detailed in the dimension table. Custom stud hole dimensions are available on request.

Features

  • Sizes to suit conductors as per EN 60228 cables; 1.5 mm² up to 630 mm²
  • Third Party Certified to IEC 61238-1 Class B
  • Tested to UL 486A-486B
  • Manufactured from high purity (99.9%) copper seamless tube (BS EN 13600)
  • Annealed and electrolytically tin plated for reliable crimping, with oxidation and corrosion resistance
  • No inspection window to enhance ingress protection for outdoor applications
  • Clear marking for quick selection
  • CMP crimping die available for optimal crimping
  • Flared entry to barrel for ease of conductor insertion; beneficial for class 5 and 6 conductors
  • Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
  • Crimping die index numbers match CSA or wire size; refer to CMP compatible die chart for more information

Additional Information

Certification
IEC Certificate Number 12345
IEC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/6c9e4738/6597f72f43589004230000e4/ieclogo.jpg
Technical Specification
Barrel Type Standard
Duty Type Standard Duty
Entry Type Flared
Lugs Material Tin Plated Copper
Max Voltage of Application 1 kV
Number Of Stud Holes 1
Palm Angle Straight
Temperature Rating Up to 90 Degrees Celsius

Downloads

Certificates

Product Selector

1

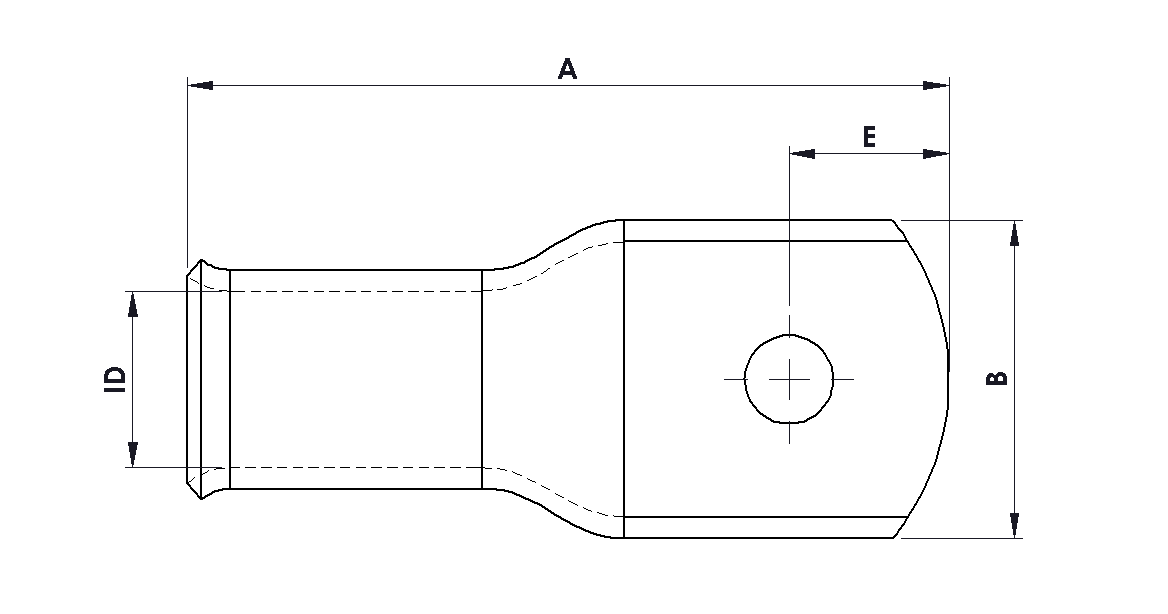

Part Number Cable Size (mm²) Hole Stud Size Die Index No. Internal Diameter (ID) Overall Length (A) Palm Width (B) Palm Length (C) Barrel Length (D) Stud Hole Distance (E) Palm Thickness (F) Pack Qty
0015CSDF104X 1.5 M4 N/A 1.8 18.5 8 11 5.5 5.5 1.0 100
0015CSDF105X 1.5 M5 N/A 1.8 19.5 8 12 5.5 6 1.0 100
0015CSDF106X 1.5 M6 N/A 1.8 21.5 9.5 14 5.5 7 0.9 100
0025CSDF104X 2.5 M4 N/A 2.4 21 8.5 11 8 5.5 0.9 100
0025CSDF105X 2.5 M5 N/A 2.4 22 8.5 12 8 6 0.9 100
0025CSDF106X 2.5 M6 N/A 2.4 24 9.5 14 8 7 0.8 100
0025CSDF108X 2.5 M8 N/A 2.4 28 11 18 8 9 0.7 100
004CSDF104X 4 M4 N/A 3.1 21 9.5 11 8 5.5 1.1 100
004CSDF105X 4 M5 N/A 3.1 25 9.5 12 8 12 1.1 100
004CSDF106X 4 M6 N/A 3.1 24 9.5 14 8 7 1.1 100
004CSDF108X 4 M8 N/A 3.1 28 11 18 8 9 1.0 100
006CSDF105X 6 M5 06S 3.8 25 9.5 12 10 6 1.3 100
006CSDF106X 6 M6 06S 3.8 27 10.5 14 10 7 1.2 100
006CSDF108X 6 M8 06S 3.8 31 11 18 10 9 1.1 100
006CSDF110X 6 M10 06S 3.8 35 14.5 22 10 11 0.9 100
010CSDF105X 10 M5 10S 4.5 28 10.5 13.5 10 6.5 1.5 100
010CSDF106X 10 M6 10S 4.5 28 10.5 13.5 10 6.5 1.5 100
010CSDF108X 10 M8 10S 4.5 30.5 12.5 16 10 6.5 1.5 100
010CSDF110X 10 M10 10S 4.5 34.5 14.5 20 10 8.5 1.5 100
010CSDF112X 10 M12 10S 4.5 36.5 16.5 22 10 9 1.5 100
016CSDF105X 16 M5 16S 5.5 30.7 11 13.5 13 6.5 1.5 100
016CSDF106X 16 M6 16S 5.5 30.7 11 13.5 13 6.5 1.5 100
016CSDF108X 16 M8 16S 5.5 33.2 12.5 16 13 6.5 1.5 100
016CSDF110X 16 M10 16S 5.5 35.9 14.5 20 13 8.5 1.5 100
016CSDF112X 16 M12 16S 5.5 37.9 16.5 22 13 9 1.5 100
025CSDF105X 25 M5 25S 6.8 32.2 13.1 13.5 13 6.5 2.0 100
025CSDF106X 25 M6 25S 6.8 32.2 13.1 13.5 13 6.5 2.0 100
025CSDF108X 25 M8 25S 6.8 35.7 13.1 17 13 6.5 2.0 100
025CSDF110X 25 M10 25S 6.8 34.9 14.5 20 13 8.5 2.0 100
025CSDF112X 25 M12 25S 6.8 36.9 16.5 22 13 8.5 2.0 100
035CSDF105X 35 M5 35S 8.2 36.6 15.8 16 14 8 2.0 100
035CSDF106X 35 M6 35S 8.2 36.6 15.8 16 14 8 2.0 100
035CSDF108X 35 M8 35S 8.2 37.6 15.8 17 14 8 2.0 100
035CSDF110X 35 M10 35S 8.2 40.5 16.2 20 14 8.5 2.0 100
035CSDF112X 35 M12 35S 8.2 44.5 18.6 24 14 9 2.0 100
050CSDF106X 50 M6 50S 9.6 40.2 17.6 17 17 8.5 2.0 50
050CSDF108X 50 M8 50S 9.6 41.2 17.6 18 17 8.5 2.0 50
050CSDF110X 50 M10 50S 9.6 43.2 17.6 20 17 8.5 2.0 50
050CSDF112X 50 M12 50S 9.6 44.2 18.7 23 17 10 2.0 50
050CSDF114X 50 M14 50S 9.6 50.2 20.3 27 17 12 2.0 50
050CSDF116X 50 M16 50S 9.6 52.8 22 29.5 17 14 2.0 50
070CSDF106X 70 M6 70S 12 50.4 21.8 22 19 11 3.0 50
070CSDF108X 70 M8 70S 12 50.4 21.8 22 19 11 3.0 50
070CSDF110X 70 M10 70S 12 50.4 21.8 22 19 11 3.0 50
070CSDF112X 70 M12 70S 12 52.4 21.8 24 19 11 3.0 50
070CSDF114X 70 M14 70S 12 55.4 22.2 27 19 12 3.0 50
070CSDF116X 70 M16 70S 12 57.9 22.2 29.5 19 12 3.0 50
095CSDF108X 95 M8 95S 13.5 53.2 24.5 23.5 21 11.5 3.0 25
095CSDF110X 95 M10 95S 13.5 53.2 24.5 23.5 21 11.5 3.0 25
095CSDF112X 95 M12 95S 13.5 54.2 24.5 24.5 21 11.5 3.0 25
095CSDF114X 95 M14 95S 13.5 57.8 24.5 28 21 13 3.0 25
095CSDF116X 95 M16 95S 13.5 59.3 24.5 29.5 21 13 3.0 25
095CSDF120X 95 M20 95S 13.5 68.1 28 38 21 18 3.0 25
120CSDF108X 120 M8 120S 15 59.1 27.5 25 24 12.5 4.0 20
120CSDF110X 120 M10 120S 15 59.1 27.5 25 24 12.5 4.0 20
120CSDF112X 120 M12 120S 15 59.6 27.5 25.5 24 12.5 4.0 20
120CSDF114X 120 M14 120S 15 64 27.5 30 24 15 4.0 20
120CSDF116X 120 M16 120S 15 66 27.5 32 24 15 4.0 20
120CSDF120X 120 M20 120S 15 72.1 28 38 24 18 4.0 20
150CSDF110X 150 M10 150S 16.5 66.3 30.3 28 26.5 14 4.0 20
150CSDF112X 150 M12 150S 16.5 66.3 30.3 28 26.5 14 4.0 20
150CSDF114X 150 M14 150S 16.5 68.3 30.3 30 26.5 14 4.0 20
150CSDF116X 150 M16 150S 16.5 70.2 30.3 32 26.5 19 4.0 20
150CSDF120X 150 M20 150S 16.5 76.2 30.3 38 26.5 19 4.0 20
185CSDF110X 185 M10 185S 19 74.9 34 30 30 15 4.5 10
185CSDF112X 185 M12 185S 19 74.9 34 30 30 15 4.5 10
185CSDF114X 185 M14 185S 19 74.9 34 30 30 15 4.5 10
185CSDF116X 185 M16 185S 19 78.7 34 34 30 17 4.5 10
185CSDF120X 185 M20 185S 19 82.7 34 38 30 17 4.5 10
240CSDF110X 240 M10 240S 21 91.4 37.8 38.5 36 19 4.5 10
240CSDF112X 240 M12 240S 21 91.4 37.8 38.5 36 19 4.5 10
240CSDF114X 240 M14 240S 21 91.4 37.8 38.5 36 19 4.5 10
240CSDF116X 240 M16 240S 21 91.4 37.8 38.5 36 19 4.5 10
240CSDF120X 240 M20 240S 21 91.4 37.8 38.5 36 19 4.5 10
300CSDF110X 300 M10 300S 24.5 97.2 43.9 39 38 19.5 6.0 10
300CSDF112X 300 M12 300S 24.5 97.2 43.9 39 38 19.5 6.0 10
300CSDF114X 300 M14 300S 24.5 97.2 43.9 39 38 19.5 6.0 10
300CSDF116X 300 M16 300S 24.5 97.2 43.9 39 38 19.5 6.0 10
300CSDF120X 300 M20 300S 24.5 97.2 43.9 39 38 19.5 6.0 10
400CSDF112X 400 M12 400S 27 102.8 47.4 39 40 19.5 6.0 5
400CSDF114X 400 M14 400S 27 102.8 47.4 39 40 19.5 6.0 5
400CSDF116X 400 M16 400S 27 102.8 47.4 39 40 19.5 6.0 5
400CSDF120X 400 M20 400S 27 102.8 47.4 39 40 19.5 6.0 5
500CSDF112X 500 M12 500S 30 116.2 52.7 46 47.5 23 8.0 1
500CSDF114X 500 M14 500S 30 116.2 52.7 46 47.5 23 8.0 1
500CSDF116X 500 M16 500S 30 116.2 52.7 46 47.5 23 8.0 1
500CSDF120X 500 M20 500S 30 116.2 52.7 46 47.5 23 8.0 1
630CSDF112X 630 M12 630S 35.5 145.8 64.5 61.5 60 30.8 8.0 1
630CSDF114X 630 M14 630S 35.5 145.8 64.5 61.5 60 30.8 8.0 1
630CSDF116X 630 M16 630S 35.5 145.8 64.5 61.5 60 30.8 8.0 1
630CSDF120X 630 M20 630S 35.5 145.8 64.5 61.5 60 30.8 8.0 1
