CSDF2-X Cable Lug

ETIM Classification

EC001051

Standard Duty Metric Copper Compression Cable Lug - Flared Entry Standard Barrel with 2 Stud Holes - No Inspection Window

Description

These flared entry products have been designed and third party certified to IEC 61238-1 Class B, for high quality and reliable crimping. Manufactured from high purity, oxygen-free, seamless copper tube (C110/CW009A), these cable lugs are precisely dimensioned to achieve optimal crimping with suitable conductors. The lugs are annealed to enhance durability, minimising risk of fracture between the palm and barrel. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection. No inspection window to prevent moisture ingress for outdoor applications; inspection window can be added as an option - see data sheet CSDF2. The centres of the two stud holes are detailed in the dimensional table. Custom stud hole dimensions are available on request.

Features

Stud hole centre dimensions standardised at 44.5 mm
Sizes to suit conductors as per EN 60228 cables; 10 mm² up to 630 mm²
Third Party Certified to IEC 61238-1 Class B
Tested to UL 486A-486B
Manufactured from high purity (99.9%) copper seamless tube (BS EN 13600)
Annealed and electrolytically tin plated for reliable crimping, with oxidation and corrosion resistance
No inspection window to enhance ingress protection for outdoor applications
Clear marking for quick selection
CMP crimping die available for optimal crimping
Flared entry to barrel for ease of conductor insertion; beneficial for class 5 and 6 conductors
Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
Crimping die index numbers match CSA or wire size; refer to CMP compatible die chart for more information

Additional Information

Certificates

Product Selector

Refine by part number

Conductor Material
Connection Type
Entry Type
Palm Angle
Barrel Type
Conductor Size
Hole/Stud size

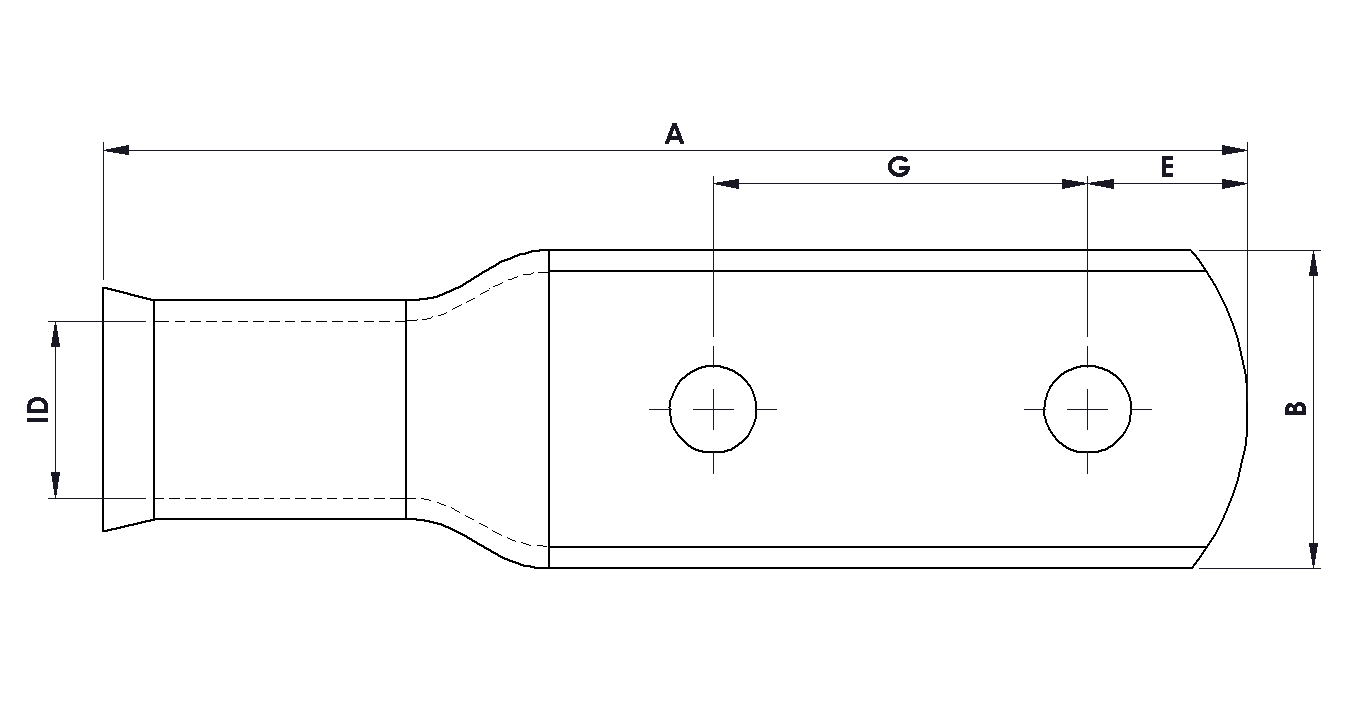

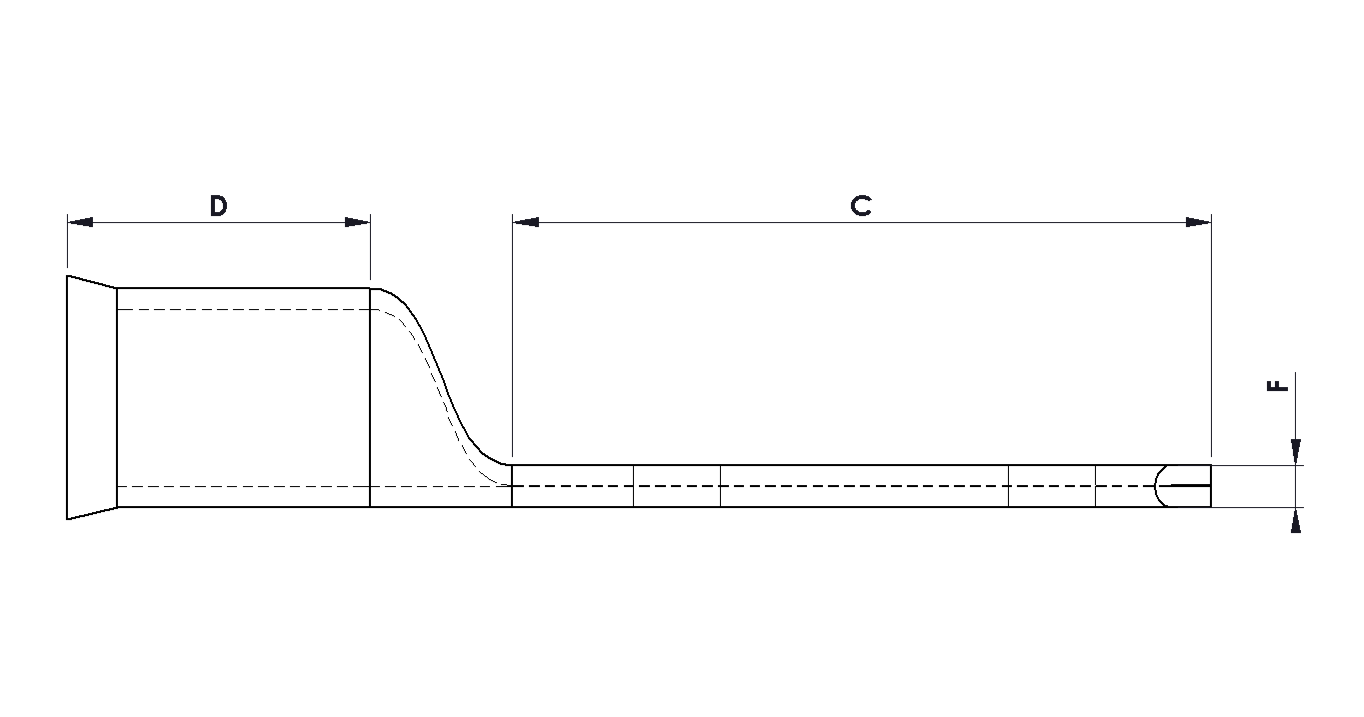

	Part Number	Cable Size (mm²)	Hole Stud Size	Die Index No.	Internal Diameter (ID)	Overall Length (A)	Palm Width (B)	Palm Length (C)	Barrel Length (D)	Stud Hole Distance (E)	Palm Thickness (F)	Stud Hole Spacing (G)	Pack Qty
Select	010CSDF205X	10	M5	10S	4.5	72.5	10.5	58	10	6.5	1.5	44.5	100
Select	010CSDF206X	10	M6	10S	4.5	72.5	10.5	58	10	6.5	1.5	44.5	100
Select	010CSDF208X	10	M8	10S	4.5	75	12.5	60.5	10	6.5	1.5	44.5	100
Select	010CSDF210X	10	M10	10S	4.5	79	14.5	64.5	10	8.5	1.5	44.5	100
Select	010CSDF212X	10	M12	10S	4.5	81	16.5	66.5	10	9	1.5	44.5	100
Select	016CSDF205X	16	M5	16S	5.5	74.7	11	58	13	6.5	1.5	44.5	100
Select	016CSDF206X	16	M6	16S	5.5	74.7	11	58	13	6.5	1.5	44.5	100
Select	016CSDF208X	16	M8	16S	5.5	77.2	12.5	60.5	13	6.5	1.5	44.5	100
Select	016CSDF210X	16	M10	16S	5.5	81.4	14.5	64.5	13	8.5	1.5	44.5	100
Select	016CSDF212X	16	M12	16S	5.5	83.4	16.5	66.5	13	9	1.5	44.5	100
Select	025CSDF205X	25	M5	25S	6.8	76.7	13.1	58	13	6.5	2.0	44.5	100
Select	025CSDF206X	25	M6	25S	6.8	76.7	13.1	58	13	6.5	2.0	44.5	100
Select	025CSDF208X	25	M8	25S	6.8	80.2	13.1	61.5	13	6.5	2.0	44.5	100
Select	025CSDF210X	25	M10	25S	6.8	83.4	14.5	64.5	13	8.5	2.0	44.5	100
Select	025CSDF212X	25	M12	25S	6.8	85.4	16.5	66.5	13	9	2.0	44.5	100
Select	035CSDF205X	35	M5	35S	8.2	81.1	15.8	60.5	14	8	2.0	44.5	100
Select	035CSDF206X	35	M6	35S	8.2	81.1	15.8	60.5	14	8	2.0	44.5	100
Select	035CSDF208X	35	M8	35S	8.2	82.1	15.8	61.5	14	8	2.0	44.5	100
Select	035CSDF210X	35	M10	35S	8.2	85	16.2	64.5	14	8.5	2.0	44.5	100
Select	035CSDF212X	35	M12	35S	8.2	89	18.6	68.5	14	9	2.0	44.5	100
Select	050CSDF206X	50	M6	50S	9.6	84.7	17.6	61.5	17	8.5	2.0	44.5	50
Select	050CSDF208X	50	M8	50S	9.6	85.7	17.6	62.5	17	8.5	2.0	44.5	50
Select	050CSDF210X	50	M10	50S	9.6	87.7	17.6	64.5	17	10	2.0	44.5	50
Select	050CSDF212X	50	M12	50S	9.6	90.7	18.7	67.5	17	10	2.0	44.5	50
Select	050CSDF214X	50	M14	50S	9.6	94.7	20.3	71.5	17	12	2.0	44.5	50
Select	050CSDF216X	50	M16	50S	9.6	97.3	22	74	17	14	2.0	44.5	50
Select	070CSDF206X	70	M6	70S	12	94.9	21.8	66.5	19	11	3.0	44.5	50
Select	070CSDF208X	70	M8	70S	12	94.9	21.8	66.5	19	11	3.0	44.5	50
Select	070CSDF210X	70	M10	70S	12	94.9	21.8	66.5	19	11	3.0	44.5	50
Select	070CSDF212X	70	M12	70S	12	96.9	21.8	68.5	19	11	3.0	44.5	50
Select	070CSDF214X	70	M14	70S	12	99.9	22.2	71.5	19	12	3.0	44.5	50
Select	070CSDF216X	70	M16	70S	12	102.4	22.2	74	19	12	3.0	44.5	50
Select	095CSDF208X	95	M8	95S	13.5	97.7	24.3	68	21	11.5	3.0	44.5	20
Select	095CSDF210X	95	M10	95S	13.5	97.7	24.3	68	21	11.5	3.0	44.5	20
Select	095CSDF212X	95	M12	95S	13.5	98.7	24.3	69	21	11.5	3.0	44.5	20
Select	095CSDF214X	95	M14	95S	13.5	102.3	24.3	72.5	21	13	3.0	44.5	20
Select	095CSDF216X	95	M16	95S	13.5	103.8	24.3	74	21	13	3.0	44.5	20
Select	095CSDF220X	95	M20	95S	13.5	112.6	28	82.5	21	18	3.0	44.5	20
Select	120CSDF208X	120	M8	120S	15	103.6	27.5	69.5	24	12.5	4.0	44.5	20
Select	120CSDF210X	120	M10	120S	15	103.6	27.5	69.5	24	12.5	4.0	44.5	20
Select	120CSDF212X	120	M12	120S	15	104.1	27.5	70	24	12.5	4.0	44.5	20
Select	120CSDF214X	120	M14	120S	15	108.5	27.5	74.5	24	15	4.0	44.5	20
Select	120CSDF216X	120	M16	120S	15	110.5	27.5	76.5	24	15	4.0	44.5	20
Select	120CSDF220X	120	M20	120S	15	116.6	28	82.5	24	18	4.0	44.5	20
Select	150CSDF210X	150	M10	150S	16.5	110.8	30.3	72.5	26.5	14	4.0	44.5	15
Select	150CSDF212X	150	M12	150S	16.5	110.8	30.3	72.5	26.5	14	4.0	44.5	15
Select	150CSDF214X	150	M14	150S	16.5	112.8	30.3	74.5	26.5	14	4.0	44.5	15
Select	150CSDF216X	150	M16	150S	16.5	114.7	30.3	76.5	26.5	19	4.0	44.5	15
Select	150CSDF220X	150	M20	150S	16.5	120.7	30.3	82.5	26.5	19	4.0	44.5	15
Select	185CSDF210X	185	M10	185S	19	119.4	34	74.5	30	15	4.5	44.5	15
Select	185CSDF212X	185	M12	185S	19	119.4	34	74.5	30	15	4.5	44.5	15
Select	185CSDF214X	185	M14	185S	19	119.4	34	74.5	30	15	4.5	44.5	15
Select	185CSDF216X	185	M16	185S	19	123.2	34	78.5	30	17	4.5	44.5	15
Select	185CSDF220X	185	M20	185S	19	127.2	34	82.5	30	17	4.5	44.5	15
Select	240CSDF210X	240	M10	240S	21	135.9	37.8	83	36	19	4.5	44.5	5
Select	240CSDF212X	240	M12	240S	21	135.9	37.8	83	36	19	4.5	44.5	5
Select	240CSDF214X	240	M14	240S	21	135.9	37.8	83	36	19	4.5	44.5	5
Select	240CSDF216X	240	M16	240S	21	135.9	37.8	83	36	19	4.5	44.5	5
Select	240CSDF220X	240	M20	240S	21	135.9	37.8	83	36	19	4.5	44.5	5
Select	300CSDF210X	300	M10	300S	24.5	141.7	43.9	83.5	38	19.5	6.0	44.5	1
Select	300CSDF212X	300	M12	300S	24.5	141.7	43.9	83.5	38	19.5	6.0	44.5	1
Select	300CSDF214X	300	M14	300S	24.5	141.7	43.9	83.5	38	19.5	6.0	44.5	1
Select	300CSDF216X	300	M16	300S	24.5	141.7	43.9	83.5	38	19.5	6.0	44.5	1
Select	300CSDF220X	300	M20	300S	24.5	141.7	43.9	83.5	38	19.5	6.0	44.5	1
Select	400CSDF212X	400	M12	400S	27	147.3	47.4	83.5	40	19.5	6.0	44.5	1
Select	400CSDF214X	400	M14	400S	27	147.3	47.4	83.5	40	19.5	6.0	44.5	1
Select	400CSDF216X	400	M16	400S	27	147.3	47.4	83.5	40	19.5	6.0	44.5	1
Select	400CSDF220X	400	M20	400S	27	147.3	47.4	83.5	40	19.5	6.0	44.5	1
Select	500CSDF212X	500	M12	500S	30	160.7	52.7	90.5	47.5	23	8.0	44.5	1
Select	500CSDF214X	500	M14	500S	30	160.7	52.7	90.5	47.5	23	8.0	44.5	1
Select	500CSDF216X	500	M16	500S	30	160.7	52.7	90.5	47.5	23	8.0	44.5	1
Select	500CSDF220X	500	M20	500S	30	160.7	52.7	90.5	47.5	23	8.0	44.5	1
Select	630CSDF212X	630	M12	630S	35.5	190.3	64.5	106	60	30.75	8.0	44.5	1
Select	630CSDF214X	630	M14	630S	35.5	190.3	64.5	106	60	30.75	8.0	44.5	1
Select	630CSDF216X	630	M16	630S	35.5	190.3	64.5	106	60	30.75	8.0	44.5	1
Select	630CSDF220X	630	M20	630S	35.5	190.3	64.5	106	60	30.75	8.0	44.5	1
