Copper Compression Splice Connector - Designed to DIN 46267
Description
CMP DIN Copper Compression Splices have been designed to match the dimensions of DIN 46267 for high quality and reliable crimping. Manufactured from high purity, oxygen-free, seamless copper tube (C110/CW009A), these splice connectors are precisely dimensioned to achieve optimal crimping with suitable conductors. The splice connectors are annealed to enhance durability, minimising risk of fracture. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection.
Features
- Dimensions according to DIN 46267
- Available in sizes 6 mm² up to 1,000 mm²
- Manufactured from high purity (99.9%) copper seamless tube (BS EN 13600)
- Annealed and electrolytically tin plated for reliable crimping, with oxidation and corrosion resistance
- Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
- Compatible with all suitably sized DIN 48083 crimping dies
Additional Information
| Certification | |
|---|---|
|
|
|
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
|
||||||||
Certificates
Product Selector
1

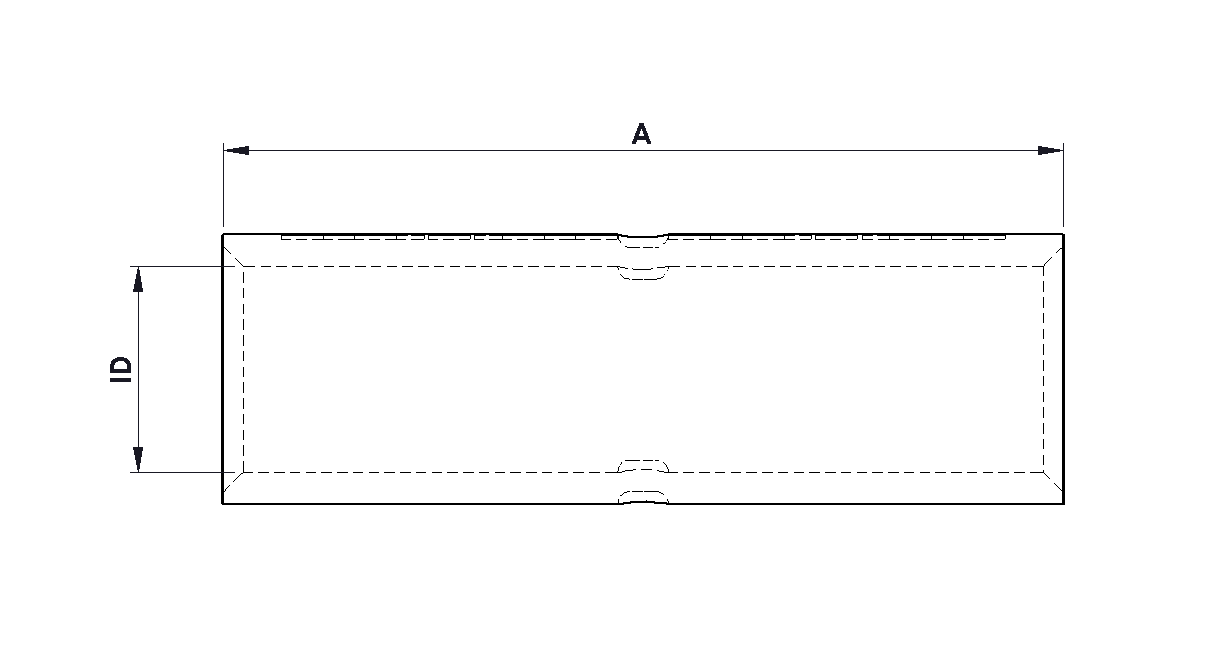

| Part Number | Cable Size (mm²) | Die Index No. | Internal Diameter (ID) | Overall Length (A) | Pack Qty | |
|---|---|---|---|---|---|---|
|
|
006CSDN030 | 6 | 6 | 3.8 | 30 | 100 |
|
|
010CSDN030 | 10 | 7 | 4.5 | 30 | 100 |
|
|
016CSDN050 | 16 | 8 | 5.5 | 50 | 100 |
|
|
025CSDN050 | 25 | 9 | 7 | 50 | 100 |
|
|
035CSDN050 | 35 | 10 | 8.2 | 50 | 100 |
|
|
050CSDN056 | 50 | 11 | 10 | 56 | 50 |
|
|
070CSDN056 | 70 | 12 | 11.5 | 56 | 50 |
|
|
095CSDN070 | 95 | 13 | 13.5 | 70 | 25 |
|
|
120CSDN070 | 120 | 14 | 15.5 | 70 | 25 |
|
|
150CSDN080 | 150 | 15 | 17 | 80 | 15 |
|
|
185CSDN085 | 185 | 16 | 19 | 85 | 15 |
|
|
240CSDN090 | 240 | 17 | 21.5 | 90 | 10 |
|
|
300CSDN100 | 300 | 18 | 24.5 | 100 | 5 |
|
|
400CSDN150 | 400 | 19 | 27.5 | 150 | 5 |
|
|
500CSDN160 | 500 | 20 | 31 | 160 | 1 |
|
|
625CSDN160 | 625 | 21 | 34.5 | 160 | 1 |
|
|
800CSDN200 | 800 | 22 | 40 | 200 | 1 |
|
|
1000CSDN200 | 1000 | 22 | 44 | 200 | 1 |
