CSDP1-X Cable Lug

ETIM Classification

EC001051

Standard Duty Metric Copper Compression Cable Lug - Parallel Entry Standard Barrel with 1 Stud Hole - No Inspection Window

Description

These products have been designed and third party certified to IEC 61238-1 Class B, for high quality and reliable crimping. Manufactured from high purity, oxygen-free, seamless copper tube (C110/CW009A), these cable lugs are precisely dimensioned to achieve optimal crimping with suitable conductors. The lugs are annealed to enhance durability, minimising risk of fracture between the palm and barrel. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection. No inspection window to prevent moisture ingress for outdoor applications; inspection window can be added as an option - see data sheet CSDP1. Standard stud hole sizes are detailed in the dimension table. Custom stud hole dimensions are available on request.

Features

Sizes to suit conductors as per EN 60228 cables; 1.5 mm² up to 630 mm²
Third Party Certified to IEC 61238-1 Class B
Tested to UL 486A-486B
Manufactured from high purity (99.9%) copper seamless tube (BS EN 13600)
Annealed and electrolytically tin plated for reliable crimping, with oxidation and corrosion resistance
No inspection window to enhance ingress protection for outdoor applications
Clear marking for quick selection
CMP crimping die available for optimal crimping
Bevelled entry to aid conductor insertion
Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
Crimping die index numbers match CSA or wire size; refer to CMP compatible die chart for more information

Additional Information

Certificates

Product Selector

Refine by part number

Conductor Material
Connection Type
Entry Type
Palm Angle
Barrel Type
Conductor Size
Hole/Stud size

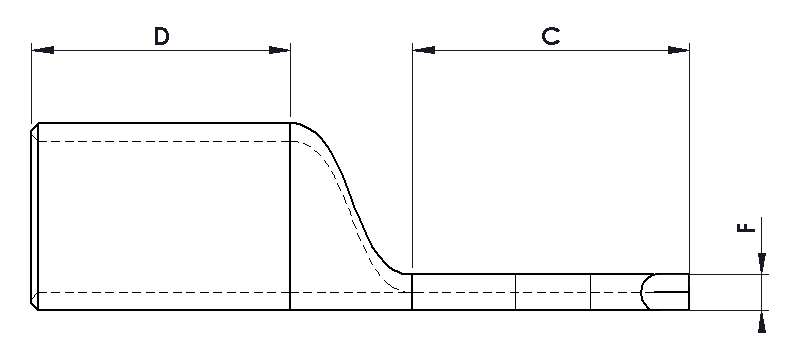

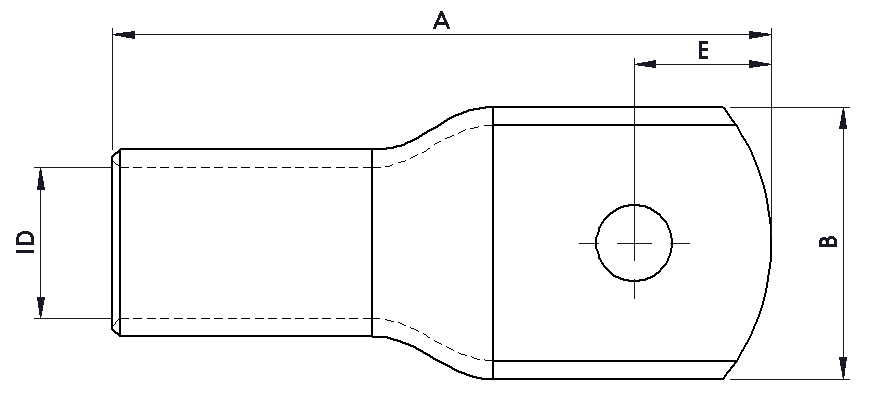

	Part Number	Cable Size (mm²)	Hole Stud Size	Die Index No.	Internal Diameter (ID)	Overall Length (A)	Palm Width (B)	Palm Length (C)	Barrel Length (D)	Stud Hole Distance (E)	Palm Thickness (F)	Pack Qty
Select	0015CSDP104X	1.5	M4	N/A	1.8	18.5	8	11	5.5	5.5	1.0	100
Select	0015CSDP105X	1.5	M5	N/A	1.8	19.5	8	12	5.5	6	1.0	100
Select	0015CSDP106X	1.5	M6	N/A	1.8	21.5	9.5	14	5.5	7	0.9	100
Select	0025CSDP104X	2.5	M4	N/A	2.4	21	8.5	11	8	5.5	0.9	100
Select	0025CSDP105X	2.5	M5	N/A	2.4	22	8.5	12	8	6	0.9	100
Select	0025CSDP106X	2.5	M6	N/A	2.4	24	9.5	14	8	7	0.8	100
Select	0025CSDP108X	2.5	M8	N/A	2.4	28	11	18	8	9	0.7	100
Select	004CSDP104X	4	M4	N/A	3.1	21	9.5	11	8	5.5	1.1	100
Select	004CSDP105X	4	M5	N/A	3.1	25	9.5	12	8	12	1.1	100
Select	004CSDP106X	4	M6	N/A	3.1	24	9.5	14	8	7	1.1	100
Select	004CSDP108X	4	M8	N/A	3.1	28	11	18	8	9	1.0	100
Select	006CSDP105X	6	M5	06S	3.8	25	9.5	12	10	6	1.3	100
Select	006CSDP106X	6	M6	06S	3.8	27	10.5	14	10	7	1.2	100
Select	006CSDP108X	6	M8	06S	3.8	31	11	18	10	9	1.1	100
Select	006CSDP110X	6	M10	06S	3.8	35	14.5	22	10	11	0.9	100
Select	010CSDP105X	10	M5	10S	4.5	28	10.5	13.5	10	6.5	1.6	100
Select	010CSDP106X	10	M6	10S	4.5	28	10.5	13.5	10	6.5	1.6	100
Select	010CSDP108X	10	M8	10S	4.5	30.5	12.5	16	10	6.5	1.4	100
Select	010CSDP110X	10	M10	10S	4.5	34.5	14.5	20	10	8.5	1.2	100
Select	010CSDP112X	10	M12	10S	4.5	36.5	16.5	22	10	9	1.0	100
Select	016CSDP105X	16	M5	16S	5.5	30.7	11	13.5	13	6.5	1.9	100
Select	016CSDP106X	16	M6	16S	5.5	30.7	11	13.5	13	6.5	1.9	100
Select	016CSDP108X	16	M8	16S	5.5	33.2	12.5	16	13	6.5	1.6	100
Select	016CSDP110X	16	M10	16S	5.5	35.9	14.5	20	13	8.5	1.4	100
Select	016CSDP112X	16	M12	16S	5.5	37.9	16.5	22	13	9	1.2	100
Select	025CSDP105X	25	M5	25S	6.8	32.2	13.1	13.5	13	6.5	1.9	100
Select	025CSDP106X	25	M6	25S	6.8	32.2	13.1	13.5	13	6.5	1.9	100
Select	025CSDP108X	25	M8	25S	6.8	35.7	13.1	17	13	6.5	1.9	100
Select	025CSDP110X	25	M10	25S	6.8	34.9	14.5	20	13	8.5	1.7	100
Select	025CSDP112X	25	M12	25S	6.8	36.9	16.5	22	13	8.5	1.5	100
Select	035CSDP105X	35	M5	35S	8.2	36.6	15.8	16	14	8	2.2	100
Select	035CSDP106X	35	M6	35S	8.2	36.6	15.8	16	14	8	2.2	100
Select	035CSDP108X	35	M8	35S	8.2	37.6	15.8	17	14	8	2.2	100
Select	035CSDP110X	35	M10	35S	8.2	40.5	16.2	20	14	8.5	2.2	100
Select	035CSDP112X	35	M12	35S	8.2	44.5	18.6	24	14	9	1.9	100
Select	050CSDP106X	50	M6	50S	9.6	40.2	17.6	17	17	8.5	2.3	50
Select	050CSDP108X	50	M8	50S	9.6	41.2	17.6	18	17	8.5	2.3	50
Select	050CSDP110X	50	M10	50S	9.6	43.2	17.6	20	17	8.5	2.3	50
Select	050CSDP112X	50	M12	50S	9.6	44.2	18.7	23	17	10	2.2	50
Select	050CSDP114X	50	M14	50S	9.6	50.2	20.3	27	17	12	2.0	50
Select	050CSDP116X	50	M16	50S	9.6	52.8	22	29.5	17	14	1.9	50
Select	070CSDP106X	70	M6	70S	12	50.4	21.8	22	19	11	2.9	50
Select	070CSDP108X	70	M8	70S	12	50.4	21.8	22	19	11	2.9	50
Select	070CSDP110X	70	M10	70S	12	50.4	21.8	22	19	11	2.9	50
Select	070CSDP112X	70	M12	70S	12	52.4	21.8	24	19	11	2.9	50
Select	070CSDP114X	70	M14	70S	12	55.4	22.2	27	19	12	2.9	50
Select	070CSDP116X	70	M16	70S	12	57.9	22.2	29.5	19	12	2.9	50
Select	095CSDP108X	95	M8	95S	13.5	53.2	24.5	23.5	21	11.5	2.9	25
Select	095CSDP110X	95	M10	95S	13.5	53.2	24.5	23.5	21	11.5	2.9	25
Select	095CSDP112X	95	M12	95S	13.5	54.2	24.5	24.5	21	11.5	2.9	25
Select	095CSDP114X	95	M14	95S	13.5	57.8	24.5	28	21	13	2.9	25
Select	095CSDP116X	95	M16	95S	13.5	59.3	24.5	29.5	21	13	2.9	25
Select	095CSDP120X	95	M20	95S	13.5	68.1	28	38	21	18	2.5	25
Select	120CSDP108X	120	M8	120S	15	59.1	27.5	25	24	12.5	3.9	20
Select	120CSDP110X	120	M10	120S	15	59.1	27.5	25	24	12.5	3.9	20
Select	120CSDP112X	120	M12	120S	15	59.6	27.5	25.5	24	12.5	3.9	20
Select	120CSDP114X	120	M14	120S	15	64	27.5	30	24	15	3.9	20
Select	120CSDP116X	120	M16	120S	15	66	27.5	32	24	15	3.9	20
Select	120CSDP120X	120	M20	120S	15	72.1	28	38	24	18	3.8	20
Select	150CSDP110X	150	M10	150S	16.5	66.3	30.3	28	26.5	14	3.8	20
Select	150CSDP112X	150	M12	150S	16.5	66.3	30.3	28	26.5	14	3.8	20
Select	150CSDP114X	150	M14	150S	16.5	68.3	30.3	30	26.5	14	3.8	20
Select	150CSDP116X	150	M16	150S	16.5	70.2	30.3	32	26.5	19	3.8	20
Select	150CSDP120X	150	M20	150S	16.5	76.2	30.3	38	26.5	19	3.8	20
Select	185CSDP110X	185	M10	185S	19	74.9	34	30	30	15	3.9	10
Select	185CSDP112X	185	M12	185S	19	74.9	34	30	30	15	3.9	10
Select	185CSDP114X	185	M14	185S	19	74.9	34	30	30	15	3.9	10
Select	185CSDP116X	185	M16	185S	19	78.7	34	34	30	17	3.9	10
Select	185CSDP120X	185	M20	185S	19	82.7	34	38	30	17	3.9	10
Select	240CSDP110X	240	M10	240S	21	91.4	37.8	38.5	36	19	4.9	10
Select	240CSDP112X	240	M12	240S	21	91.4	37.8	38.5	36	19	4.9	10
Select	240CSDP114X	240	M14	240S	21	91.4	37.8	38.5	36	19	4.9	10
Select	240CSDP116X	240	M16	240S	21	91.4	37.8	38.5	36	19	4.9	10
Select	240CSDP120X	240	M20	240S	21	91.4	37.8	38.5	36	19	4.9	10
Select	300CSDP110X	300	M10	300S	24.5	97.2	43.9	39	38	19.5	5.4	10
Select	300CSDP112X	300	M12	300S	24.5	97.2	43.9	39	38	19.5	5.4	10
Select	300CSDP114X	300	M14	300S	24.5	97.2	43.9	39	38	19.5	5.4	10
Select	300CSDP116X	300	M16	300S	24.5	97.2	43.9	39	38	19.5	5.4	10
Select	300CSDP120X	300	M20	300S	24.5	97.2	43.9	39	38	19.5	5.4	10
Select	400CSDP112X	400	M12	400S	27	102.8	47.4	39	40	19.5	4.9	5
Select	400CSDP114X	400	M14	400S	27	102.8	47.4	39	40	19.5	4.9	5
Select	400CSDP116X	400	M16	400S	27	102.8	47.4	39	40	19.5	4.9	5
Select	400CSDP120X	400	M20	400S	27	102.8	47.4	39	40	19.5	4.9	5
Select	500CSDP112X	500	M12	500S	30	116.2	52.7	46	47.5	23	5.9	1
Select	500CSDP114X	500	M14	500S	30	116.2	52.7	46	47.5	23	5.9	1
Select	500CSDP116X	500	M16	500S	30	116.2	52.7	46	47.5	23	5.9	1
Select	500CSDP120X	500	M20	500S	30	116.2	52.7	46	47.5	23	5.9	1
Select	630CSDP112X	630	M12	630S	35.5	145.8	64.5	61.5	60	30.8	8.2	1
Select	630CSDP114X	630	M14	630S	35.5	145.8	64.5	61.5	60	30.8	8.2	1
Select	630CSDP116X	630	M16	630S	35.5	145.8	64.5	61.5	60	30.8	8.2	1
Select	630CSDP120X	630	M20	630S	35.5	145.8	64.5	61.5	60	30.8	8.2	1
