CSDP2-X Cable Lug

ETIM Classification

EC001051

Standard Duty Metric Copper Compression Cable Lug - Parallel Entry Standard Barrel with 2 Stud Holes - No Inspection Window

Description

These products have been designed and third party certified to IEC 61238-1 Class B, for high quality and reliable crimping. Manufactured from high purity, oxygen-free, seamless copper tube (C110/CW009A), these cable lugs are precisely dimensioned to achieve optimal crimping with suitable conductors. The lugs are annealed to enhance durability, minimising risk of fracture between the palm and barrel. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection. No inspection window to prevent moisture ingress for outdoor applications; inspection window can be added as an option - see data sheet CSDP2. The centres of the two stud holes are detailed in the dimensional table. Custom stud hole dimensions are available on request.

Features

Stud hole centre dimensions standardised at 44.5 mm
Sizes to suit conductors as per EN 60228 cables; 10 mm² up to 630 mm²
Third Party Certified to IEC 61238-1 Class B
Tested to UL 486A-486B
Manufactured from high purity (99.9%) copper seamless tube (BS EN 13600)
Annealed and electrolytically tin plated for reliable crimping, with oxidation and corrosion resistance
No inspection window to enhance ingress protection for outdoor applications
Clear marking for quick selection
CMP crimping die available for optimal crimping
Bevelled entry to aid conductor insertion
Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
Crimping die index numbers match CSA or wire size; refer to CMP compatible die chart for more information

Additional Information

Certificates

Product Selector

Refine by part number

Conductor Material
Connection Type
Entry Type
Palm Angle
Barrel Type
Conductor Size
Hole/Stud size

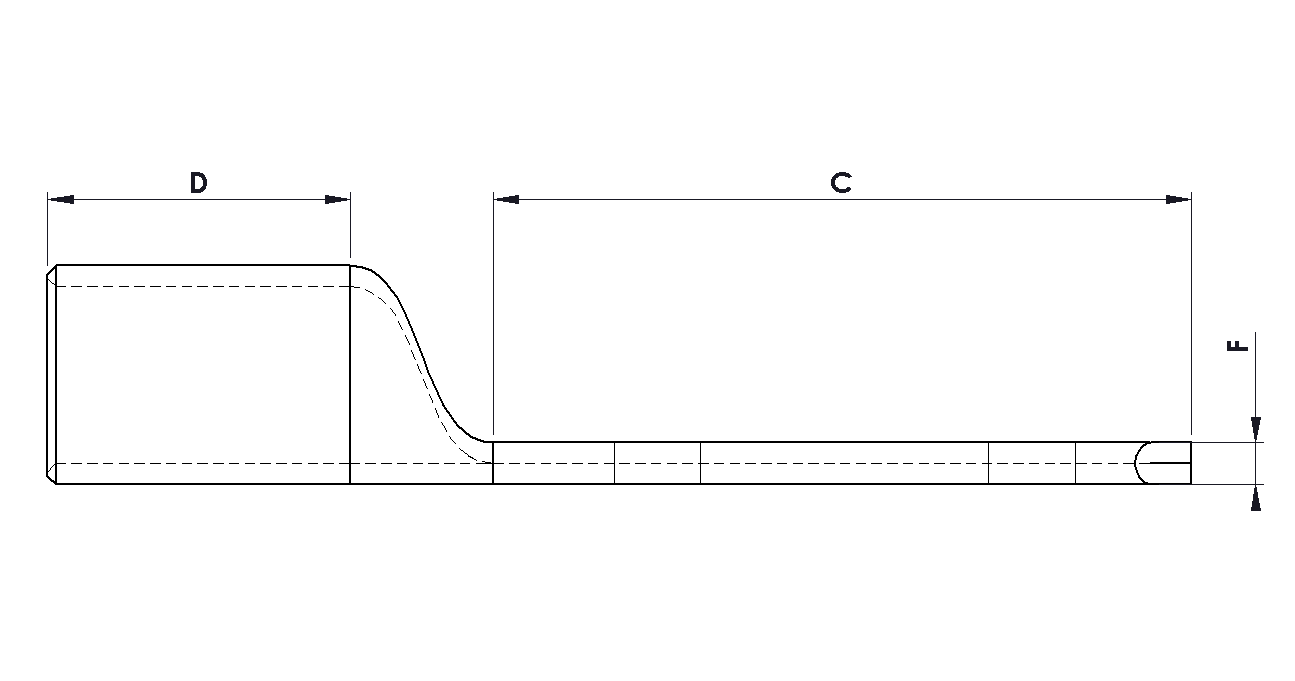

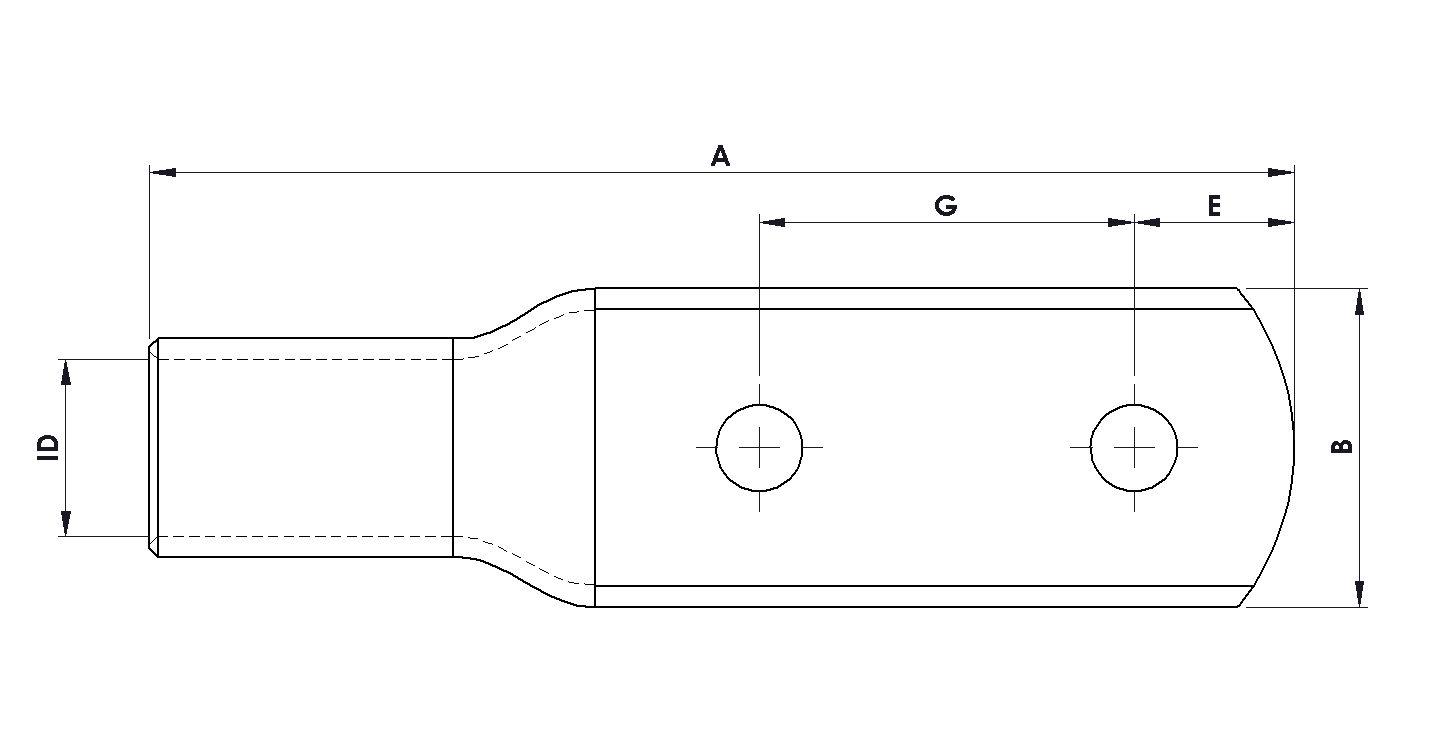

	Part Number	Cable Size (mm²)	Hole Stud Size	Die Index No.	Internal Diameter (ID)	Overall Length (A)	Palm Width (B)	Palm Length (C)	Barrel Length (D)	Stud Hole Distance (E)	Palm Thickness (F)	Stud Hole Spacing (G)	Pack Qty
Select	010CSDP205X	10	M5	10S	4.5	72.5	10.5	58	10	6.5	1.6	44.5	100
Select	010CSDP206X	10	M6	10S	4.5	72.5	10.5	58	10	6.5	1.6	44.5	100
Select	010CSDP208X	10	M8	10S	4.5	75	12.5	60.5	10	6.5	1.4	44.5	100
Select	010CSDP210X	10	M10	10S	4.5	79	14.5	64.5	10	8.5	1.2	44.5	100
Select	010CSDP212X	10	M12	10S	4.5	81	16.5	66.5	10	9	1.0	44.5	100
Select	016CSDP205X	16	M5	16S	5.5	74.7	11	58	13	6.5	1.9	44.5	100
Select	016CSDP206X	16	M6	16S	5.5	74.7	11	58	13	6.5	1.9	44.5	100
Select	016CSDP208X	16	M8	16S	5.5	77.2	12.5	60.5	13	6.5	1.6	44.5	100
Select	016CSDP210X	16	M10	16S	5.5	81.4	14.5	64.5	13	8.5	1.4	44.5	100
Select	016CSDP212X	16	M12	16S	5.5	83.4	16.5	66.5	13	9	1.2	44.5	100
Select	025CSDP205X	25	M5	25S	6.8	76.7	13.1	58	13	6.5	1.9	44.5	100
Select	025CSDP206X	25	M6	25S	6.8	76.7	13.1	58	13	6.5	1.9	44.5	100
Select	025CSDP208X	25	M8	25S	6.8	80.2	13.1	61.5	13	6.5	1.9	44.5	100
Select	025CSDP210X	25	M10	25S	6.8	83.4	14.5	64.5	13	8.5	1.7	44.5	100
Select	025CSDP212X	25	M12	25S	6.8	85.4	16.5	66.5	13	9	1.5	44.5	100
Select	035CSDP205X	35	M5	35S	8.2	81.1	15.8	60.5	14	8	2.2	44.5	100
Select	035CSDP206X	35	M6	35S	8.2	81.1	15.8	60.5	14	8	2.2	44.5	100
Select	035CSDP208X	35	M8	35S	8.2	82.1	15.8	61.5	14	8	2.2	44.5	100
Select	035CSDP210X	35	M10	35S	8.2	85	16.2	64.5	14	8.5	2.2	44.5	100
Select	035CSDP212X	35	M12	35S	8.2	89	18.6	68.5	14	9	1.9	44.5	100
Select	050CSDP206X	50	M6	50S	9.6	84.7	17.6	61.5	17	8.5	2.3	44.5	50
Select	050CSDP208X	50	M8	50S	9.6	85.7	17.6	62.5	17	8.5	2.3	44.5	50
Select	050CSDP210X	50	M10	50S	9.6	87.7	17.6	64.5	17	10	2.3	44.5	50
Select	050CSDP212X	50	M12	50S	9.6	90.7	18.7	67.5	17	10	2.2	44.5	50
Select	050CSDP214X	50	M14	50S	9.6	94.7	20.3	71.5	17	12	2.0	44.5	50
Select	050CSDP216X	50	M16	50S	9.6	97.3	22	74	17	14	1.9	44.5	50
Select	070CSDP206X	70	M6	70S	12	94.9	21.8	66.5	19	11	2.9	44.5	50
Select	070CSDP208X	70	M8	70S	12	94.9	21.8	66.5	19	11	2.9	44.5	50
Select	070CSDP210X	70	M10	70S	12	94.9	21.8	66.5	19	11	2.9	44.5	50
Select	070CSDP212X	70	M12	70S	12	96.9	21.8	68.5	19	11	2.9	44.5	50
Select	070CSDP214X	70	M14	70S	12	99.9	22.2	71.5	19	12	2.9	44.5	50
Select	070CSDP216X	70	M16	70S	12	102.4	22.2	74	19	12	2.9	44.5	50
Select	095CSDP208X	95	M8	95S	13.5	97.7	24.3	68	21	11.5	2.9	44.5	20
Select	095CSDP210X	95	M10	95S	13.5	97.7	24.3	68	21	11.5	2.9	44.5	20
Select	095CSDP212X	95	M12	95S	13.5	98.7	24.3	69	21	11.5	2.9	44.5	20
Select	095CSDP214X	95	M14	95S	13.5	102.3	24.3	72.5	21	13	2.9	44.5	20
Select	095CSDP216X	95	M16	95S	13.5	103.8	24.3	74	21	13	2.9	44.5	20
Select	095CSDP220X	95	M20	95S	13.5	112.6	28	82.5	21	18	2.5	44.5	20
Select	120CSDP208X	120	M8	120S	15	103.6	27.5	69.5	24	12.5	3.9	44.5	20
Select	120CSDP210X	120	M10	120S	15	103.6	27.5	69.5	24	12.5	3.9	44.5	20
Select	120CSDP212X	120	M12	120S	15	104.1	27.5	70	24	12.5	3.9	44.5	20
Select	120CSDP214X	120	M14	120S	15	108.5	27.5	74.5	24	15	3.9	44.5	20
Select	120CSDP216X	120	M16	120S	15	110.5	27.5	76.5	24	15	3.9	44.5	20
Select	120CSDP220X	120	M20	120S	15	116.6	28	82.5	24	18	3.8	44.5	20
Select	150CSDP210X	150	M10	150S	16.5	110.8	30.3	72.5	26.5	14	3.8	44.5	15
Select	150CSDP212X	150	M12	150S	16.5	110.8	30.3	72.5	26.5	14	3.8	44.5	15
Select	150CSDP214X	150	M14	150S	16.5	112.8	30.3	74.5	26.5	14	3.8	44.5	15
Select	150CSDP216X	150	M16	150S	16.5	114.7	30.3	76.5	26.5	19	3.8	44.5	15
Select	150CSDP220X	150	M20	150S	16.5	120.7	30.3	82.5	26.5	19	3.8	44.5	15
Select	185CSDP210X	185	M10	185S	19	119.4	34	74.5	30	15	3.9	44.5	15
Select	185CSDP212X	185	M12	185S	19	119.4	34	74.5	30	15	3.9	44.5	15
Select	185CSDP214X	185	M14	185S	19	119.4	34	74.5	30	15	3.9	44.5	15
Select	185CSDP216X	185	M16	185S	19	123.2	34	78.5	30	17	3.9	44.5	15
Select	185CSDP220X	185	M20	185S	19	127.2	34	82.5	30	17	3.9	44.5	15
Select	240CSDP210X	240	M10	240S	21	135.9	37.8	83	36	19	4.9	44.5	5
Select	240CSDP212X	240	M12	240S	21	135.9	37.8	83	36	19	4.9	44.5	5
Select	240CSDP214X	240	M14	240S	21	135.9	37.8	83	36	19	4.9	44.5	5
Select	240CSDP216X	240	M16	240S	21	135.9	37.8	83	36	19	4.9	44.5	5
Select	240CSDP220X	240	M20	240S	21	135.9	37.8	83	36	19	4.9	44.5	5
Select	300CSDP210X	300	M10	300S	24.5	141.7	43.9	83.5	38	19.5	5.4	44.5	1
Select	300CSDP212X	300	M12	300S	24.5	141.7	43.9	83.5	38	19.5	5.4	44.5	1
Select	300CSDP214X	300	M14	300S	24.5	141.7	43.9	83.5	38	19.5	5.4	44.5	1
Select	300CSDP216X	300	M16	300S	24.5	141.7	43.9	83.5	38	19.5	5.4	44.5	1
Select	300CSDP220X	300	M20	300S	24.5	141.7	43.9	83.5	38	19.5	5.4	44.5	1
Select	400CSDP212X	400	M12	400S	27	147.3	47.4	83.5	40	19.5	4.9	44.5	1
Select	400CSDP214X	400	M14	400S	27	147.3	47.4	83.5	40	19.5	4.9	44.5	1
Select	400CSDP216X	400	M16	400S	27	147.3	47.4	83.5	40	19.5	4.9	44.5	1
Select	400CSDP220X	400	M20	400S	27	147.3	47.4	83.5	40	19.5	4.9	44.5	1
Select	500CSDP212X	500	M12	500S	30	160.7	52.7	90.5	47.5	23	5.9	44.5	1
Select	500CSDP214X	500	M14	500S	30	160.7	52.7	90.5	47.5	23	5.9	44.5	1
Select	500CSDP216X	500	M16	500S	30	160.7	52.7	90.5	47.5	23	5.9	44.5	1
Select	500CSDP220X	500	M20	500S	30	160.7	52.7	90.5	47.5	23	5.9	44.5	1
Select	630CSDP212X	630	M12	630S	35.5	190.3	64.5	106	60	30.75	8.2	44.5	1
Select	630CSDP214X	630	M14	630S	35.5	190.3	64.5	106	60	30.75	8.2	44.5	1
Select	630CSDP216X	630	M16	630S	35.5	190.3	64.5	106	60	30.75	8.2	44.5	1
Select	630CSDP220X	630	M20	630S	35.5	190.3	64.5	106	60	30.75	8.2	44.5	1
