Heavy Duty Metric Copper Compression Splice Connector Parallel Entry

Description

These products have been designed and third party certified to IEC 61238-1 Class A, for high quality and reliable crimping. Manufactured from high purity, oxygen-free, seamless copper tube (C110/CW009A), these splice connectors are precisely dimensioned to achieve optimal crimping with suitable conductors. The splice connectors are annealed to enhance durability, minimising risk of fracture. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection.

Features

Sizes to suit conductors as per EN 60228 cables; 1.5 mm² up to 1,000 mm²
Third Party Certified to IEC 61238-1 Class A
Manufactured from high purity (99.9%) copper seamless tube (BS EN 13600)
Annealed and electrolytically tin plated for reliable crimping, with oxidation and corrosion resistance
CMP crimping die available for optimal crimping
Bevelled entry to aid conductor insertion
Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
Crimping die index numbers match wire size; refer to CMP compatible die chart for more information

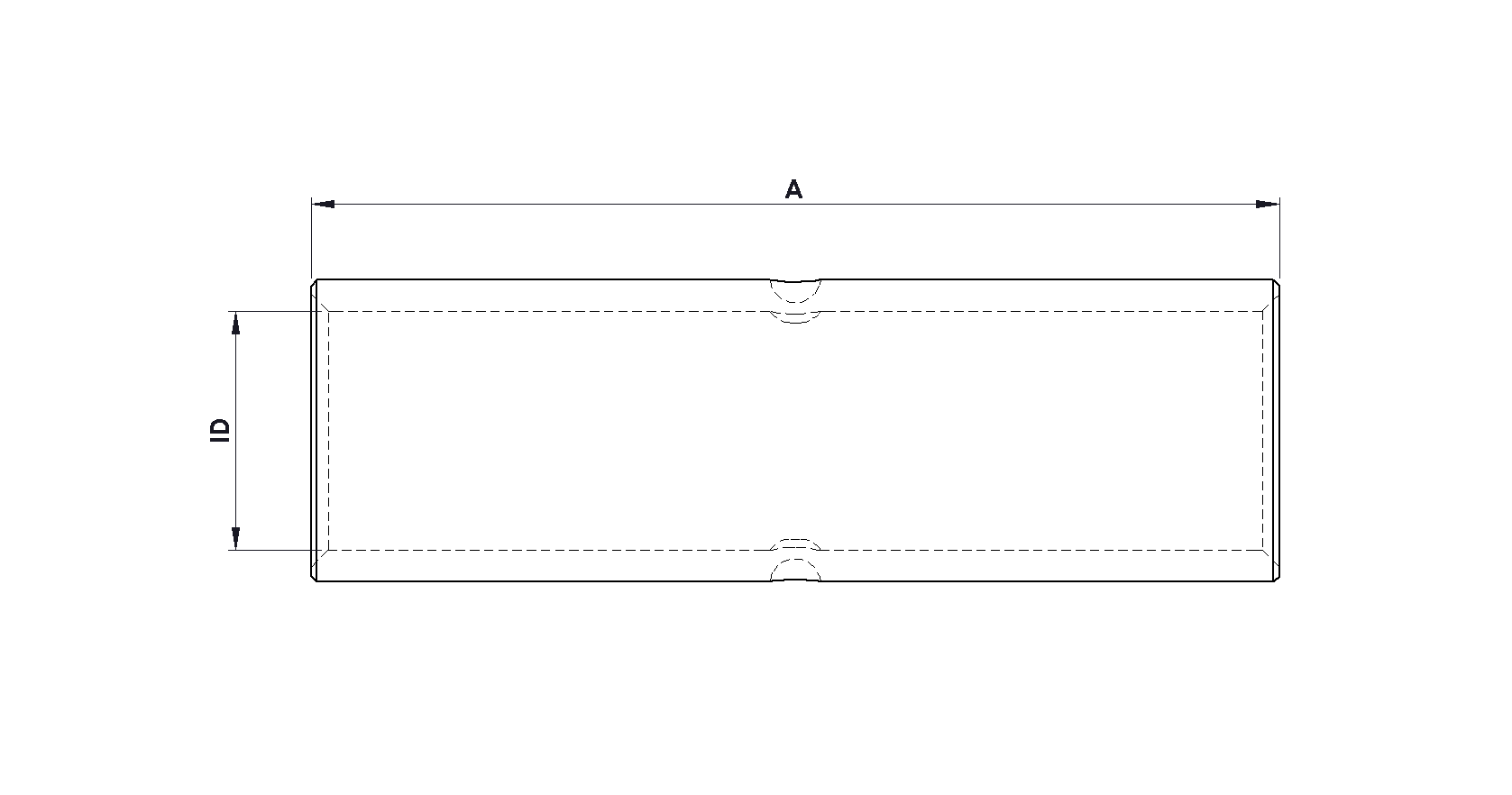

	Part Number	Cable Size (mm²)	Die Index No.	Internal Diameter (ID)	Overall Length (A)	Pack Qty
Select	0015CSHD015	1.5	N/A	1.8	15	100
Select	0015CSHD016	1.5	N/A	1.8	16	100
Select	0015CSHD022	1.5	N/A	1.8	22	100
Select	0015CSHD025	1.5	N/A	1.8	25	100
Select	0025CSHD015	2.5	N/A	2.4	15	100
Select	0025CSHD018	2.5	N/A	2.4	18	100
Select	0025CSHD022	2.5	N/A	2.4	22	100
Select	0025CSHD025	2.5	N/A	2.4	25	100
Select	004CSHD015	4	N/A	3.1	15	100
Select	004CSHD020	4	N/A	3.1	20	100
Select	004CSHD025	4	N/A	3.1	25	100
Select	006CSHD015	6	06H	3.8	15	100
Select	006CSHD022	6	06H	3.8	22	100
Select	006CSHD025	6	06H	3.8	25	100
Select	010CSHD020	10	10H	4.7	20	100
Select	010CSHD022	10	10H	4.7	22	100
Select	010CSHD025	10	10H	4.7	25	100
Select	010CSHD030	10	10H	4.7	30	100
Select	016CSHD020	16	16H	5.5	20	100
Select	016CSHD035	16	16H	5.5	35	100
Select	025CSHD032	25	25H	6.8	32	100
Select	025CSHD035	25	25H	6.8	35	100
Select	025CSHD040	25	25H	6.8	40	100
Select	035CSHD036	35	35H	8.2	36	100
Select	035CSHD038	35	35H	8.2	38	100
Select	035CSHD045	35	35H	8.2	45	100
Select	050CSHD040	50	50H	9.5	40	50
Select	050CSHD047	50	50H	9.5	47	50
Select	050CSHD050	50	50H	9.5	50	50
Select	070CSHD040	70	70H	11.2	40	50
Select	070CSHD045	70	70H	11.2	45	50
Select	070CSHD050	70	70H	11.2	50	50
Select	070CSHD055	70	70H	11.2	55	50
Select	095CSHD045	95	95H	13.5	45	25
Select	095CSHD050	95	95H	13.5	50	25
Select	095CSHD060	95	95H	13.5	60	25
Select	120CSHD045	120	120H	15	45	25
Select	120CSHD065	120	120H	15	65	25
Select	150CSHD055	150	150H	16.5	55	25
Select	150CSHD065	150	150H	16.5	65	25
Select	185CSHD065	185	185H	18.5	65	15
Select	185CSHD075	185	185H	18.5	75	15
Select	240CSHD080	240	240H	21	80	15
Select	240CSHD085	240	240H	21	85	15
Select	240CSHD089	240	240H	21	89	15
Select	300CSHD085	300	300H	23.5	85	10
Select	300CSHD090	300	300H	23.5	90	10
Select	400CSHD090	400	400H	26.8	90	5
Select	400CSHD100	400	400H	26.8	100	5
Select	500CSHD100	500	500H	30	100	1
Select	500CSHD110	500	500H	30	110	1
Select	630CSHD110	630	630H	35	110	1
Select	630CSHD120	630	630H	35	120	1
Select	800CSHD150	800	800H	39	150	1
Select	1000CSHD170	1000	1000H	43	170	1
