CSHDF Cable Lug - CMP Products

Heavy Duty Metric Copper Compression Splice Connector Flared Entry

Description

These flared entry products have been designed and third party certified to IEC 61238-1 Class A, for high quality and reliable crimping. Manufactured from high purity, oxygen-free, seamless copper tube (C110/CW009A), these splice connectors are precisely dimensioned to achieve optimal crimping with suitable conductors. The splice connectors are annealed to enhance durability, minimising risk of fracture. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection.

Features

Sizes to suit conductors as per EN 60228 cables; 1.5 mm² up to 1,000 mm²
Third Party Certified to IEC 61238-1 Class A
Manufactured from high purity (99.9%) copper seamless tube (BS EN 13600)
Annealed and electrolytically tin plated for reliable crimping, with oxidation and corrosion resistance
CMP crimping die available for optimal crimping
Flared entry to barrel for ease of conductor insertion; beneficial for class 5 and 6 conductors
Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
Crimping die index numbers match wire size; refer to CMP compatible die chart for more information

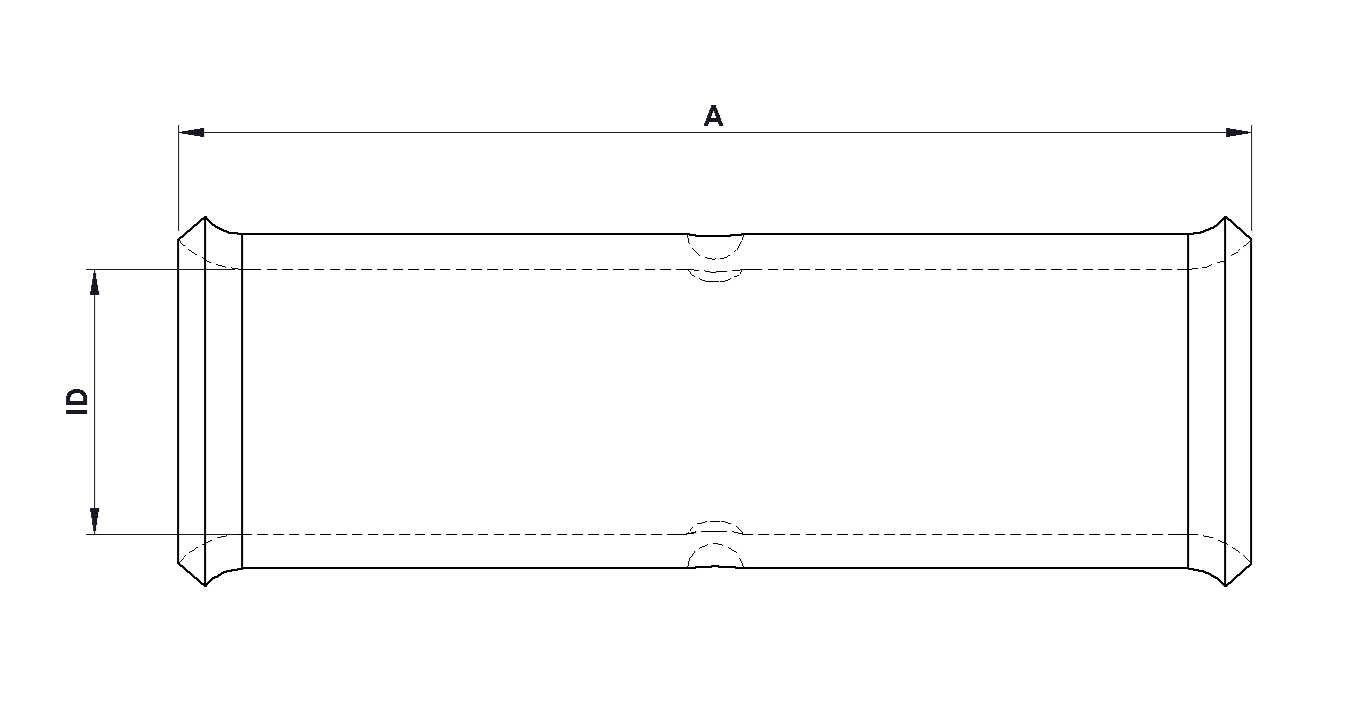

	Part Number	Cable Size (mm²)	Die Index No.	Internal Diameter (ID)	Overall Length (A)	Pack Qty
Select	0015CSHDF015	1.5	N/A	1.8	15	100
Select	0015CSHDF016	1.5	N/A	1.8	16	100
Select	0015CSHDF022	1.5	N/A	1.8	22	100
Select	0015CSHDF025	1.5	N/A	1.8	25	100
Select	0025CSHDF015	2.5	N/A	2.4	15	100
Select	0025CSHDF018	2.5	N/A	2.4	18	100
Select	0025CSHDF022	2.5	N/A	2.4	22	100
Select	0025CSHDF025	2.5	N/A	2.4	25	100
Select	004CSHDF015	4	N/A	3.1	15	100
Select	004CSHDF020	4	N/A	3.1	20	100
Select	004CSHDF025	4	N/A	3.1	25	100
Select	006CSHDF015	6	06H	3.8	15	100
Select	006CSHDF022	6	06H	3.8	22	100
Select	006CSHDF025	6	06H	3.8	25	100
Select	010CSHDF020	10	10H	4.7	20	100
Select	010CSHDF022	10	10H	4.7	22	100
Select	010CSHDF025	10	10H	4.7	25	100
Select	010CSHDF030	10	10H	4.7	30	100
Select	016CSHDF020	16	16H	5.5	20	100
Select	016CSHDF035	16	16H	5.5	35	100
Select	025CSHDF032	25	25H	6.8	32	100
Select	025CSHDF035	25	25H	6.8	35	100
Select	025CSHDF040	25	25H	6.8	40	100
Select	035CSHDF036	35	35H	8.2	36	100
Select	035CSHDF038	35	35H	8.2	38	100
Select	035CSHDF045	35	35H	8.2	45	100
Select	050CSHDF040	50	50H	9.5	40	50
Select	050CSHDF047	50	50H	9.5	47	50
Select	050CSHDF050	50	50H	9.5	50	50
Select	070CSHDF040	70	70H	11.2	40	50
Select	070CSHDF045	70	70H	11.2	45	50
Select	070CSHDF050	70	70H	11.2	50	50
Select	070CSHDF055	70	70H	11.2	55	50
Select	095CSHDF045	95	95H	13.5	45	25
Select	095CSHDF050	95	95H	13.5	50	25
Select	095CSHDF060	95	95H	13.5	60	25
Select	120CSHDF045	120	120H	15	45	25
Select	120CSHDF065	120	120H	15	65	25
Select	150CSHDF055	150	150H	16.5	55	25
Select	150CSHDF065	150	150H	16.5	65	25
Select	185CSHDF065	185	185H	18.5	65	15
Select	185CSHDF075	185	185H	18.5	75	15
Select	240CSHDF080	240	240H	21	80	15
Select	240CSHDF085	240	240H	21	85	15
Select	240CSHDF089	240	240H	21	89	15
Select	300CSHDF085	300	300H	23.5	85	10
Select	300CSHDF090	300	300H	23.5	90	10
Select	400CSHDF090	400	400H	26.8	90	5
Select	400CSHDF100	400	400H	26.8	100	5
Select	500CSHDF100	500	500H	30	100	1
Select	500CSHDF110	500	500H	30	110	1
Select	630CSHDF110	630	630H	35	110	1
Select	630CSHDF120	630	630H	35	120	1
Select	800CSHDF150	800	800H	39	150	1
Select	1000CSHDF170	1000	1000H	43	170	1
