CSP Cable Lug

ETIM Classification

EC001051

Heavy Duty Copper Compression Splice Connector Parallel Entry

Description

These products have been designed and third party certified to UL 486A-486B and CSA C22.2 No. 65, for high quality and reliable crimping. Manufactured from high purity, oxygen-free, seamless copper tube (C110/CW009A), these splice connectors are precisely dimensioned to achieve optimal crimping with suitable conductors. The splice connectors are annealed to enhance durability, minimising risk of fracture. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection.

Features

  • Sizes to suit conductors 8 AWG to 1,000 kcmil
  • Third Party Certified to UL 486A-486B and CSA C22.2 No. 65
  • Manufactured from high purity (99.9%) copper seamless tube (BS EN 13600)
  • Annealed and electrolytically tin plated for reliable crimping, with oxidation and corrosion resistance
  • Colour coded with enhanced marking on the barrel for simple die selection, inspection and traceability
  • Specific designed CMP crimping die range
  • Bevelled entry to aid conductor insertion
  • Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
  • Crimping die index numbers match wire size; refer to CMP compatible die chart for more information

Additional Information

Certification
CSA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/95c6667c/686f8d1021676f0b5e0002d4/CSA.png
cULus Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/085aa78a/67bec66a244c9860a59ae4aa/CULUS-approved.png
Technical Specification
Entry Type Parallel
Lugs Material Tin Plated Copper
Splice Material Copper
Temperature Rating Up to 90 Degrees Celsius

Downloads

Certificates

Product Selector

1

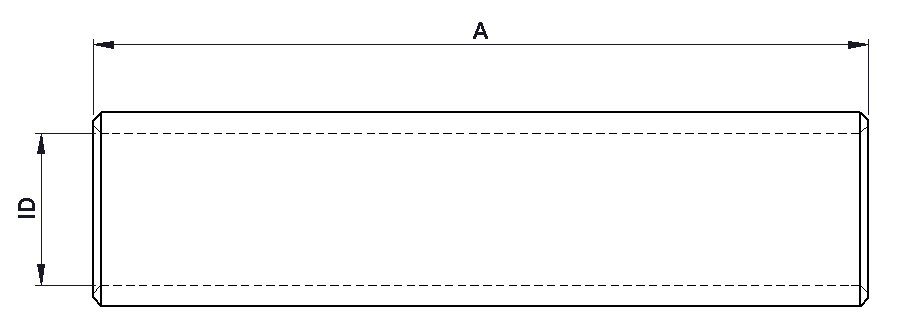

Part Number Cable Size (AWG/MCM/kcmil) Flex Cable Size (AWG/MCM/kcmil) Die Index No. Internal Diameter (ID) Internal Diameter (ID) - Inches Overall Length (A) Overall Length (A) - Inches Pack Qty
8CSP090 8 8 08 4.4 0.17 22.9 0.9 100
8CSP175 8 8 08 4.4 0.17 44.5 1.75 100
6CSP100 6 6 06 5.2 0.2 25.4 1 100
6CSP175 6 6 06 5.2 0.2 44.5 1.75 100
4CSP100 4 - 04 6.4 0.25 25.4 1 100
4CSP175 4 - 04 6.4 0.25 44.5 1.75 100
3CSP125 3 4 03 7 0.28 31.8 1.25 75
3CSP190 3 4 03 7 0.28 48.3 1.9 75
2CSP125 2 4 02 8 0.31 31.8 1.25 75
2CSP190 2 4 02 8 0.31 48.3 1.9 75
1CSP180 1 2 01 9.1 0.36 45.7 1.8 50
1CSP220 1 2 01 9.1 0.36 55.9 2.2 50
10CSP160 1/0 1 10 9.9 0.39 40.6 1.6 50
10CSP220 1/0 1 10 9.9 0.39 55.9 2.2 50
20CSP175 2/0 1/0 20 11.2 0.44 44.5 1.75 50
20CSP225 2/0 1/0 20 11.2 0.44 57.2 2.25 50
30CSP175 3/0 2/0 30 12.5 0.49 44.5 1.75 25
30CSP225 3/0 2/0 30 12.5 0.49 57.2 2.25 25
40CSP190 4/0 3/0 40 13.9 0.55 48.3 1.9 25
40CSP275 4/0 3/0 40 13.9 0.55 69.9 2.75 25
250CSP200 250 4/0 250 15.1 0.59 50.8 2 15
250CSP325 250 4/0 250 15.1 0.59 82.6 3.25 15
300CSP210 300 250 G,H 300 16.7 0.66 53.3 2.1 15
300CSP350 300 250 G,H 300 16.7 0.66 89 3.5 15
350CSP210 350 250 G,H,I,K,M 262 DLO 350 17.8 0.7 53.3 2.1 10
350CSP375 350 250 G,H,I,K,M 262 DLO 350 17.8 0.7 95.3 3.75 10
400CSP230 400 300 G,H,I,K,M 313 DLO 400 19.4 0.76 58.4 2.3 5
400CSP375 400 300 G,H,I,K,M 313 DLO 400 19.4 0.76 95.3 3.75 5
500CSP250 500 350 G,H,I,K,M 373 DLO 500 21.2 0.83 63.5 2.5 5
500CSP425 500 350 G,H,I,K,M 373 DLO 500 21.2 0.83 108 4.25 5
600CSP250 600 400 G,H,I,K,M 444 DLO 600 23.5 0.93 63.5 2.5 5
600CSP450 600 400 G,H,I,K,M 444 DLO 600 23.5 0.93 114.3 4.5 5
700CSP287 700 500 G,H,I,K,M 535 DLO 700 25 0.98 73 2.87 1
750CSP320 750 600 G,H,I 646 DLO 750 26.2 1.03 81.3 3.2 1
750CSP475 750 600 G,H,I 646 DLO 750 26.2 1.03 120.7 4.75 1
1000CSP370 1000 750 G,H,I 777 DLO 1000 30.2 1.19 94 3.7 1
1000CSP612 1000 750 G,H,I 777 DLO 1000 30.2 1.19 155.5 6.12 1
